Creating Reports

Complete the following steps to create a new report.

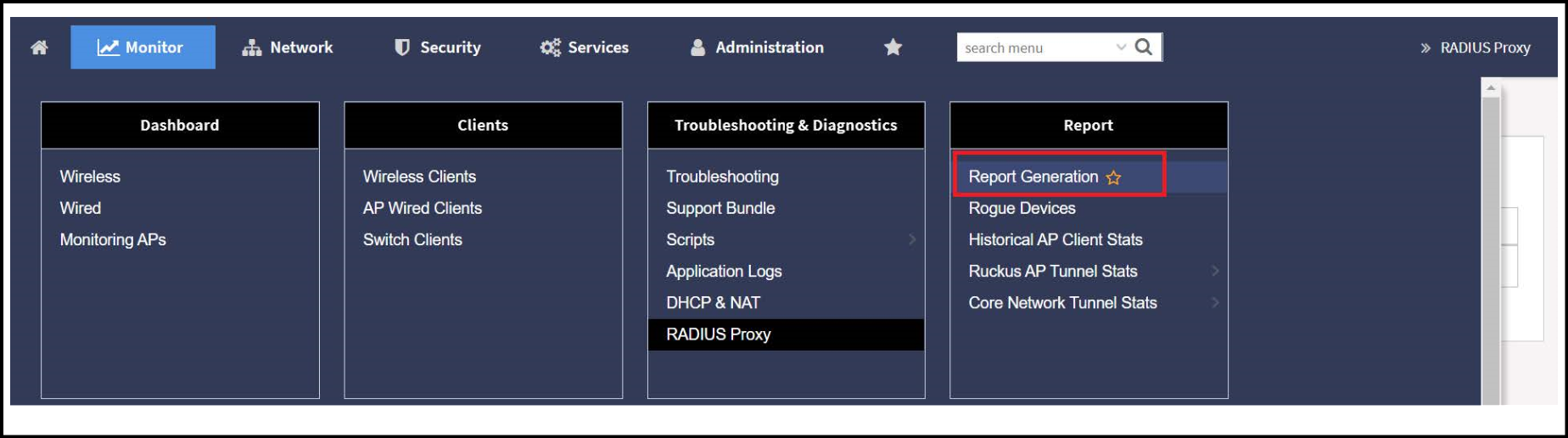

1. From the main menu, go to Monitor>Report >Report Generation.

   The Report Generation page is displayed.

   Report Generation Screen


2. Click Create. The Create Report dialog box is displayed.
   SZ 5.1 update

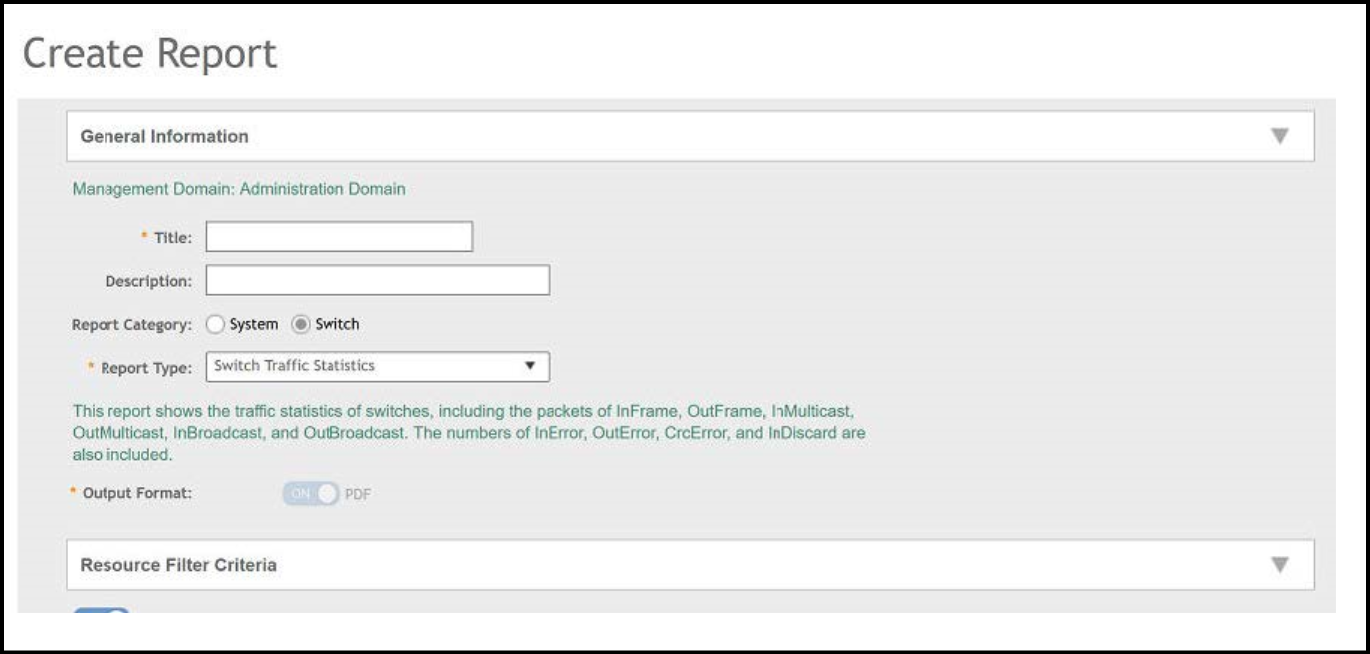

   Create Report Dialog Box


3. Enter the required parameters as described in the following table.

   Report Parameters

   Field	Description	Your Action
   General Information
   Title	Indicates the report name.	Enter a title for the report.
   Description	Describes the report type.	Enter a short description.
   Report Category	Provides an option to generate reports for system or switch devices in the network.	Select System or Switch as appropriate.
   Report Type	Specifies the report type.	Select the required report type.
   Output Format	Specifies the report output format.	Select the required report output format.
   Resource Filter Criteria
   Device	Indicates the level of resource filtering for which you want to generate the report; for example, Management Domains, AP Zone or Access Point (if you select the System option), and Switch.	Enter the device or switch name or select the device or switch from the list and select the option.
   SSID	Indicates the SSID for which you want to generate the report.	Select the check box and select the SSID for which you want the report. You can select All SSIDs to generate reports for all the SSIDs available. This option is convenient because you do not have to update the resource filter criteria periodically.
   Radio	Indicates the frequency for which you want to generate the report.	Select the check box and select the required frequency: 2.4G 5G 6GHz/5GHz
   Time Filter
   Time Interval	Defines the time interval at which to generate the report.	Select the required time interval.
   Time Filter	Defines the time duration for which to generate the report.	Select the required time filter.
   Schedules
   Enable/Disable	Specifies the scheduled time when a report must be generated. By default, the current system time zone is also displayed.	By default, this option is disabled. Select Enable and Interval, Hour, and Minute. You can add multiple schedules. You can also click Add New to include more schedules.
   Email Notification
   Enable/Disable	Triggers an email notification when the report is generated.	By default, this option is disabled. Select Enable, click Add New, and enter the email address. You can add multiple email addresses.
   Export Report Results
   Enable/Disable	Automatically uploads the reports to an FTP server.	By default, this option is disabled. Select Enable, and select the FTP server from the drop-down list and click Test.

4. Click OK.
