Creating an AP MAC OUI Address

To create the MAC OUI address for an AP, perform the following -
  1. Go to System > AP Settings > AP MAC OUI Validation.
  2. To turn ON, click Enable AP MAC OUI Validation radio button.

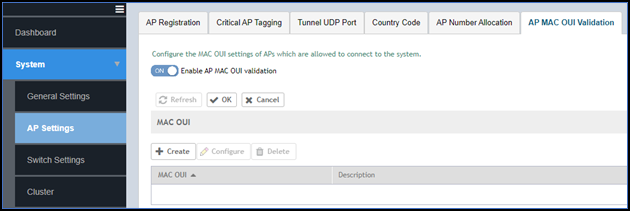

    AP MAC OUI Validation

  3. Under MAC OUI section, click Create. This displays Create MAC OUI window.

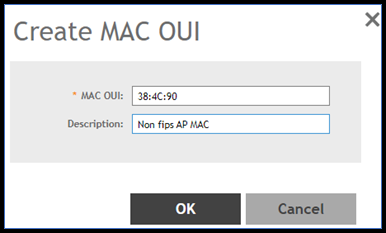

    Create MAC OUI

  4. Enter the MAC OUI.
  5. Click OK.
Parent topic: AP Provisioning and Swapping
