Creating an AP Zone

An AP zone functions as a way of grouping RUCKUS wireless APs and applying settings and WLAN services to these groups.
rephrased the short description per Orlando's reivew comments.

To create an AP zone, complete the following steps:

  1. On the menu, click Network > Wireless > Access Point.
  2. From the System tree hierarchy, select the location where you want to create the zone (for example, System or Domain), and click .

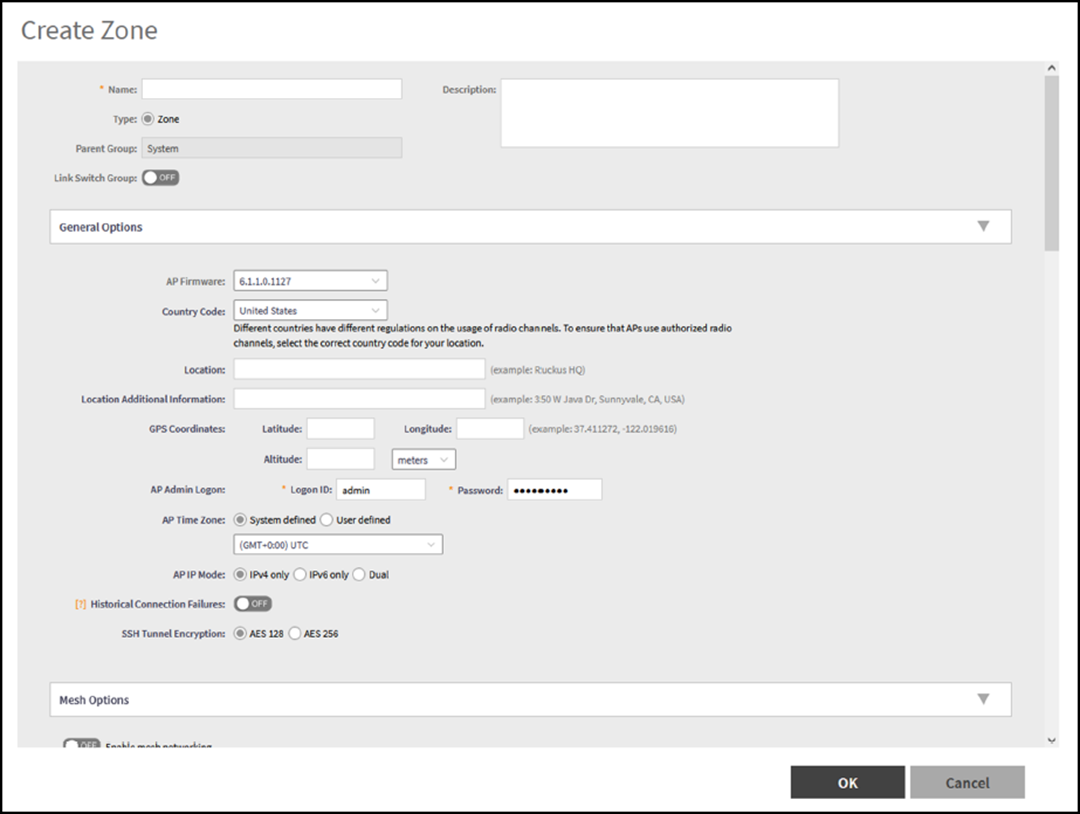

    Create Zone Page

  3. Configure the zone by completing the settings listed in the following table:

    AP Zone Details for vSZ-H platform

    Field Description Your Action
    Name Indicates the name of the zone or an AP group. Enter a name.
    Description Indicates the short description assigned to the zone or AP group. Enter a brief description
    Type Indicates if you are creating a domain, zone, or an AP group. Appears by default. You can also choose the option.
    Parent Group Indicates the parent AP group. Appears by default.
    Link Switch Group Allows to create a link between the switch group and an AP. You can enable or disable the option. When the link state is enabled, you can modify the name and description of the switch group, the AP zone will change accordingly.

    When the link is disabled, the AP zone and switch group no longer share same name and description, but the link between them still exists.

    To delete the link, modify the name of AP zone or switch group. After successful deletion of the link, the Link AP Zone option is unavailable.

    General Options
    AP Firmware Indicates the firmware to which it applies. Select the firmware.
    Country Code Indicates the country code. Using the correct country code helps ensure that APs use only authorized radio channels. Select the country code.
    Location Indicates the generic location. Enter the location.
    Location Additional Information Indicates detailed location. Enter additional location information.
    GPS Coordinates Indicates the geographical location. Enter the following coordinates:
    • Longitude
    • Latitude
    • Altitude
    AP Admin Logon Indicates the administrator logon credentials.
    7.0 patch 2
    Use the newly created password in accordance with the cybersecurity requirement.
    Note: Password for SNMP configuration must not include special characters $;&()|<>'`\
    Enter the Logon ID and Password.
    AP Time Zone Indicates the time zone that applies. Select a time zone, and enter the details as required.
    AP IP Mode Indicates the IP version that applies. Select the IP version. IPv6, IPv4, and dual addressing modes are supported.
    Historical Connection Failures Allows the zone APs to report client connection failures so that the administrator can view past connection problems from the Troubleshooting menu.
    Note: For enterprise profile (vSZ-E) is 5 days, for carrier profile (vSZ-H) is 3 days.
    Click the button.
    DP Group Specifies the group for the zone.
    Note: This option is supported only on vSZ-H.
    Select the DP group from the list.
    SSH Tunnel Encryption Specifies the encryption that reduces the load on controller control of SSH traffic. Select the required option:
    • AES 128
    • AES 256
    Cluster Redundancy Provides cluster redundancy option for the zone.
    Note: Cluster redundancy is supported only on vSZ-H.

    Select the required option:

    • Zone Enable
    • Zone Disable
    Mesh Options

    Note: Regardless of Single or Dual band, APs mesh with only there channel of radio which is in range.

    Enable mesh networking in this zone

    Enables managed APs to automatically form a wireless mesh network, in which participant nodes (APs) cooperate to route packets.

    Click the button.
    Zero Touch Mesh Enables a new AP to join the network using wireless connection. Click the button.
    Mesh Name (ESSID)

    Indicates the mesh name.

    Enter a name for the mesh network. Alternatively, do nothing to accept the default mesh name that the controller has generated.
    Mesh Passphrase

    Indicates the passphrase used by the controller to secure the traffic between Mesh APs.

    Enter a passphrase that contains at least 12 characters. Alternatively, click Generate to generate a random passphrase with 32 characters or more.
    Mesh Radio Option

    Indicates the channel range configured.

    Select the channel option:
    • 2.4GHz
    • 5GHz/6GHz

    Note: If APs do not support 6G radio but 6GHz is selected as the radio option, APs form the mesh on 5G radio instead of 6G.

    Radio Options
    Dual-5G Mode Enables third radio operator in 2.4 GHz, Lower 5 GHz, and Upper 5 GHz. By default, the Dual-5G Mode is enabled. In the enabled mode, radio-0 will be on 2.4GHz band, radio-1 will be on 5G Lower band and radio-2 will be on 5G Upper band.
    • 5G Lower BAND : UNII-1, UNII-2A
    • 5G Upper BAND : UNII-2C, UNII-3

    In the disabled mode, the radio-0 will be on 2.4GHz band, radio-1 will be on 5G band and radio-2 will be on 6G band. This also depends on the country code.

    Select or keep the default Dual-5G Mode option.
    Band/Spectrum Configuration > 2.4 GHz
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference. The Auto setting defaults to 20 MHz channelization. Set the channel bandwidth used during transmission to either 20 or 40 (MHz), or select Auto to set it automatically.

    Note: By default, for the Country Code Indonesia, the Channelization width is set to 20 MHz only for outdoor APs.

    Channel Indicates the channel to use. Select one of the options: Auto, 1, 6 or 11.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the 2.4 GHz radio. By default, the TX power is set to Full on the 2.4 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Protection Mode Indicates the mechanism to reduce frame collision. Choose one of the following options:
    • None
    • RTS/CTS
    • CTS Only
    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    Band/Spectrum Configuration > 5 GHz
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference.
    7.0 update
    Prior to SmartZone release 7.0.0, the Auto setting defaulted to 80 MHz channelization. Beginning in SmartZone release 7.0.0, the Auto setting defaults to 40 MHz channelization.
    Set the channel bandwidth used during transmission: Auto, 20, 40, 80 and 160.

    Note: By default, for the Country Code Indonesia, the Channelization width is set to 20 MHz only for outdoor APs.

    Channel Indicates the channel to use. Select the required options for the Indoor and Outdoor APs.
    Secondary Channel Indicates the secondary channel to used. By default, the Indoor and Outdoor option is set to Auto.
    Allow DFS Channels Allows ZoneFlex APs to use DFS channels. Click to enable the option.
    Allow Channel 144

    Provides channel 140 and 144 support for 11ac and 11ax APs. Enabling this option supports 20 MHz, 40 MHz, or 80 MHz channel modes. The 160 MHz mode is supported if the AP supports this mode. Disabling this option provides Channel 140 support only to 20 MHz mode.

    Note: This option is available for selection only if you enable the DFS Channels option.
    Note: This feature is currently supported only in the United States.
    Click to enable the option.
    Allow Indoor Channels Allows outdoor APs to use channels regulated as for indoor use only. Click to enable the option.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the 5 GHz radio. By default, the TX power is set to Full on the 5 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    Band/Spectrum Configuration > 6 GHz
    Note: This tab is available only if the Tri-band Dual-5G Mode option is not enabled.
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference.
    7.0 update
    The Auto setting defaults to 160 MHz channelization.
    Set the channel bandwidth used during transmission: Auto, 20, 40, 80, 160 and 320.
    Note: The 320 MHz-radio frequency is available only for the R770 AP 6 GHz radio frequency.
    Channel Indicates the channel to use.
    • In countries where only 6 GHz Indoor channels are permitted, the 6 GHz Outdoor channels are disabled.
    • If a country permits the use of 6GHz Indoor and Outdoor channels, the controller will provide the available channel ranges for both Indoor and Outdoor channels. For example, in the US, the available channel ranges are -
      • Indoor APs can operate in UNII-5,6,7,8
      • Outdoor APs can operate in UNII-5,7
    • You can choose channel options for Indoor and Outdoor channels. The default setting for both Indoor and Outdoor channels is Auto.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the 6 GHz radio. By default, the TX power is set to Full on the 6 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Enable AFC
    7.0 Patch 1

    The Enable AFC function acts as a communication agent between the controller and the AP. RUCKUS APs supporting the 6GHz band require AFC support to switch to Standard Power Mode. The Enable AFC button can be toggled when the country of the zone supports AFC. If AFC is enabled, the AP would send an AFC request to acquire permission to turn to standard power in the 6GHz band. If AFC permission is granted, then the AP could switch to Standard Power mode. Otherwise, indoor APs should remain in Low Power Mode, and outdoor APs will turn off the 6GHz band. Refer to the Enabling Automated Frequency Coordination from SmartZone for a comprehensive understanding of this feature.

    For the newly created zone, AFC will be enabled by default if the country permits it.

    For an existing zone, the Enable AFC feature will be disabled. You will need to manually select it.

    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    Band/Spectrum Configuration > Lower 5 GHz
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference.
    7.0 update
    Prior to SmartZone release 7.0.0, the Auto setting defaulted to 80 MHz channelization. Beginning in SmartZone release 7.0.0, the Auto setting defaults to 40 MHz channelization.
    Set the channel bandwidth used during transmission: Auto, 20, 40, 80 and 160.

    Note: By default, for the Country Code Indonesia, the Channelization width is set to 20 MHz only for outdoor APs.

    Channel Indicates the channel to use. Select the required options for the Indoor and Outdoor APs.
    Allow DFS Channels Allows ZoneFlex APs to use DFS channels. Click to enable the option.
    Allow Indoor Channels Allows outdoor APs to use channels regulated as for indoor use only. Click to enable the option.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the Lower 5 GHz radio. By default, the TX power is set to Full on the Lower 5 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    Band/Spectrum Configuration > Upper 5 GHz
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference.
    7.0 update
    Prior to SmartZone release 7.0.0, the Auto setting defaulted to 80 MHz channelization. Beginning in SmartZone release 7.0.0, the Auto setting defaults to 40 MHz channelization.
    Set the channel bandwidth used during transmission: Auto, 20, 40, 80 and 160.
    Channel Indicates the channel to use. Select the required options for the Indoor and Outdoor APs.
    Allow DFS Channels Allows ZoneFlex APs to use DFS channels. Click to enable the option.
    Allow Channel 144

    Provides channel 140 and 144 support for 11ac and 11ax APs. Enabling this option supports 20 MHz, 40 MHz, or 80 MHz channel modes. The 160 MHz mode is supported if the AP supports this mode. Disabling this option provides Channel 140 support only to 20 MHz mode.

    Note: This option is available for selection only if you enable the DFS Channels option.
    Note: This feature is currently supported only in the United States.
    Click to enable the option.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the Upper 5 GHz radio. By default, the TX power is set to Full on the Upper 5 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    AP GRE Tunnel Options
    Ruckus GRE Profile Indicates the GRE tunnel profile. Choose the GRE tunnel profile from the list.
    Ruckus GRE Forwarding Broadcast Forwards the broadcast traffic from network to tunnel. Click the option to enable forwarding broadcast.
    Soft GRE Profiles Indicates the SoftGRE profiles that you want to apply to the zone.
    1. Click the Select check box, a form is displayed.
    2. From the Available Profiles, select the profile and click the -> icon to choose it.

      You can also click the + icon to create a new SoftGRE profile.

    3. Click OK.
    IPsec Tunnel Mode Indicated the tunnel mode for the Ruckus GRE and SoftGRE profile. Select an option:
    • Disable
    • SoftGRE
    • Ruckus GRE
    IPsec Tunnel Profile Indicates the tunnel profile for SoftGRE.
    Note: Select the same tunnel type for IPsec tunnel profile in WLAN configuration.
    Choose the option from the drop-down.
    Syslog Options
    Enable external syslog server for APs Enables the AP to send syslog data to the syslog server on the network. Select the option.
    Config Type Allows to customize or select an external syslog server profile. Select the option:
    • Custom: Configure the details for the AP to send syslog messages to syslog server.
      Note: The IP address format that you enter here will depend on the AP IP mode that you selected earlier in this procedure. If you selected IPv4 Only, enter an IPv4 address. If you selected IPv6 Only, enter an IPv6 address.
      • Primary Server Address: If the primary server goes to send syslog messages.
        • Port: enter the syslog port number on the respective servers.
        • Protocol: select between UDP and TCP protocols.
      • Secondary Server Address: If the primary server goes down, the AP sends syslog messages to the secondary server as backup.
        • Port: Enter the syslog port number on the respective servers.
        • Protocol: Select between UDP and TCP protocols.
      • Event Facility: Select the facility level that will be used by the syslog message. Options include: Keep Original, Local0 (default), Local1, Local2, Local3, Local4, Local5, Local6, and Local7.
      • Priority: Select the lowest priority level for which events will be sent to the syslog server. For example, to only receive syslog messages for events with the warning (and higher) priority, select Warning. To receive syslog messages for all events, select All.
      • Send Logs: Select the type of messages to be sent to the syslog server. For example, General Logs, Client Logs or All Logs.
    • AP External Syslog Profile: Select the profile from the drop-down or click to create a new profile.
    AP SNMP Options
    Enable AP SNMP Indicates if the AP SNMP option is enabled. Select the check box.
    Config Type Enables custom or AP SNMP Profile Agent. Select the check box.
    • Custom: Select this option to create customized SNMPv2 and SNMPv3 profile agents.
    • AP SNMP Profile Agent: Select this option to create AP SNMPv2 and SNMPv3 profile agents directly.
    SNMPv2 Agent Indicates if the SNMPv2 agent is enabled. If the SNMPv2 agent is enabled, configure the community settings.
    1. Click Create and enter Community.
    2. Select the required Privilege. If you select Notification, enter the Target IP.
    3. Click OK.
    SNMPv3 Agent Indicates the SNMPv3 Agent is applied. If the SNMPv3 agent is enabled, configure the community settings.
    1. Click Create and enter User.
    2. Select the required Authentication.
    3. 7.0 patch 2
      Auth Pass Phrase: Use the newly created password in accordance with the cybersecurity requirement.
      Note: Password for SNMP configuration must not include special characters $;&()|<>'`\
    4. Select the Privacy option.
    5. Select the required Privilege. If you select Notification, select the option Trap or Inform and enter the Target IP and Target Port.
    6. Click OK.
    Advanced Options
    Restricted AP Access Profile
    Note: This feature is available from 5.2 release and onwards.
    Restricted AP Access blocks access to the AP's standard well know open ports to protect the APs and enhance their security. Select the Restricted AP Access profile from the drop-down. You can also create a new profile by clicking + icon.
    Note: By default this feature is disabled.
    Note: You can add maximum five Restricted AP Access profiles for a zone.
    Channel Mode Indicates if location-based service is enabled. If you want to allow indoor APs that belong to this zone to use wireless channels that are Channel Mode regulated as indoor-use only. Select the Allow indoor channels check box.
    Smart Monitor Indicates AP interval check and retry threshold settings. Select the check box and enter the interval and threshold.
    AP Ping Latency Interval Measures the latency between the controller and AP periodically, and sends this data to SCI. Enable by moving the button to ON to measure latency.
    AP Management VLAN Indicates the AP management VLAN settings. Choose the option. Click VLAN ID, and then type the VLAN ID that you want to assign (valid range is from 1 to 4094). To keep the same management VLAN ID that has been configured on the AP, click Keep AP's settings.
    Attention: For standalone APs, set the AP Ethernet port to trunk before changing the AP Management VLAN settings.
    Rogue AP Detection Indicates rogue AP settings.
    Note: Rogue detection AP in active-active mode cluster redundancy environment is restricted from storing its own BSSIDs to avoid considering its own APs as rogues attacking.
    Enable the option.
    Rogue Classification Policy Indicates the parameters used to classify rogue APs. This option is available only if you enable the Rogue AP Detection option.

    Select the options for rogue classification policy:

      • Enable events and alarms for all rogue devices
      • Enable events and alarms for malicious rogues only
    • Report RSSI Threshold: Enter the threshold. Range: 0 through 100.
    • Protect the network from malicious rogue access points: Enable the option and choose one of the following:
      • Aggressive
      • Auto
      • Conservative
    • Radio Jamming Detection: Enable the option and enter the Jamming Threshold in percentage.
    DoS Protection Indicates settings for blocking a client. Select the check box and enter the duration in seconds.
    Load Balancing Balances the number of clients or the available capacity across APs. Select the required option:
    • Based on Client Count: If this option is selected, Steering Mode and Sticky Client options are enabled.
      • Steering Mode - Controls the APs' steering behavior for load balancing. Select the option and use the slider to actively control associated stations to meet the distribution requirements allowing band balancing and load balancing:
        • Basic (default): During heavy load conditions, this option withholds probe and authentication responses in order to achieve load balance.
        • Proactive: This is a dynamic form of band balancing where some selected associated clients are rebalanced on the AP or across APs utilizing the 802.11v BTM. The AP sends a BTM message to the client to roam and it is left to the client's discretion to make its roaming decision.
        • Strict: This is an aggressive form of balancing where some selected associated clients are forced to rebalance utilizing the 802.11v BTM. The AP sends a BTM message to the client to roam. If the client does not roam, the client is forced to disconnect after 10 seconds. Additionally, some selected non-802.11v clients are forcefully disconnected directly to force them to roam.
      • Sticky Client Steering:

        Some client devices connect to an AP and stay connected to the same servicing AP, and does not change its association to the closer APs. These clients are referred as sticky clients. These clients may experience degradation in service because of lower throughput resulting in poor user experience. The purpose of the sticky client steering functionality is to identify these clients and assist in transition to a better AP.

        Click on the toggle button to enable the options.

        • SNR Threshold - Signal-to-Noise (SNR) ratio value evalutes signal based on the noise. Enter the value between 5db to 30db.
        • NBRAP % Threshold - NBRAP (Neighbor AP) percentage is used to calculate a base SNR and compare it to the SNR received from a neighbor AP. Enter the percentage (%) range between 10-40.

    • Based on Capacity: This option performs the similar functionality as Based on Client Count the difference is Limit 2.4Ghz Client to is disabled.
    • Disabled - By default, Disabled option is selected.
    Note: The band change is applicable only for those connected clients that support the 802.11v standard.
    Band Balancing Balances the client distribution across frequency bands. Enter the 2.4G client percentage to control the 2.4G clients limit and to enforce band balance.
    Location Based Service Indicates that the location-based service is enabled.
    • Select the check box and choose the options.
    • Click Create, In the Create LBS Server form:
      1. Enter the Venue Name.
      2. Enter the Server Address.
      3. Enter the Port number.
      4. Enter the Password.
    Client Admission Control Indicates the load thresholds on the AP at which it will stop accepting new clients. Select the check box and update the following settings:
    • Min Client Count
    • Max Radio Load
    • Min Client Throughput
    AP Reboot Timeout Indicates the AP reboot settings. Choose the required option:
    • Reboot AP if it cannot reach default gateway after
    • Reboot AP if it cannot reach the controller after
    Recovery SSID Allows you to enable or disable the Recovery (Island) SSID broadcast on the controller. Enable Recovery SSID Broadcast.
    My.Ruckus support for Tunnel-WLAN/VLAN By default, support for LBO, tunneled-WLAN, and non-default management VLAN is disabled because it adds an ACL which affects the LBO and tunneled-WLAN performance. Enabling this support may have a 10 percent impact on the Wi-Fi performance. Enable the option for support.

    AP Zone Details for SZ144 and vSZ-E platforms

    Field Description Your Action
    Name Indicates the name of the zone or AP group. Enter a name.
    Description Indicates the short description assigned to the zone or AP group. Enter a brief description
    Type Indicates if you are creating a domain, zone, or an AP group. Appears by default. You can also choose the option.
    Parent Group Indicates the parent AP group. Appears by default.
    Link Switch Group Allows to create a link between the switch group and an AP. You can enable or disable the option. When the link state is enabled, you can modify the name and description of the switch group, the AP zone will change accordingly.

    When the link is disabled, the AP zone and switch group no longer share same name and description, but the link between them still exists.

    To delete the link, modify the name of AP zone or switch group. After successful deletion of the link, the Link AP Zone option is unavailable.

    General Options
    AP Firmware Indicates the firmware to which it applies. Select the firmware.
    Country Code Indicates the country code. Using the correct country code helps ensure that APs use only authorized radio channels. Select the country code.
    Location Indicates the generic location. Enter the location.
    Location Additional Information Indicates detailed location. Enter additional location information.
    GPS Coordinates Indicates the geographical location. Enter the following coordinates:
    • Longitude
    • Latitude
    • Altitude
    AP Admin Logon Indicates the administrator logon credentials. Enter the Logon ID and Password.
    AP Time Zone Indicates the time zone that applies. Select a time zone, and enter the details as required.
    AP IP Mode Indicates the IP version that applies. Select the IP version. IPv6, IPv4, and dual addressing modes are supported.
    Historical Connection Failures Allows the zone APs to report client connection failures so that the administrator can view past connection problems from the Troubleshooting menu. Click the button.
    SSH Tunnel Encryption Specifies the encryption that reduces the load on controller control of SSH traffic. Select the required option:
    • AES 128
    • AES 256
    Mesh Options
    Enable mesh networking in this zone

    Enables managed APs to automatically form a wireless mesh network, in which participant nodes (APs) cooperate to route packets.

    Click the button.
    Zero Touch Mesh Enables a new AP to join the network using wireless connection. Click the button.
    Mesh Name (ESSID)

    Indicates the mesh name.

    Enter a name for the mesh network. Alternatively, do nothing to accept the default mesh name that the controller has generated.
    Mesh Passphrase

    Indicates the passphrase used by the controller to secure the traffic between Mesh APs.

    Enter a passphrase that contains at least 12 characters. Alternatively, click Generate to generate a random passphrase with 32 characters or more.
    Mesh Radio Option

    Indicates the channel range configured.

    Select the channel option:
    • 2.4GHz
    • 5GHz/6GHz
    • 5GHz
    • 6GHZ

    Note: If APs do not support 6G radio but 6GHz is selected as the radio option, APs form the mesh on 5G radio instead of 6G.

    Radio Options
    Dual-5G Mode Enables third radio operator in 2.4 GHz, Lower 5 GHz, and Upper 5 GHz. By default, the Dual-5G Mode is enabled. In the enabled mode, radio-0 will be on 2.4GHz band, radio-1 will be on 5G Lower band and radio-2 will be on 5G Upper band.
    • 5G Lower BAND : UNII-1, UNII-2A
    • 5G Upper BAND : UNII-2C, UNII-3

    In the disabled mode, the radio-0 will be on 2.4GHz band, radio-1 will be on 5G band and radio-2 will be on 6G band. This also depends on the country code.

    Select or keep the default Dual-5G Mode option.
    Band/Spectrum Configuration > 2.4 GHz
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference. The Auto setting defaults to 20 MHz channelization. Set the channel bandwidth used during transmission to either 20 or 40 (MHz), or select Auto to set it automatically.

    Note: By default, for the Country Code Indonesia, the Channelization width is set to 20 MHz only for outdoor APs.

    Channel Indicates the channel to use. Select one of the options: Auto, 1, 6 or 11.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the 2.4 GHz radio. By default, the TX power is set to Full on the 2.4 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Protection Mode Indicates the mechanism to reduce frame collision. Choose one of the following options:
    • None
    • RTS/CTS
    • CTS Only
    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    Band/Spectrum Configuration > 5 GHz
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference.
    7.0 update
    Prior to SmartZone release 7.0.0, the Auto setting defaulted to 80 MHz channelization. Beginning in SmartZone release 7.0.0, the Auto setting defaults to 40 MHz channelization.
    Set the channel bandwidth used during transmission: Auto, 20, 40, 80 and 160.

    Note: By default, for the Country Code Indonesia, the Channelization width is set to 20 MHz only for outdoor APs.

    Channel Indicates the channel to use. Select the required options for the Indoor and Outdoor APs.
    Secondary Channel Indicates the secondary channel to used. By default, the Indoor and Outdoor option is set to Auto.
    Allow DFS Channels Allows ZoneFlex APs to use DFS channels. Click to enable the option.
    Allow Channel 144

    Provides channel 140 and 144 support for 11ac and 11ax APs. Enabling this option supports 20 MHz, 40 MHz, or 80 MHz channel modes. The 160 MHz mode is supported if the AP supports this mode. Disabling this option provides Channel 140 support only to 20 MHz mode.

    Note: This option is available for selection only if you enable the DFS Channels option.
    Note: This feature is currently supported only in the United States.
    Click to enable the option.
    Allow Indoor Channels Allows outdoor APs to use channels regulated as for indoor use only. Click to enable the option.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the 5 GHz radio. By default, the TX power is set to Full on the 5 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    Band/Spectrum Configuration > 6 GHz
    Note: This tab is available only if the Tri-band Dual-5G Mode option is not enabled.
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference.
    7.0 update
    The Auto setting defaults to 160 MHz channelization.
    Set the channel bandwidth used during transmission: Auto, 20, 40, 80, 160 and 320.
    Note: The 320 MHz-radio frequency is available only for the R770 AP 6 GHz radio frequency.
    Channel Indicates the channel to use.
    • In countries where only 6 GHz Indoor channels are permitted, the 6 GHz Outdoor channels are disabled.
    • If a country permits the use of 6GHz Indoor and Outdoor channels, the controller will provide the available channel ranges for both Indoor and Outdoor channels. For example, in the US, the available channel ranges are -
      • Indoor APs can operate in UNII-5,6,7,8
      • Outdoor APs can operate in UNII-5,7
    • You can choose channel options for Indoor and Outdoor channels. The default setting for both Indoor and Outdoor channels is Auto.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the 6 GHz radio. By default, the TX power is set to Full on the 6 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    Band/Spectrum Configuration > Lower 5 GHz
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference.
    7.0 update
    Prior to SmartZone release 7.0.0, the Auto setting defaulted to 80 MHz channelization. Beginning in SmartZone release 7.0.0, the Auto setting defaults to 40 MHz channelization.
    Set the channel bandwidth used during transmission: Auto, 20, 40, 80 and 160.

    Note: By default, for the Country Code Indonesia, the Channelization width is set to 20 MHz only for outdoor APs.

    Channel Indicates the channel to use. Select the required options for the Indoor and Outdoor APs.
    Allow DFS Channels Allows ZoneFlex APs to use DFS channels. Click to enable the option.
    Allow Indoor Channels Allows outdoor APs to use channels regulated as for indoor use only. Click to enable the option.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the Lower 5 GHz radio. By default, the TX power is set to Full on the Lower 5 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    Band/Spectrum Configuration > Upper 5 GHz
    Channelization Helps manage and allocate radio frequency resources. A lower channel width allows the zone to potentially serve more clients, whereas a higher channel width improves throughput, but potentially serves fewer clients and increases the possibility of interference.
    7.0 update
    Prior to SmartZone release 7.0.0, the Auto setting defaulted to 80 MHz channelization. Beginning in SmartZone release 7.0.0, the Auto setting defaults to 40 MHz channelization.
    Set the channel bandwidth used during transmission: Auto, 20, 40, 80 and 160.
    Channel Indicates the channel to use. Select the required options for the Indoor and Outdoor APs.
    Allow DFS Channels Allows ZoneFlex APs to use DFS channels. Click to enable the option.
    Allow Channel 144 Provides channel 140 and 144 support for 11ac and 11ax APs. Enabling this option supports 20 MHz, 40 MHz, or 80 MHz channel modes. The 160 MHz mode is supported if the AP supports this mode. Disabling this option provides Channel 140 support only to 20 MHz mode.
    Note: This option is available for selection only if you enable the DFS Channels option.
    Note: This feature is currently supported only in the United States.
    Click to enable the option.
    Auto Cell Sizing Enables the AP to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option disables the TX Power Adjustment configuration.
    Note: Ensure that Background Scan is enabled.
    Select the option.
    TX Power Adjustment Allows to manually configure the transmit power on the Upper 5 GHz radio. By default, the TX power is set to Full on the Upper 5 GHz radio.
    Note: If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the maximum allowable value according to the AP's capability and the operating country's regulations.
    Select the preferred TX power.
    Background Scan Allows the AP radio to scan other channels in the band for accessing channel health and capacity, detecting rogue devices, optimizing and maintaining mesh links and to discover AP neighbors. Enter the duration in seconds. Range: 1 through 65535.
    Auto Channel Selection Automatically adjusts the channel for network self-healing and performance optimization.
    7.0 update
    ChannelFly is set as the default option.

    For the ChannelFly option, you may also modify the default settings for the Channel Change Frequency and Full Optimization Period.

    The Channel Change Frequency slidebar allows you to specify the responsiveness of ChannelFly to interference (with consideration for the impact on associated clients), ranging from Minimal to Very Often.

    The Full Optimization Period timeslot bar allows you to specify one or more periods of time when ChannelFly is allowed to fully optimize the channel plan, ignoring the impact of channel changes on associated clients. Select time periods when the wireless network is servicing the fewest clients.

    Select the required option.
    • Background Scanning: Changes the AP channel when there is interference.
    • ChannelFly: Monitors potential throughput and will change channels to learn each channel's capacity, optimize throughput, and to avoid interference.
    AP GRE Tunnel Options
    Ruckus GRE Profile Indicates the GRE tunnel profile. Choose the GRE tunnel profile from the list.
    Ruckus GRE Forwarding Broadcast Forwards the broadcast traffic from network to tunnel. Click the option to enable forwarding broadcast.
    Soft GRE Profiles Indicates the SoftGRE profiles that you want to apply to the zone.
    1. Click the Select check box, a form is displayed.
    2. From the Available Profiles, select the profile and click the -> icon to choose it.

      You can also click the + icon to create a new SoftGRE profile.

    3. Click OK.
    IPsec Tunnel Mode Indicates the tunnel mode for the Ruckus GRE and SoftGRE profile. Select an option:
    • Disable
    • SoftGRE
    • Ruckus GRE
    IPsec Tunnel Profile Indicates the tunnel profile for SoftGRE.
    Note: Select the same tunnel type for IPsec tunnel profile in WLAN configuration.
    Choose the option from the list.
    Syslog Options
    Enable external syslog server for APs Enables the AP to send syslog data to the syslog server on the network. Select the option.
    Config Type Allows to customize or select an external syslog server profile. Select the option:
    • Custom: Configure the details for the AP to send syslog messages to syslog server.
      Note: The IP address format that you enter here will depend on the AP IP mode that you selected earlier in this procedure. If you selected IPv4 Only, enter an IPv4 address. If you selected IPv6 Only, enter an IPv6 address.
      • Primary Server Address: If the primary server goes to sends syslog messages.
        • Port: enter the syslog port number on the respective servers.
        • Protocol: select between UDP and TCP protocols
      • Secondary Server Address: If the primary server goes down, the AP sends syslog messages to the secondary server as backup.
        • Port: enter the syslog port number on the respective servers.
        • Protocol: select between UDP and TCP protocols
      • Event Facility: Select the facility level that will be used by the syslog message. Options include: Keep Original, Local0 (default), Local1, Local2, Local3, Local4, Local5, Local6, and Local7.
      • Priority: Select the lowest priority level for which events will be sent to the syslog server. For example, to only receive syslog messages for events with the warning (and higher) priority, select Warning. To receive syslog messages for all events, select All.
      • Send Logs: Select the type of messages to be sent to the syslog server. For example, General Logs, Client Logs or All Logs.
    • AP External Syslog Profile: Select the profile from the drop-down or click Add to create a new profile.
    AP SNMP Options
    Enable AP SNMP Indicates if the AP SNMP option is enabled. Select the check box.
    SNMPv2 Agent Indicates if the SNMPv2 agent is enabled. If the SNMPv2 agent is enabled, configure the community settings.
    1. Click Create and enter Community.
    2. Select the required Privilege. If you select Notification, enter the Target IP.
    3. Click OK.
    SNMPv3 Agent Indicates SNMPv3 agent is applied. If the SNMPv3 agent is enabled, configure the community settings.
    1. Click Create and enter User.
    2. Select the required Authentication.
    3. Enter the Auth Pass Phrase.
    4. Select the Privacy option.
    5. Select the required Privilege. If you select Notification, select the option Trap or Inform and enter the Target IP and Target Port.
    6. Click OK.
    DHCP Service for Wi-Fi Clients
    Enable DHCP Service in this zone Enables the DHCP service for this zone. Select the check box.
    Advanced Options
    Restricted AP Access Profile
    Note: This feature is available from 5.2 release and onwards.
    Restricted AP Access blocks access to the AP's standard well know open ports to protect the APs and enhance their security. Select the Restricted AP Access profile from the drop-down. You can also create a new profile by clicking + icon.
    Note: By default this feature is disabled.
    Note: You can add maximum five Restricted AP Access profiles for a zone.
    Channel Mode Indicates if location-based service is enabled. If you want to allow indoor APs that belong to this zone to use wireless channels that are Channel Mode regulated as indoor-use only. Select the Allow indoor channels check box.
    Smart Monitor Indicates AP interval check and retry threshold settings. Select the check box and enter the interval and threshold.
    AP Ping Latency Interval Measures the latency between the controller and AP periodically, and sends this data to SCI. Enable by moving the button to ON to measure latency.
    AP Management VLAN Indicates the AP management VLAN settings. Choose the option. Click VLAN ID, and then type the VLAN ID that you want to assign (valid range is from 1 to 4094). To keep the same management VLAN ID that has been configured on the AP, click Keep AP's settings.
    Attention: For standalone APs, set the AP Ethernet port to trunk before changing the AP Management VLAN settings.
    Rogue AP Detection Indicates rogue AP settings.
    Note: Rogue detection AP in active-active mode cluster redundancy environment is restricted from storing its own BSSIDs to avoid considering its own APs as rogues attacking.
    Enable the option.
    Rogue Classification Policy Indicates the parameters used to classify rogue APs. This option is available only if you enable the Rogue AP Detection option.

    Select the options for rogue classification policy:

    • Enable events and alarms for all rogue devices
    • Enable events and alarms for malicious rogues only
    • Report RSSI Threshold - enter the threshold. Range: 0 through 100.
    • Protect the network from malicious rogue access points - Enable the option and choose one of the following:
      • Aggressive
      • Auto
      • Conservative
    • Radio Jamming Detection - Enable the option and enter the Jamming Threshold in percentage.
    DoS Protection Indicates settings for blocking a client. Select the check box and enter the duration in seconds.
    Load Balancing Balances the number of clients or the available capacity across APs. Select the required option:
    • Based on Client Count: If this option is selected, Steering Mode and Sticky Client options are enabled.
      • Steering Mode - Controls the APs' steering behavior for load balancing. Select the option and use the slider to actively control associated stations to meet the distribution requirements allowing band balancing and load balancing:
        • Basic (default): During heavy load conditions, this option withholds probe and authentication responses in order to achieve load balance.
        • Proactive: This is a dynamic form of band balancing where some selected associated clients are rebalanced on the AP or across APs utilizing the 802.11v BTM. The AP sends a BTM message to the client to roam and it is left to the client's discretion to make its roaming decision.
        • Strict: This is an aggressive form of balancing where some selected associated clients are forced to rebalance utilizing the 802.11v BTM. The AP sends a BTM message to the client to roam. If the client does not roam, the client is forced to disconnect after 10 seconds. Additionally, some selected non-802.11v clients are forcefully disconnected directly to force them to roam.
      • Sticky Client Steering:

        Some client devices connect to an AP and stay connected to the same servicing AP, and does not change its association to the closer APs. These clients are referred as sticky clients. These clients may experience degradation in service because of lower throughput resulting in poor user experience. The purpose of the sticky client steering functionality is to identify these clients and assist in transition to a better AP.

        Click on the toggle button to enable the options.

        • SNR Threshold - Signal-to-Noise (SNR) ratio value evalutes signal based on the noise. Enter the value between 5db to 30db.
        • NBRAP % Threshold - NBRAP (Neighbor AP) percentage is used to calculate a base SNR and compare it to the SNR received from a neighbor AP. Enter the percentage (%) range between 10-40.

    • Based on Capacity: This option performs the similar functionality as Based on Client Count the difference is Limit 2.4Ghz Client to is disabled.
    • Disabled - By default, Disabled option is selected.
    Note: The band change is applicable only for those connected clients that support the 802.11v standard.
    Band Balancing Balances the client distribution across frequency bands. Enter the 2.4G client percentage to control the 2.4G clients limit and to enforce band balance.
    Steering Mode Controls the APs' steering behavior for load balancing and band balancing. Select the option and use the slider to actively control associated stations to meet the distribution requirements allowing band balancing and load balancing:
    • Basic (default): During heavy load conditions, this option withholds probe and authentication responses in order to achieve load balance.
    • Proactive: This is a dynamic form of band balancing where some selected associated clients are rebalanced on the AP or across APs utilizing the 802.11v BTM. The AP sends a BTM message to the client to roam and it is left to the client's discretion to make its roaming decision.
    • Strict: This is an aggressive form of balancing where some selected associated clients are forced to rebalance utilizing the 802.11v BTM. The AP sends a BTM message to the client to roam. If the client does not roam, the client is forced to disconnect after 10 seconds. Additionally, some selected non-802.11v clients are forcefully disconnected directly to force them to roam.

    Note: The band change is applicable only for those connected clients that support the 802.11v standard.

    Enter the percentage of client load on the 2.4 GHz band.
    Location Based Service Indicates that the location-based service is enabled.
    • Select the check box and choose the options.
    • Create, In the Create LBS Server form:
      1. Enter the Venue Name.
      2. Enter the Server Address.
      3. Enter the Port number.
      4. Enter the Password.
    Client Admission Control Indicates the load thresholds on the AP at which it will stop accepting new clients. Select the check box and update the following settings:
    • Min Client Count
    • Max Radio Load
    • Min Client Throughput
    AP Reboot Timeout Indicates the AP reboot settings. Choose the required option:
    • Reboot AP if it cannot reach default gateway after
    • Reboot AP if it cannot reach the controller after
    Recovery SSID Allows you to enable or disable the Recovery (Island) SSID broadcast on the controller. Enable Recovery SSID Broadcast.

    Note: The Recovery SSID is available when an AP does not get a reply back for unicast ARP to its configured gateway.

    My.Ruckus support for Tunnel-WLAN/VLAN By default, support for LBO, tunneled-WLAN, and non-default management VLAN is disabled because it adds an ACL which affects the LBO and tunneled-WLAN performance. Enabling this support may have a 10 percent impact on the Wi-Fi performance. Enable the option for support.
  4. Click OK.

For vSZ-H, you can also migrate the zone configuration from a regular Domain to a Partner Domain. For more information, see https://support.ruckuswireless.com/answers/000006414.

Note: You can also edit, clone or delete an AP Zone by selecting the options Edit , Clone or Delete respectively, from the Access Points page.

Note: Starting with 7.0 release, the support for Cellular Options while configuring or creating a zone is removed from the controller web interface.
