Scheduling AP CLI Scripts

You can upload AP CLI scripts to be run on APs within selected zones. You can also schedule the script to be run on the APs at a particular time or when the AP joins the zone.
  1. From the main menu, click Monitor.
  2. Under Troubleshooting & Diagnostics, hover over the Scripts, and click Patch/Diagnostic Scripts.
  3. Select the AP CLI Scripts tab.
  4. From the domain tree, choose the domain in which the AP is present.
  5. From the AP CLI Scripts tab, select the script from the list of scripts.
  6. Click Schedule.

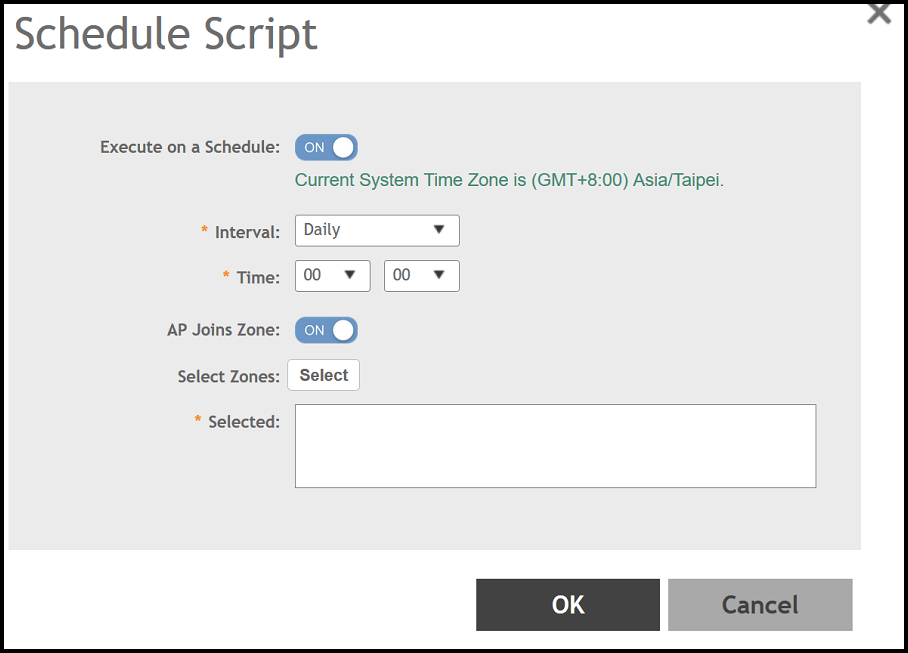

    The Schedule Script dialog box is displayed.

    Scheduling a Script

  7. Configure the following options:
    • Execute on a Schedule: Enable this option to execute the script based on the current system time.
    • Interval: Schedule the script execution in multiple events. Options are Daily, Weekly and Monthly.
    • Time: Select the time from the drop-down menu to execute the script.
    • AP Joins Zone: By default this option is disabled. Enable this option to make sure the script runs on the AP when it joins a particular zone.
  8. To select the zone, click Select.
    This displays the Select Zone page . Identify and select the zone. The selected zone is populated in the Selected area.
  9. Click OK.
The schedule is configured and the script will run on the AP as planned.
