Multicast Rate Filter
All the controller managed APs support this feature. The GUI for rate limit control is designed as:
- Multicast Downlink/Uplink Rate Limit should be configured at WLAN level.
- Multicast Rate Limit and Drop Multicast/Broadcast Traffic from Associated Wireless Clients are mutually exclusive feature.
- Mutlicast UL/DL values should be shown only if Mutlicast Rate limit is enabled.
- Downlink value default is u to 6 mbps. The range of multicast values depends on the BSS minimum rate selection in the wlan and a maximum of half of the BSS minimum rate.
- SSID Rate Limit will always take precedence if Mutlicast Rate Limit is also configured.
%20Network%20Administration%20Guide,%207.0.0_v6_GUID-2EF02EA6-D149-4E3F-AF62-D13003B211DA/Multicast%20Rate%20Limiter=GUID-0E5FC5AF-6CC1-45D1-BDFF-F631379683A0=2=en-US=Low.png)

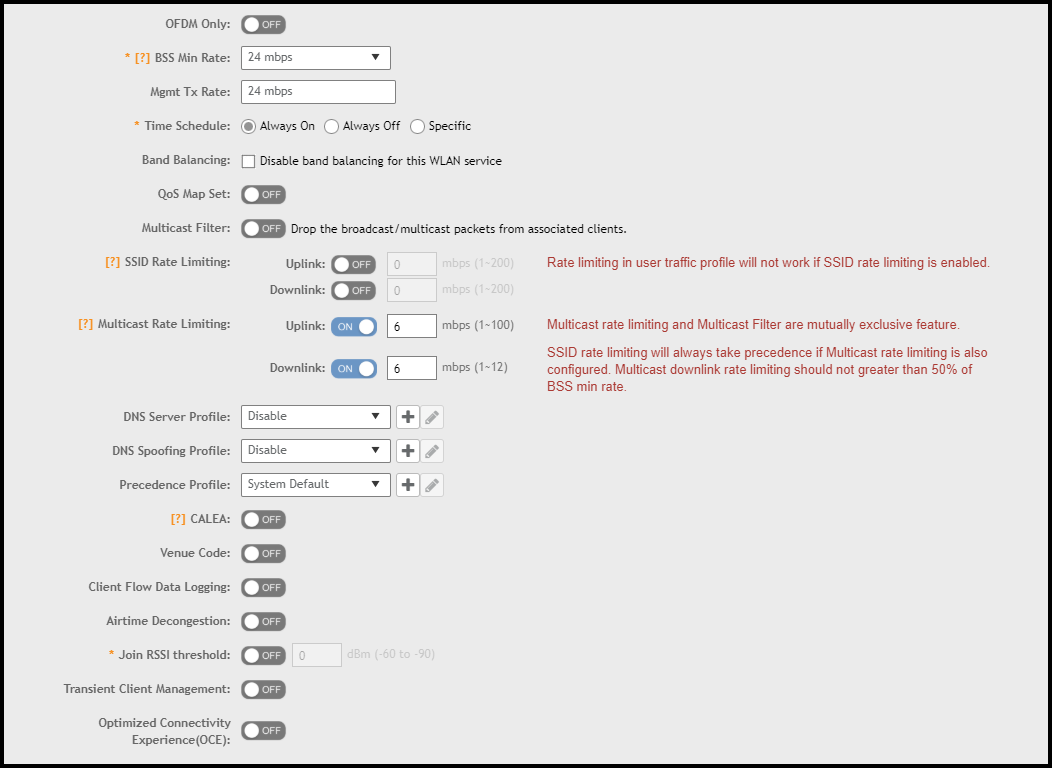

Add Multicast Rate Limiting Uplink and Downlink Fields in Advanced Option of WLAN
%20Network%20Administration%20Guide,%207.0.0_v6_GUID-2EF02EA6-D149-4E3F-AF62-D13003B211DA/mcast%20rate%20limiter=GUID-52922C97-DC22-49D3-B2F4-FCE50DA63F41=3=en-US=Low.jpg)

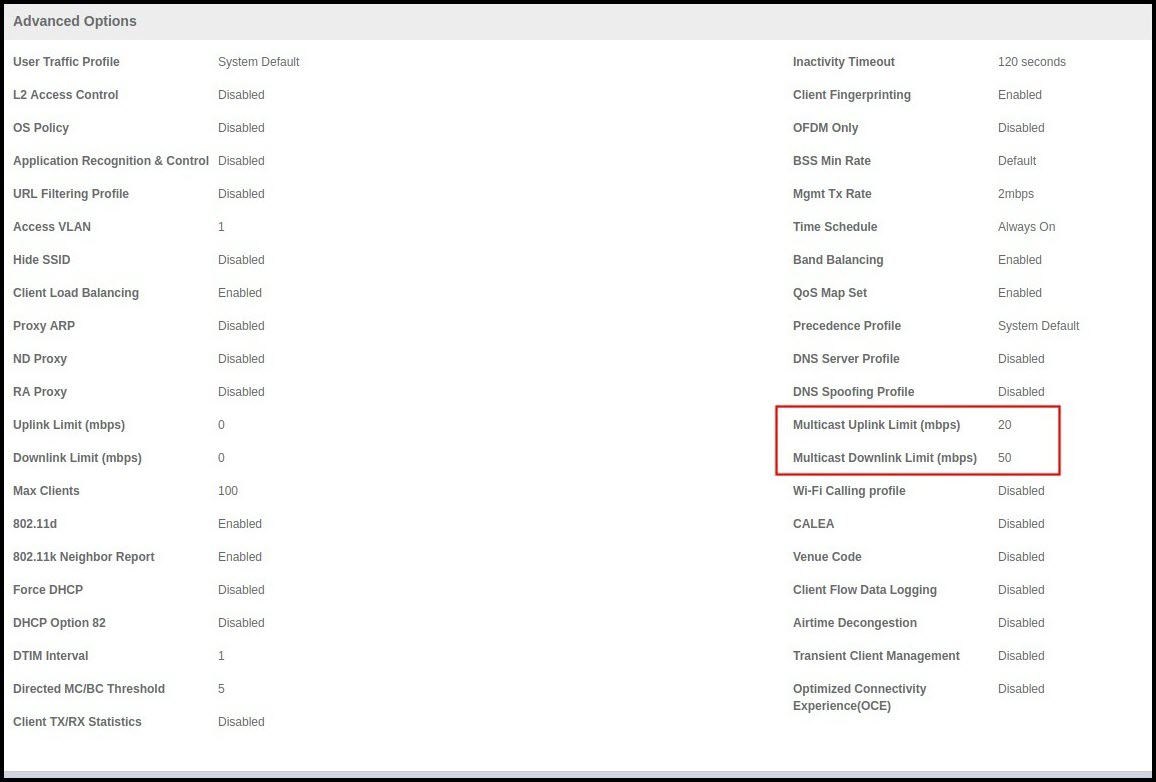

User can check multicast uplink and downlink fields in WLAN preview.
%20Network%20Administration%20Guide,%207.0.0_v6_GUID-2EF02EA6-D149-4E3F-AF62-D13003B211DA/Multicast%20Rate%20Limiter_1=GUID-ECC3BF8C-FABF-47C0-853B-E8AD412781E4=3=en-US=Low.png)
