Creating VLAN Name Profile

To create VLAN Name Profile, perform the following:
  1. Click Security > Access Control > VLAN > VLAN Name.
    The VLAN Name page is displayed.
  2. Select a zone from the hierarchy and click Create.
    The Create VLAN Name Profile page is displayed.

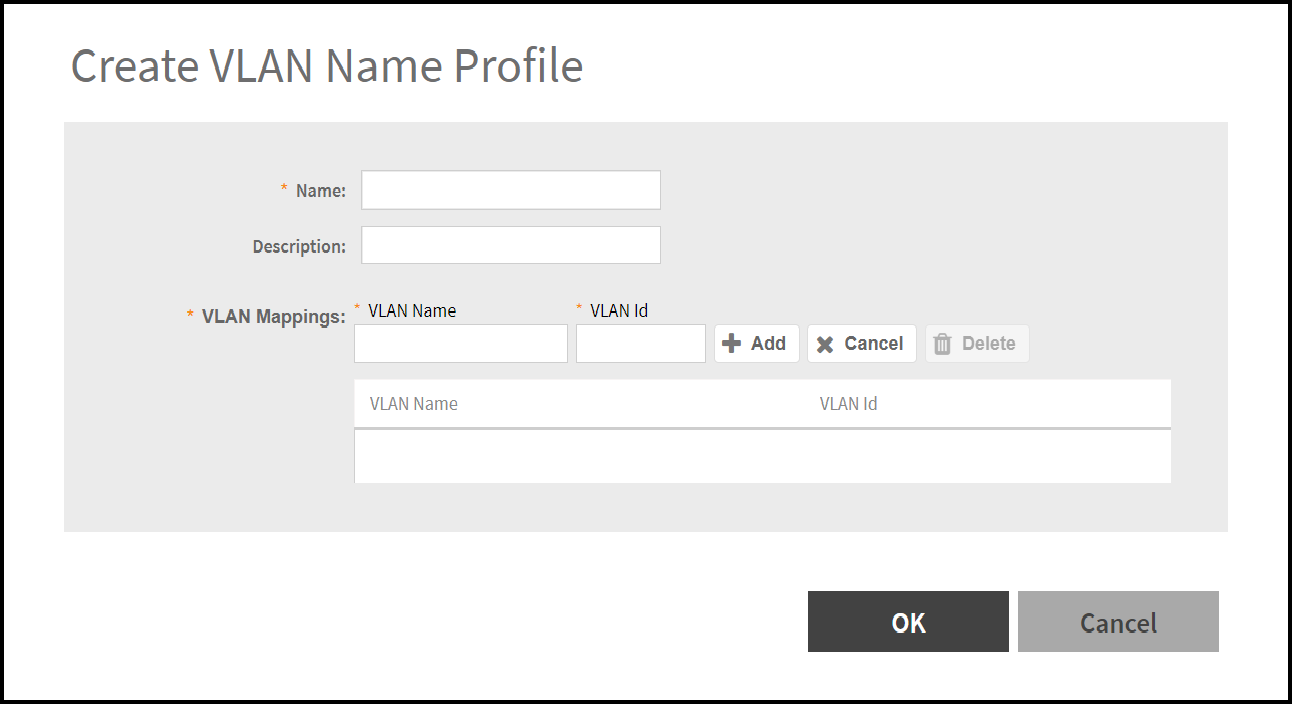

    Create VLAN Name Profile

    VLAN Name Profile page

    VLAN Name Profile page

  3. Enter the following fields:
    1. Name: Enter a name to identify the profile.
    2. Description: Enter a short description for the VLAN name profile.
    3. VLAN Mapping: Enter VLAN Name and VLAN ID and click Add.
The new VLAN name profile is displayed in the below list .
Note: You can also cancel or delete the new VLAN name profile .
Parent topic: VLAN Name
