Creating a VLAN Pooling Profile

To create VLAN a Pooling Profile, perform the following:
  1. Click Security > Access Control > VLAN and select VLAN Pooling.
    The VLAN Pooling screen is displayed.
  2. Select the zone and Click Create.
    The Create VLAN Pooling Profile page is displayed.

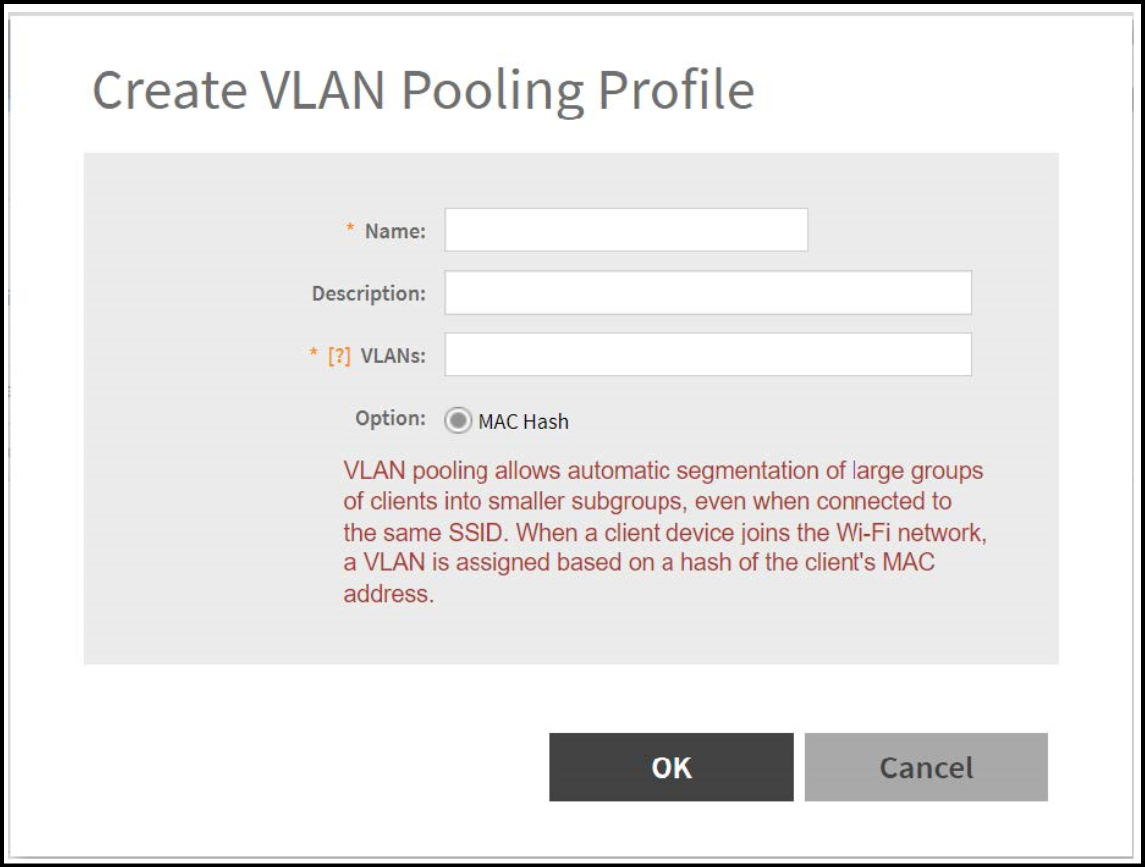

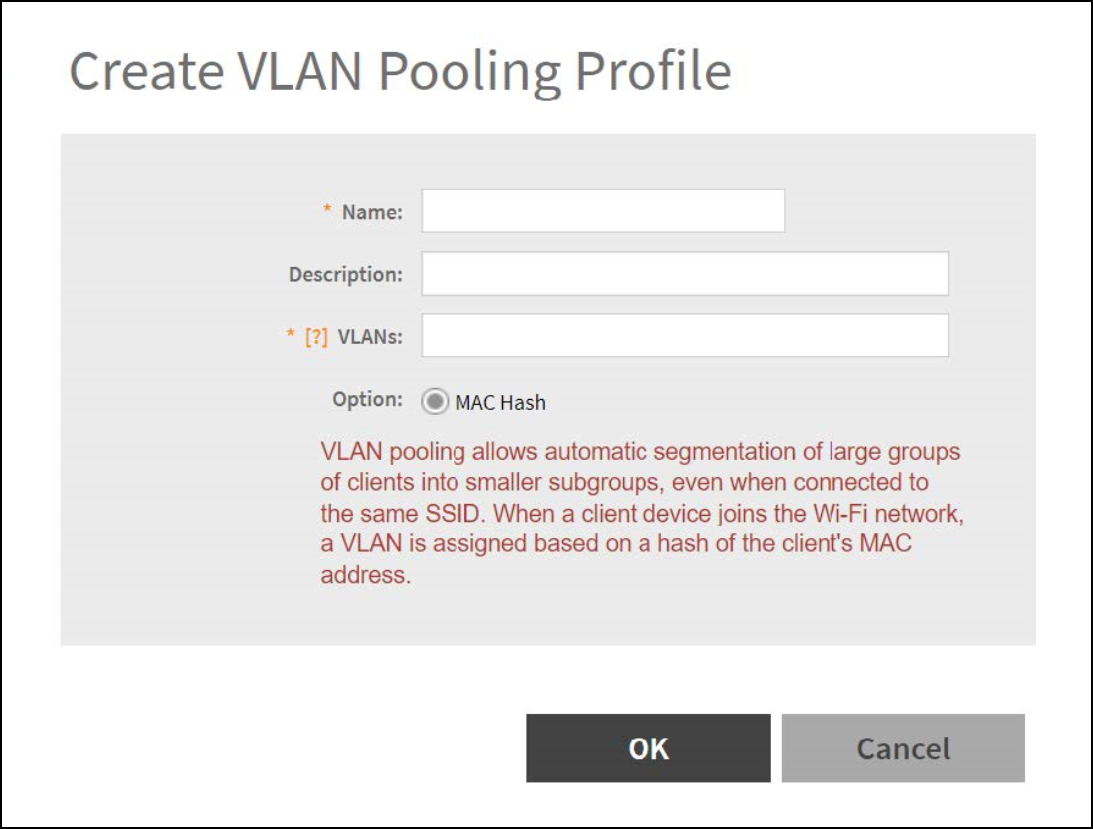

    Create VLAN Pooling Profile

  3. Enter the following details:
    1. Name: Type a name to identify the VLAN profile.
    2. Description: Type a short description for the VLAN profile.
    3. VLANS: Type the VLAN IDs to be assigned to this pool. VLAN IDs can be separated by hyphens, commas, or a combination (for example, 7-10,13,17,20-28).
    4. Click OK.
  4. You have created the VLAN Pooling profile.
    You can also edit, clone and delete a profile by selecting the options Configure, Clone and Delete respectively, from the VLAN Pooling tab.
Note: Each VLAN pool can contain up to 64 VLANs, and a maximum of 64 VLAN pools can be created. Each WLAN can be configured with a single VLAN pool. For 802.11ac Wave 1, the dynamic VLAN number is 32. For 802.11ac Wave 2 AP/802.11ax AP, dynamic VLAN number is 64.
