Viewing PoE Utilization and Health Status of the Switch
Prior to SmartZone 5.2.1, the controller provided the power supply status and PoE utilization for a stack unit. Beginning with SmartZone 5.2.1, the controller provides a view of the PoE utilization in watts, and health status such as the power supply, temperature and fan status of each member in the stack unit.
Complete the following steps to view the health status of each member in the stack unit.- On the menu, click to display the Switches window.
- In the Organization tab, select a or Switch Group and select the Switch.
- In the Details tab, click Health tab. In the Status tab you can view the health status, such as the power supply, temperature, and fan status of the stack switch.
- To enable the PoE Utilization,
In the Organization tab, click
%20Network%20Administration%20Guide,%207.0.0_v6_GUID-2EF02EA6-D149-4E3F-AF62-D13003B211DA/icon_gear_25px=GUID-EE4E4C7F-B5C6-4342-A619-13FBFDB42607=1=en-US=Low.png)
icon at the top right to display the Table Settings
dialog box.

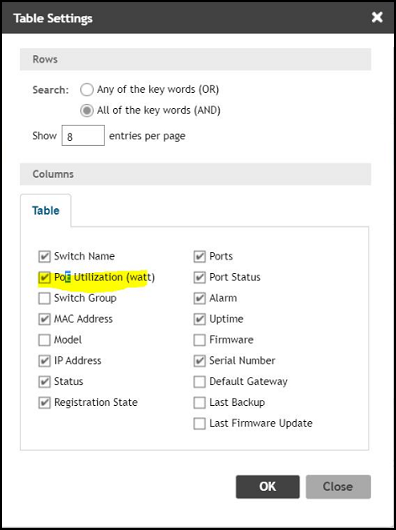

- Select the PoE Utilization (watt) from the table.
- Click OK.
- In the Organization tab, select the Switch, to view the PoE Utilization (watt) field listed in the table.

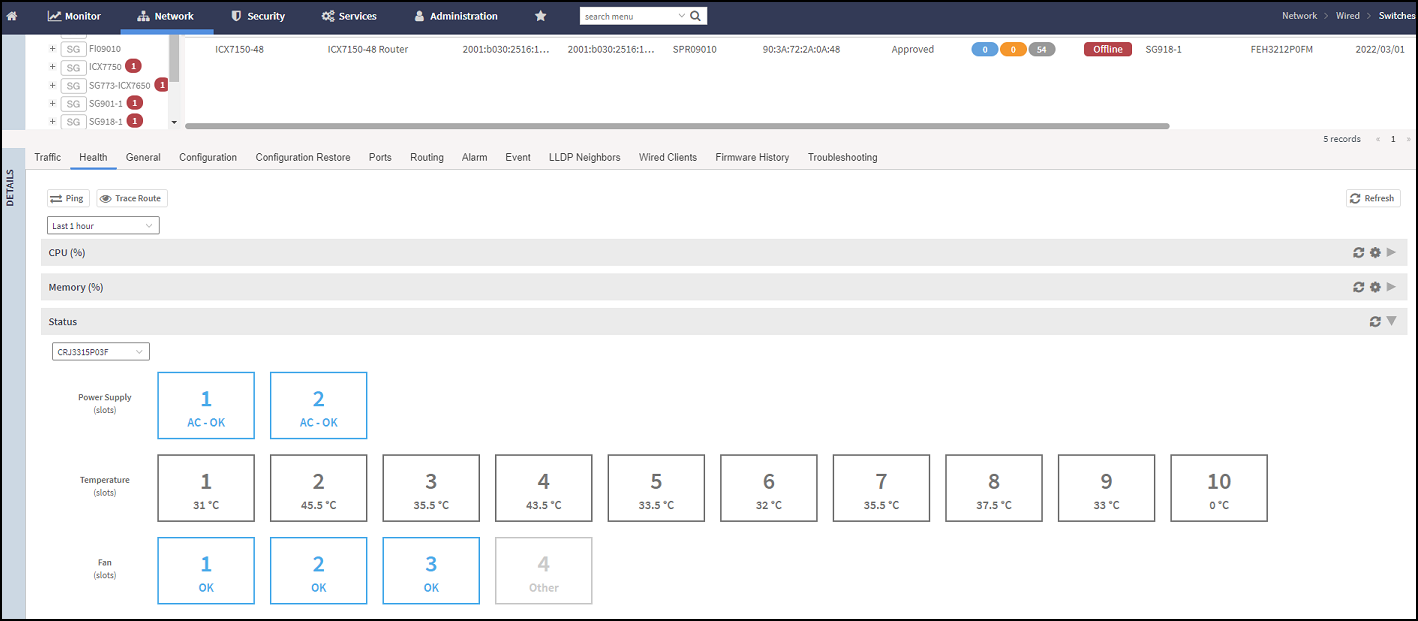

%20Network%20Administration%20Guide,%207.0.0_v6_GUID-2EF02EA6-D149-4E3F-AF62-D13003B211DA/Health=GUID-5F165ADE-2D6C-40C8-BB44-6C380A5E13AD=2=en-US=Low.png "Viewing the Health Status of Stack Switch")
%20Network%20Administration%20Guide,%207.0.0_v6_GUID-2EF02EA6-D149-4E3F-AF62-D13003B211DA/PoE%20Utilization-%20Table%20settings=GUID-D7529E3E-0D39-4509-B7B2-72259717EF96=2=en-US=Low.png)

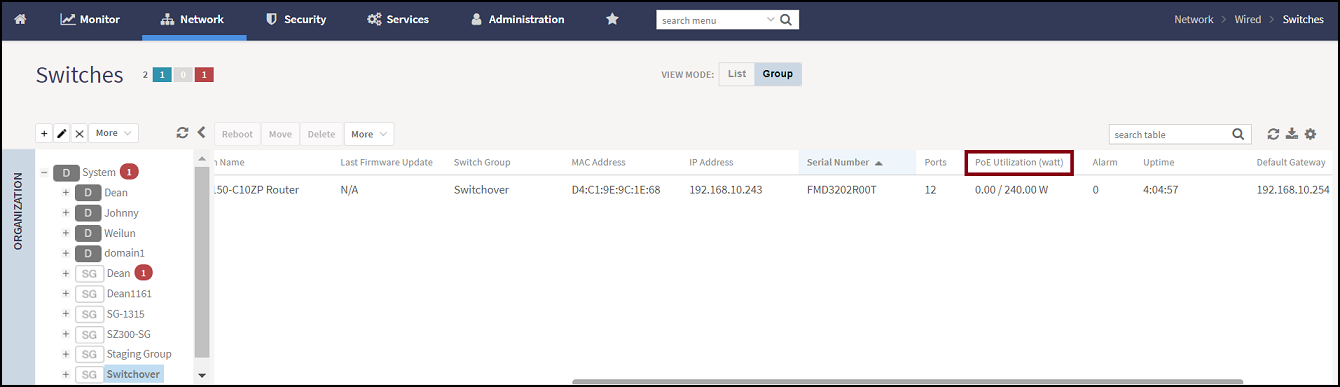

%20Network%20Administration%20Guide,%207.0.0_v6_GUID-2EF02EA6-D149-4E3F-AF62-D13003B211DA/POE%20Utilization=GUID-31D895A6-8A3B-457A-8F53-AE3ED777F095=2=en-US=Low.png "Viewing the PoE Utilization Field")
