Editing Ports Across Multiple Switches

Before the 5.2.1 release, you could edit ports for one switch at a time. After the 5.2.1 release, you can edit ports for multiple switches in the same switch group.

For instance, if you need to disable ports 1/1/11 and 1/1/12 on multiple switches, the controller lets you filter the ports list by typing your search criteria.

The search criteria is based on the following:

  • Switch Name
  • Port Numbers - comma separated values (1/1/1,1/1/11,1/1/24), (or) Range of ports (1/1/1 to 1/1/20)
  • VLAN Membership
  • PoE Detected Ports
  • Port Status
  • Admin Status

Complete the following steps to edit ports across multiple switches.

  1. On the menu, click Network > Wired > Switches to disaply the Switches window.
  2. From the system tree, select a Domain > Switch Group or Switch Group.
  3. In the Details pane, click the Switches and Ports tab.

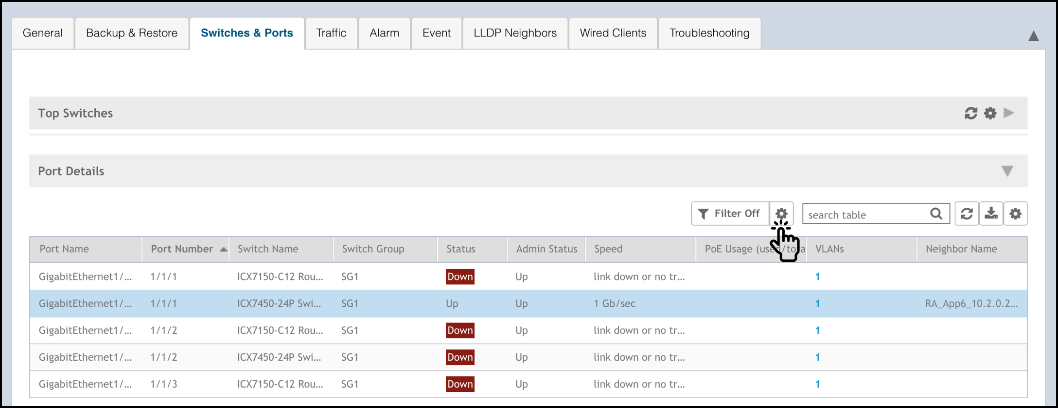

    Viewing the Switches and Ports Page

  4. In the Port Details section, click the icon.
    A dialogue box is displayed. The controller provides the following filters to combine several query conditions to filter-out the ports which you want to edit.

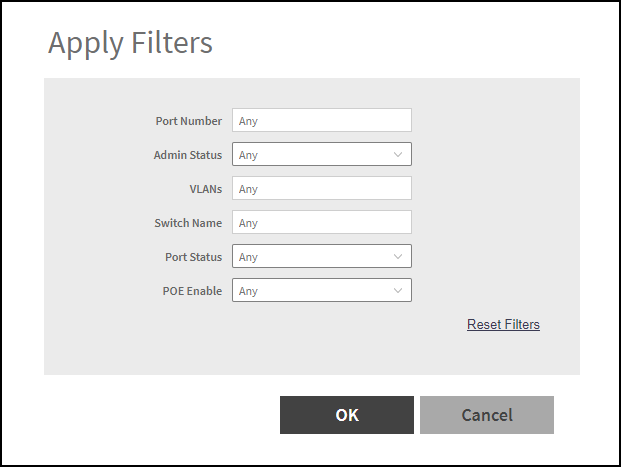

    Applying Filter to Edit the Ports

    Note: The Reset Filters allows you to clear the search conditions.
  5. Click OK.
    The controller applies the above filters to return ports that meet the search criteria.
Parent topic: Port Settings
