Creating Config Backup for Switch Group

The Master configuration backup allows you to initate a backup of a switch group or domain.
  1. On the menu, click Network > Wired > Switches to display the Switches window.
  2. From the system tree, select the Domain > Switch Group or Switch Group.
  3. Click More > Config Backup.

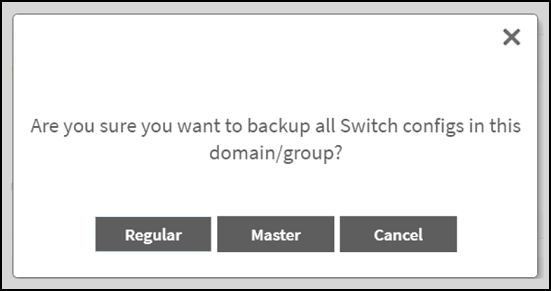

    A dialog box is displayed asking the type of backup to be performed such as Regular or Master.

    Backing up Switch group or Domain

    Backing up Switch group or Domain
  4. Click Master to create master backup for switch groups.
    The Switch config backup operation is triggered successfully dialog box is displayed ensuring the backup operation is completed.
  5. Click OK.
Parent topic: Backing up and Restoring Switch Configuration
