How Dynamic VLAN Works

Dynamic VLAN can be used to automatically and dynamically assign wireless clients to different VLANs based on RADIUS attributes.
7.0 update
The maximum number of VLANs supported in Dynamic VLAN per 11ax Virtual AP (VAP) is increased to 128 VLANs.
Dynamic VLAN Requirements:
  • A RADIUS server must have already been added to the controller
  • WLAN authentication method must be set to 802.1X, MAC address or 802.1X + MAC address
To enable Dynamic VLAN for a WLAN:
  1. Go to Network > Wireless > Wireless LANs.
  2. Click Configure for to the WLAN you want to configure.
  3. In Authentication Server, select the AAA profile.

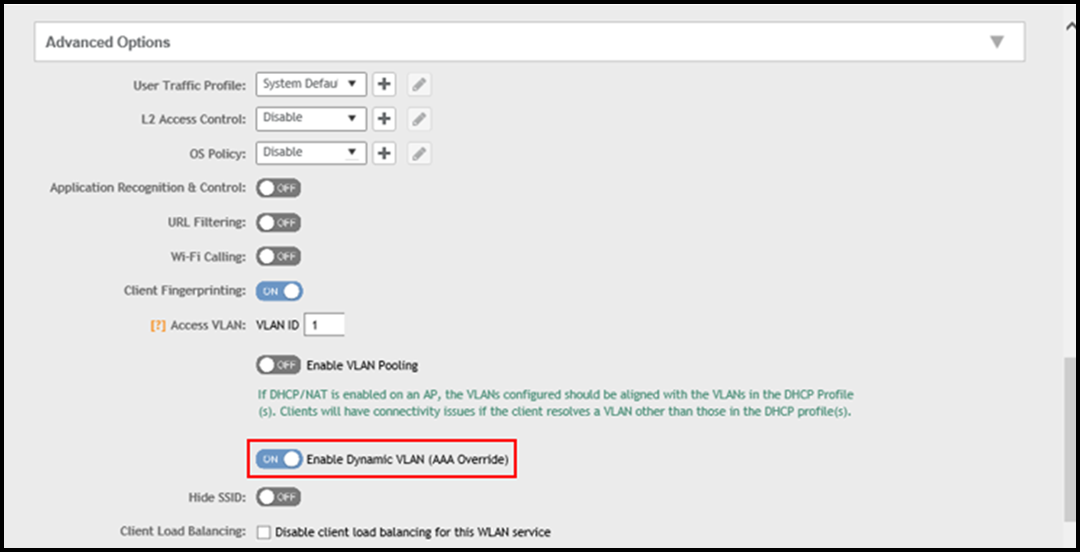

  4. Expand the Advanced Settings section and click theEnable Dynamic VLAN box next to Access VLAN.
  5. Click OKto save your changes.

    Enabling Dynamic VLAN

In this section:

  1. How It Works
Parent topic: Virtual LAN
