Locating a Rogue Device

The administrator can identify the estimated location area of a rogue AP or rogue client on a map. Managed APs that detect the rogue APs and rogue clients are also visible on the map.
Perform the following procedure to locate a rogue AP or rogue client.
  1. From the left pane, select Report > Rogue Devices.
  2. Under Device Type, select Access Point or Client.
  3. Click Locate Rogue.
    This displays Rogue AP Location page with rogue AP or rogue client. You can select from the following options:

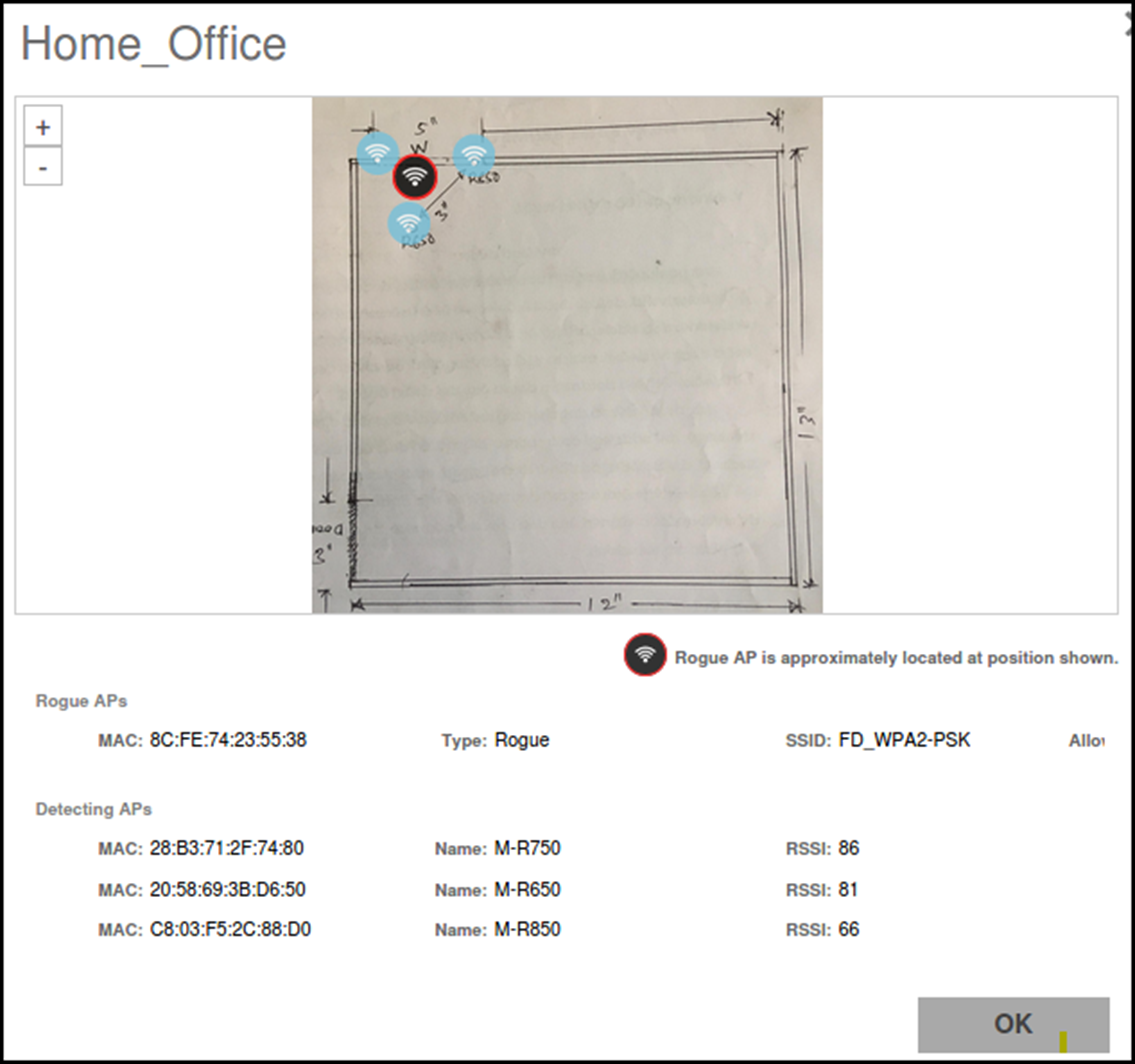

    • Map: Displays the monitor APs and rogue AP/UE detected on the floor map that is uploaded.

      Map View

    • Satellite: Displays the location as satellite imagery.

      Satellite View

    Click to zoom in and to zoom out.

    You can find the following information about rogue and detected APs:

    • Rogue APs: MAC address, type, and SSID
    • Detecting APs: MAC address, name, and RSSI

  4. Click OK.
Parent topic: Rogue Devices
