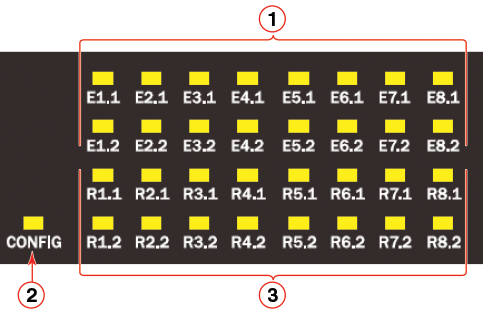

The following figure shows the LEDs on the
EPS4000.
EPS4000 LEDs
- Ex.y: Power status indicator (54 V): x=
EPS4000 connector (1-8), y = Channel or port (1-2)
- CONFIG: EPS configuration mode indicator
- Rx.y: Power status indicator (12 V): x =
EPS4000 connector (1-8), y = Channel or port (1-2)
The following table describes the functions of the
EPS4000 LEDs.
System Status LEDs on the
EPS4000
|
LED
|
State
|
Description
|
|
E1.1 ~ E8.1 (54 V1)
E1.2 ~ E8.2 (54 V2)
|
Off
|
No connection.
|
|
Green
|
EPS4000 is delivering up to 370 W PoE power to switch.
|
|
Amber
|
Switch is connected to this channel but
EPS4000 does not have sufficient PoE power for this channel.
|
|
Blinking amber
|
This channel has a fault (for example, over current).
|
|
Blinking amber and green
|
This channel has been granted PoE power but there is a fault on the channel (for example,
over current).
|
|
R1.1 ~ R8.1 (12 V1)
R1.2 ~ R8.2 (12 V2)
|
Off
|
No connection.
|
|
Green
|
Switch is connected to this channel and EPS is ready to provide 12 V backup power
for this channel.
|
|
Blinking green
|
Switch is connected to this channel and EPS is providing 12 V backup power to this
channel.
|
|
Amber
|
Switch is connected to this channel but EPS does not have sufficient 12 V backup
power for this channel.
|
|
Blinking amber
|
This channel had a fault (for example, over current).
|
|
CONFIG
|
Green
|
Auto-configuration mode.
|
|
Amber
|
Manual configuration mode.
|
|
Management port LED
(Left down)
|
Green
|
Management port link up at 100BASE-T mode.
|
|
Off
|
Management port link up at 10BASE-T mode or link is down.
|
|
Management port LED
(Right down)
|
Blinking green
|
Indicates management port receive and transmit activity.
|
|
Off
|
Indicates no Ethernet traffic on management port.
|
