Installing the device in the rack

Complete the following steps to install the device in the rack.

  1. Position the device in the rack, as shown in Positioning the device in the rack, providing temporary support under the device until the rail kit is secured to the rack.
  2. Attach the right front bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
  3. Attach the left front bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and two retainer nuts. Use the upper and lower holes in the bracket.
  4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).

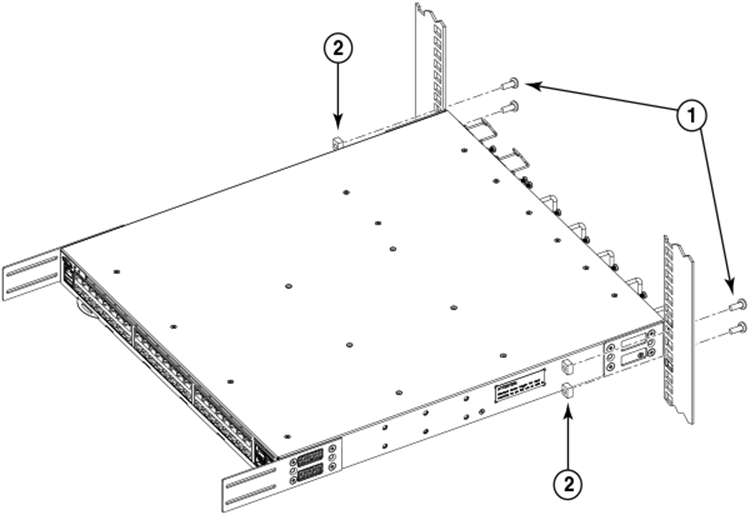

    Positioning the device in the rack

    1. Screws, 10-32 x 5/8-in., panhead Phillips
    2. Retainer nuts, 10-32
