Managing an Assa Abloy Lock

Assa Abloy locks cannot be controlled using the RUCKUS IoT Controller. To discover an Assa Abloy lock and to add it in the RUCKUS IoT Controller, perform the following steps.

  1. Swipe the AA Lock Discover Card across the lock.

  2. Ensure that the LED blinks green.

  3. Add the lock to the RUCKUS IoT Controller (if it is not already pre-approved).

Assa Abloy locks operate using the Visionline server. To establish the initial connection (after adding the lock) between an Assa Abloy lock and the Visionline server, perform the following steps.

  1. Swipe the card (guest or staff card) in front of the lock.

  2. Verify the event log from the Visionline Server Event Log to ensure that the connection is established.

    Note: For more information, refer to the Visionline documentation for instructions on installing Visionline.

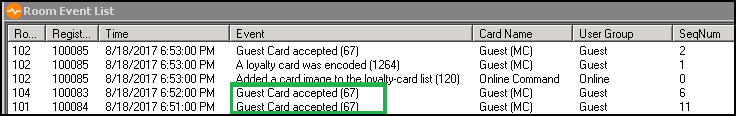

Visionline Server Event Log
