Activating and Editing the Dormakaba Plugin

The RUCKUS IoT Controller provides support for for the Dormakaba Door Locks. The RUCKUS IoT Controller reads the packet from the IoT AP and routes the packets to the Ambiance Server.

To establish a connection to a vendor infrastructure, the administrator must perform the following steps.

  1. From the main menu, click Admin.
  2. In the left navigation pane, click Plugins.
  3. In the Select a Plugin to Activate list, select the Dormakaba plugin and click Activate.

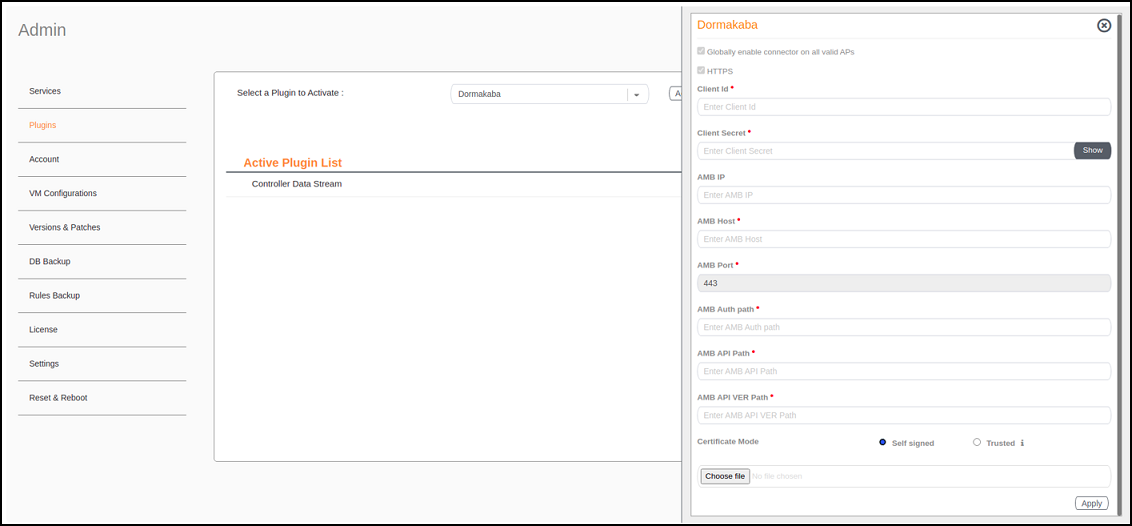

    Activating the Dormakaba Plugin

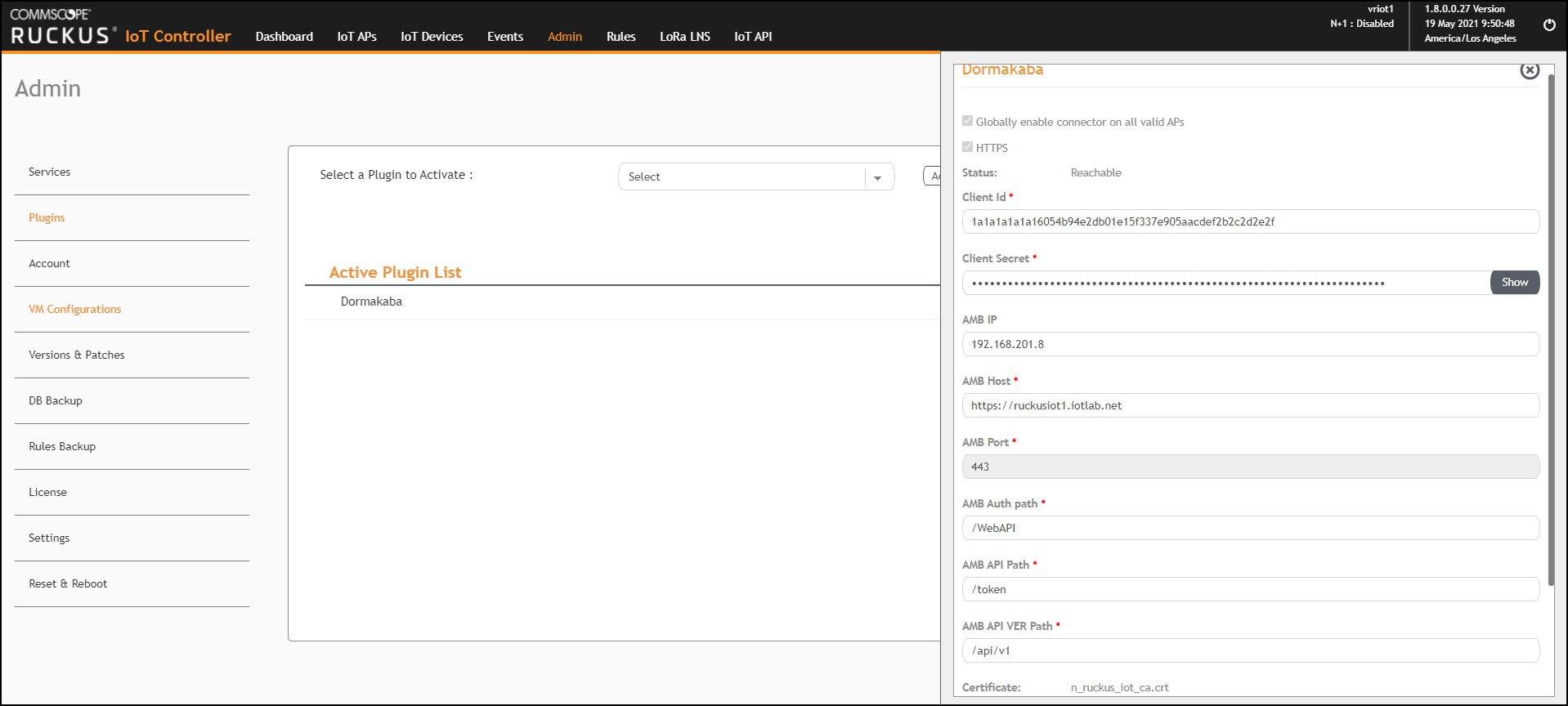

  4. After the Dormakaba plugin is activated, enter the following configuration parameters.
    1. Enter the Client Id used for connecting to Ambiance Server.
      Note: The Client ID must not be configured as "admin" while activating the Dormakaba plugin.
    2. Enter the Client Secret used for connecting to Ambiance Server.
    3. Enter the Ambiance IP Address .
    4. Enter the Ambiance Host.
      Note: The URL for Host is https://exmaple.test.net.
    5. Enter the Ambiance Port.
    6. Enter the Ambiance Auth Path.
    7. Enter the Ambiance API Path.
    8. Enter the Ambiance API VER Path.
    9. Select the Certificate Mode.
    10. Click Choose file.
  5. Click Apply.
    The Dormakaba plugin is added in the Active Plugin List.
  6. To deactivate the Dormakaba plugin, select it and click Deactivate.

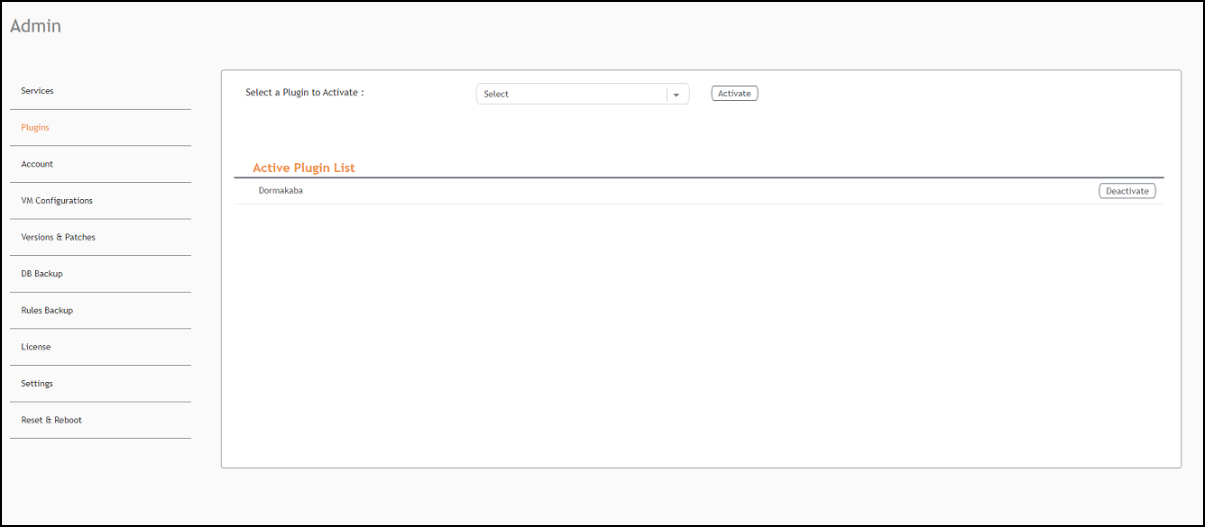

    Deactivating the Dormakaba Plugin

  7. To edit the configuration of the Dormakaba plugin, select it and click Update.

    Updating the Configuration Parameters

Parent topic: Activating and Editing the Plugins
