Global Configurations

Global configuration allows you to configure the symmetrical flow control (SFC), flow control (IEEE 802.3x), and spanning tree at the global level.

Complete the following steps to configure global configurations.

  1. Select Device.

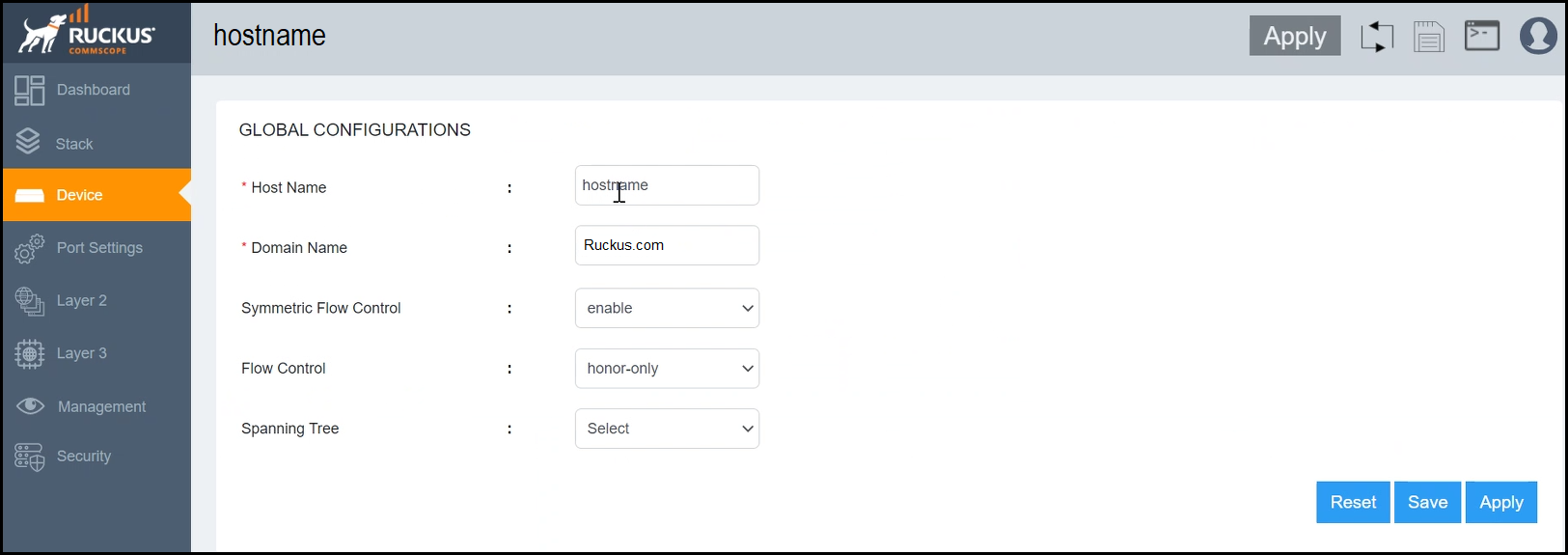

    Configuring Device: Global Configurations

  2. In the Global Configurations tab you can perform the following actions:
    1. For Host name, configure the host name for the device.
    2. For Domain Name, configure the domain name. For example, ruckus.com.
    3. For Symmetric Flow Control, Select the following options from the list to configure symmetric flow control:
      • enable: Enables SFC globally for priorities from 0 through 4 by default and optionally for all priorities from 0 through 7.
      • all-priorities: Specifies SFC on all priorities. If you do not specify this option, SFC is enabled only on priorities from 0 through 4.
      • None: Disables all SFC configurations.
    4. For Flow Control, select the following options from the list to configure flow control:
      • both: Configures flow control in PAUSE generation and honoring mode.
      • generate-only: Configures flow control in PAUSE generation mode only.
      • honor-only: Configures flow control in PAUSE honoring mode only.
      • neg-on: Enable flow control with negotiation.
      • None: Disables flow control configurations.
    5. For Spanning Tree, select the following options from the list to configure spanning tree:
      • Single: Enable single spanning tree.
      • path-cost-method: Configures spanning tree path cost method.
  3. Select Apply to configure the Global Configurations settings.
Parent topic: Device
