Configuring Symmetric Flow Control

RUCKUS devices support symmetrical flow control (SFC), which means that the ports can both receive and transmit IEEE 802.3x PAUSE frames.

Complete the following steps to configure symmetric flow control.

  1. Select Port Settings.
    The configured ports are listed in the main pane.
  2. For Symmetric Flow Control, select the following options from the list to configure symmetric flow control:
    • enable: Enables SFC globally for priorities from 0 through 4 by default and optionally for all priorities from 0 through 7.
    • all-priorities: Specifies SFC on all priorities. If you do not specify this option, SFC is enabled only on priorities from 0 through 4.
    • None: Disables all SFC configurations.

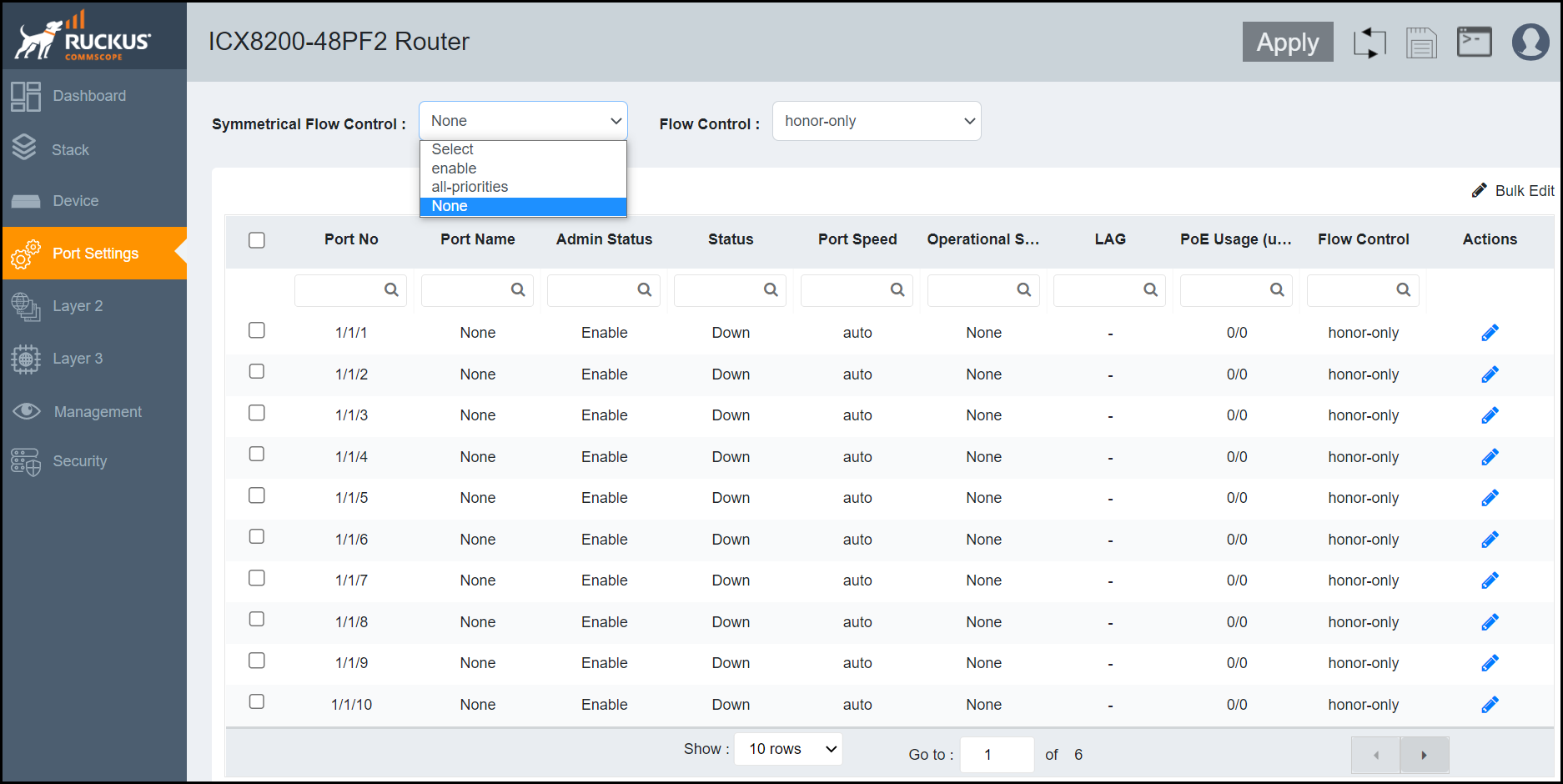

    Symmetric Flow Control Configuration

Parent topic: Configuring Port Settings
