Configuring Domain Name System Servers

The Domain Name System (DNS) resolver is a feature in a Layer 3 device that sends and receives queries to and from the DNS server on behalf of a client. You can configure the RUCKUS device to recognize DNS servers. You can configure only up to four IPv4 server addresses and four IPv6 server addresses. The first entry serves as the default primary address. If a query to the primary address fails to be resolved after three attempts, the next DNS address is queried (also up to three times). This process continues for each defined DNS address until the query is resolved. The order in which the default DNS addresses are polled is the same as the order in which you enter them.

Complete the following steps to configure DNS servers.

  1. Select Management > DNS Server.
    All DNS server address information displays for the IPv4 DNS servers and the IPv6 DNS servers.

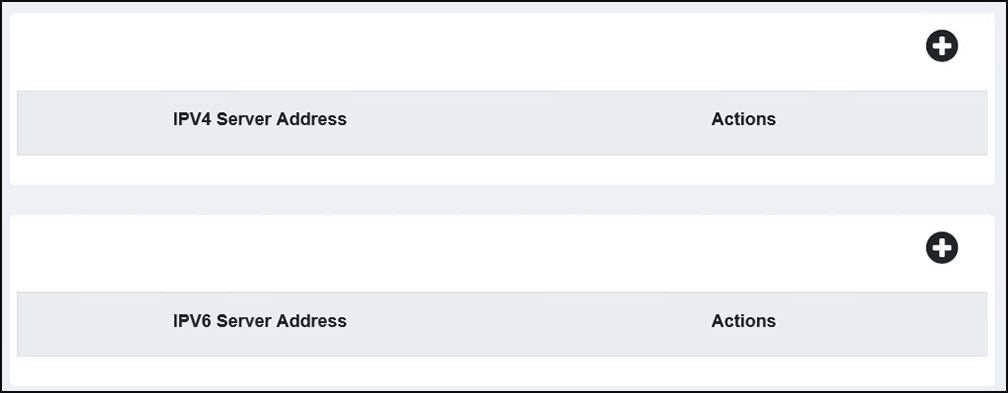

    DNS Server Addresses

  2. Select in the top right corner of the IPv4 Server Address table, to add an IPv4 server address.
    A new field is added in the IPv4 Server Address table.
    1. Enter the IPv4 address of the DNS server.
    2. Select > Apply to add the IPv4 DNS server address. You can add additional IPv4 addresses by clicking .
      Note: Only four IPv4 server addresses can be saved.
  3. Select in the top right corner of the IPv6 Server Address table to add an IPv6 server address.
    A new field is added in the IPv6 Server Address table.
    1. Enter the IPv6 address of the DNS server.
    2. Select > Apply to add the IPv6 DNS server address. Continue to select > to add IPv6 addresses.
      Note: Only four IPv6 server addresses can be saved.
  4. To delete an IPv4 or IPv6 server address, select for the corresponding IPv4 or IPv6 server address.
