Verifying the Available AP Capacity Licenses in the Controller
SmartZone provides AP capacity license information in two locations, each providing slightly different amounts of information.

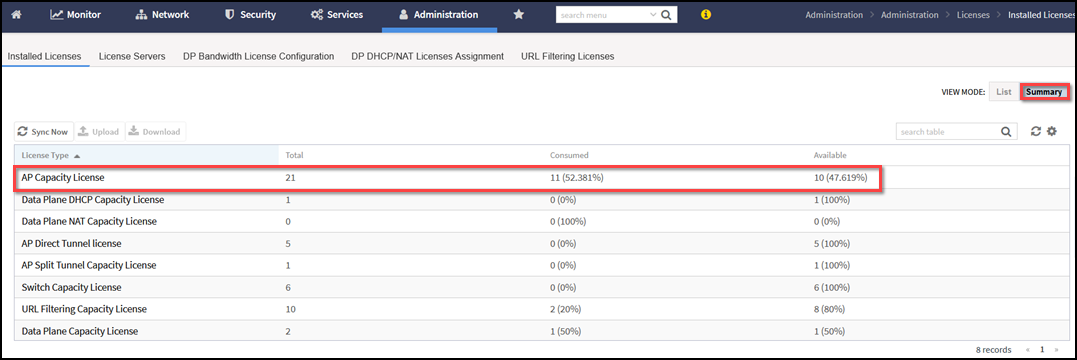

- Navigate the main menu, clicking .
- Change the view mode to Summary.
- Check the number of available
and consumed AP capacity licenses.
To view the number of total and consumed AP capacity licenses, execute the following steps:

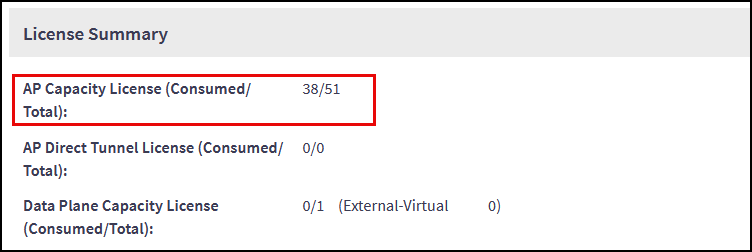

1. Navigate the main menu, clicking . In the About tab scroll to the License Summary section to view the tally of consumed AP Capacity licenses out of the total licenses obtained.
To check the licensing information from the CLI of the controller, refer to the RUCKUS SmartZone Troubleshooting and Diagnostics Guide
