Uploading AP CLI Scripts

You can upload AP CLI scripts to the controller to be able to run those scripts to all the APs present in the selected AP Zones. The controller displays an execution summary showing any successful or failed operations.
  1. From the main menu, click Monitor > Troubleshooting and Diagnostics > Scripts > AP CLI Scripts.
  2. From the domain tree, select the domain to apply the script.
  3. Click Upload.

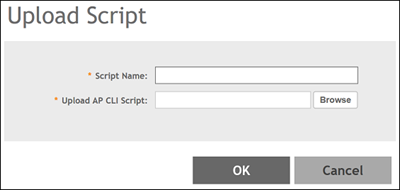

    The Upload Script dialog box is displayed.

    Uploading Scripts

  4. For Script Name, enter the name of the script you want to upload.
  5. For Upload AP CLI Script, click Browse to select an AP CLI script that you want to upload.
  6. Note: Follow these rules to ensure scripts work:
    # A sample for AP CLI Script
# Specific AP Model to run this script,
# skip this part if there is no need to restrict AP Model
model=R770,R760

# Below are commands to be executed on APs
set provisioning-tag ruckus123
set beacon-interval wlan0 600
set blacklist wlan0 8 -1
set blacklist wlan0 9 -1
set blacklist wlan0 rx_phyerr 20000
set http enable
set https disable
set ssh disable
set dns ipv4 111.1.1.1 222.1.1.1
    Click OK to upload the script.
Parent topic: AP CLI Scripts
