Using the Health Dashboard Map View
For SZ144 and vSZ-E platforms, use the AP Status pull-down menu to configure which AP health parameters will be displayed on the AP icons on the map. Use the Display menu to display the client count or radio channel in use.
You can enable the map view and configure the
information displayed in tooltips when hovering over an AP on the map. Click the
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/icon_gear_25px=GUID-1EF797C8-DF6A-4181-802B-23F475D9BCF4=1=en-US=Low.png){kind=icon}
icon in
the upper-right corner of the HEALTH tab to access the

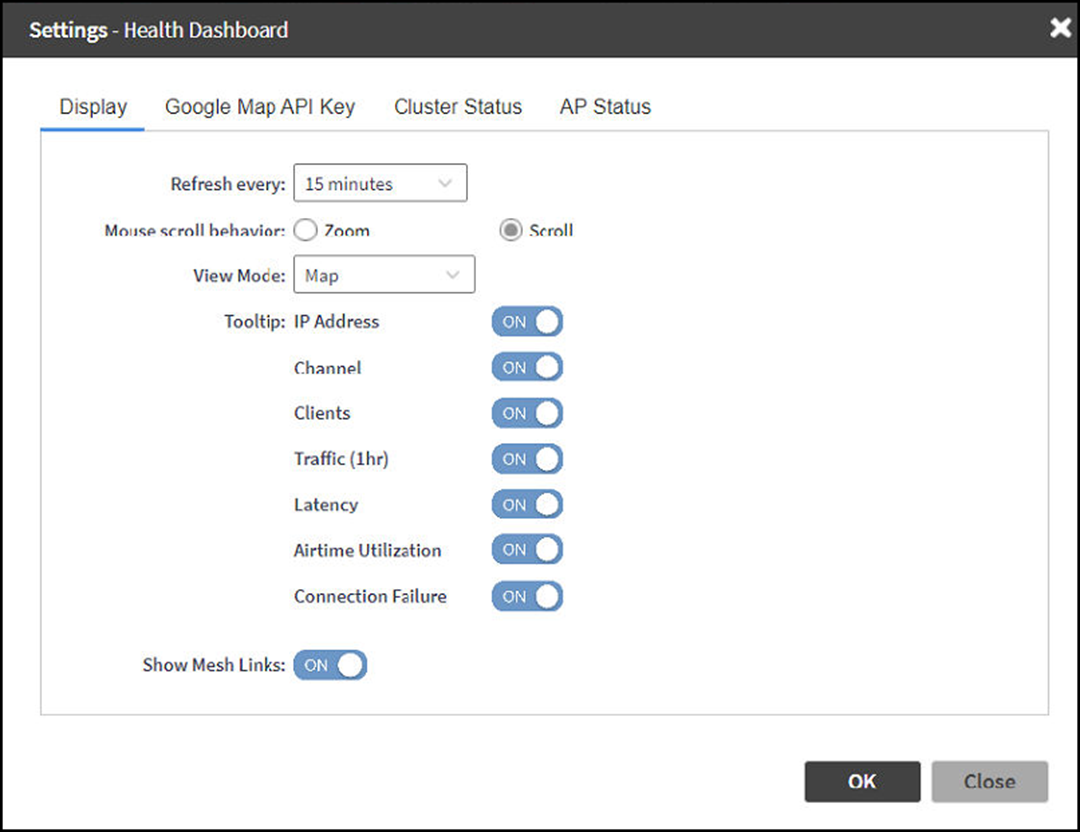

Settings - Health Dashboard pop-up, click the Display tab, and
select View Mode as Map. The individual
Tooltips and the Show mesh link option
are enabled by default, but you may disable them individually, as necessary. Click
OK to save and apply your changes.
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/Settings%20-%20Health%20Dashboard=GUID-3D138BD2-1479-46D6-96EF-4FD77A74C99D=1=en-US=Low.png)

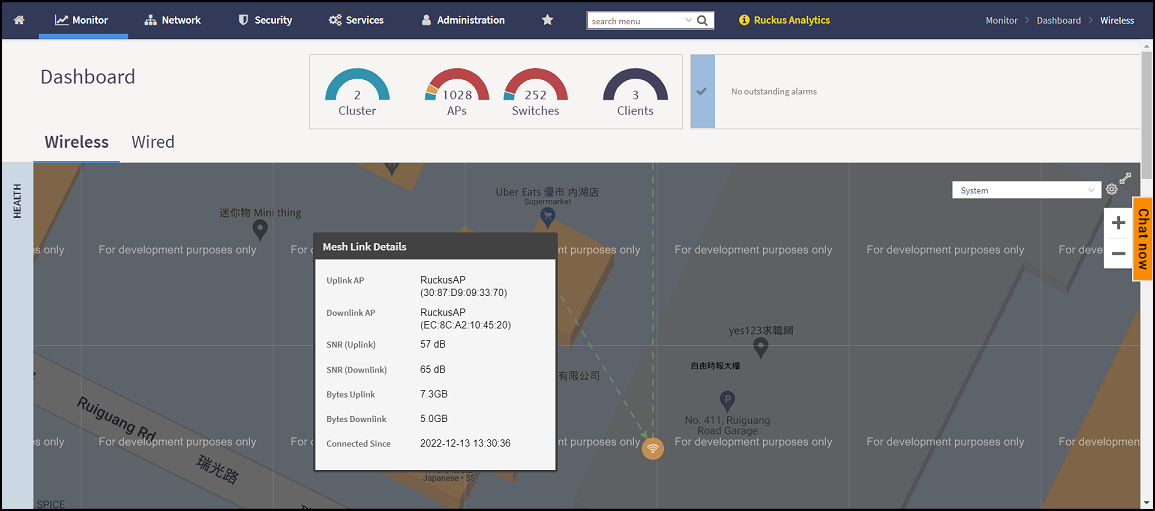

Mesh links appear as dotted lines. If you hover over the mesh link on the map, a pop-up appears displaying more information such as the following:
- Uplink AP: displays the IP address of the uplink AP to which the wireless client sends data
- Downlink AP: displays the IP address of the downlink AP from which data is sent back to the wireless client
- SNR (Uplink): displays the signal-to-noise ratio in the uplink path
- SNR (Downlink): displays the signal-to-noise ratio in the downlink path
- Bytes (Uplink): displays the bytes of data transferred from the client to the uplink AP
- Bytes (Downlink): displays the bytes of data transferred from the downlink AP to the client
- Connected Since: displays the date and time when the mesh connection was established
Bytes (Uplink) and Bytes (Downlink) are aggregate counters for the mesh connection since the start of that mesh connection. If the mesh link is broken and restarts, the counter restarts. If the mesh AP connects to a different mesh root or uplink, the counter restarts.
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/Mesh_Link_Details=GUID-CA58AD46-E3E4-430D-A45E-26EFDB628833=2=en-US=Low.png)

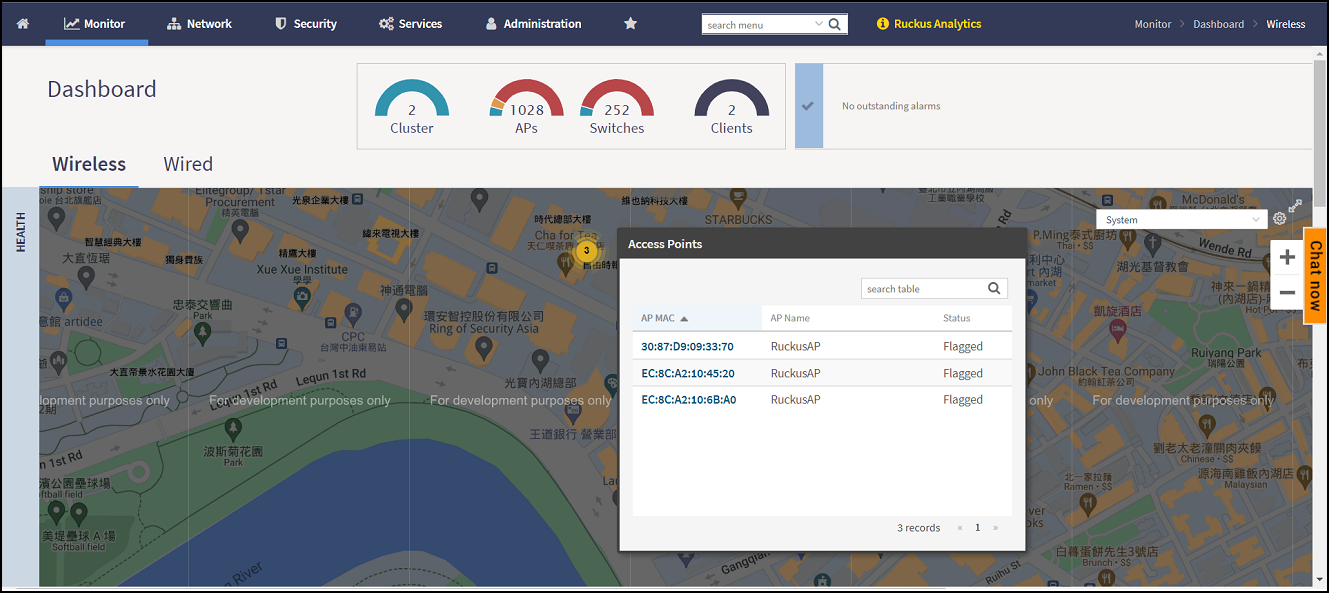

You can view and identify APs with the same GPS. If you hover over and click the clustered marker of AP on the map, a pop-up appears displaying more information such as the following:
- AP MAC: Displays the MAC address of the AP
- AP Name: Displays the name assigned to the access point
- Status: Displays the status of the AP such as Online or Offline
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/AP_Details=GUID-407C7FFE-822C-4A06-80A5-E17EDA38AE0F=1=en-US=Low.png)
If Google Maps are not working due to an API key problem, you are prompted with an option to Configure the Google API key. Click the option. The Settings- Health Dashboard pop-up appears, displaying the Google Map API Key tab. Follow the on-screen instructions to configure the map options.
