Assigning a Power Profile on Wi-Fi 7 Access Points
You can assign a power profile at the Zone, AP Group, or individual AP level.
Refer to Feature Overview for a comprehensive explanation of Power Profiles.
To assign a power profile to an individual AP, follow these steps:

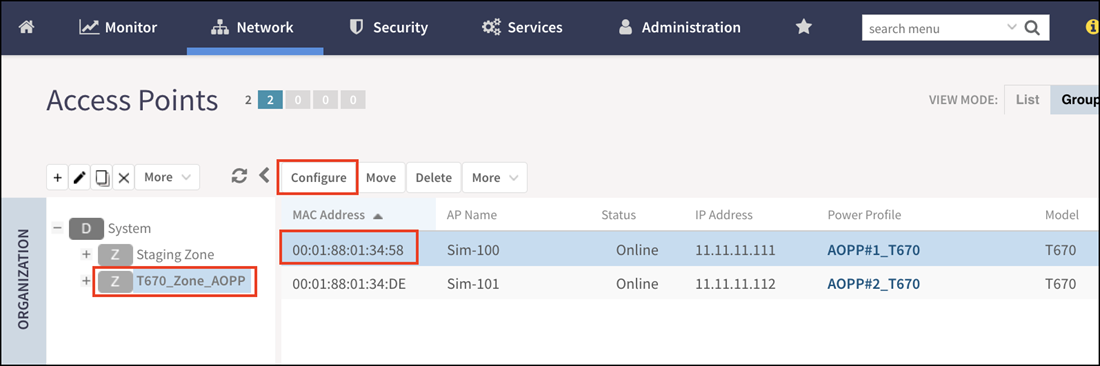

- From the main menu, navigate to .
- From the list, select the AP for which you want to apply model-based settings and click Configure.

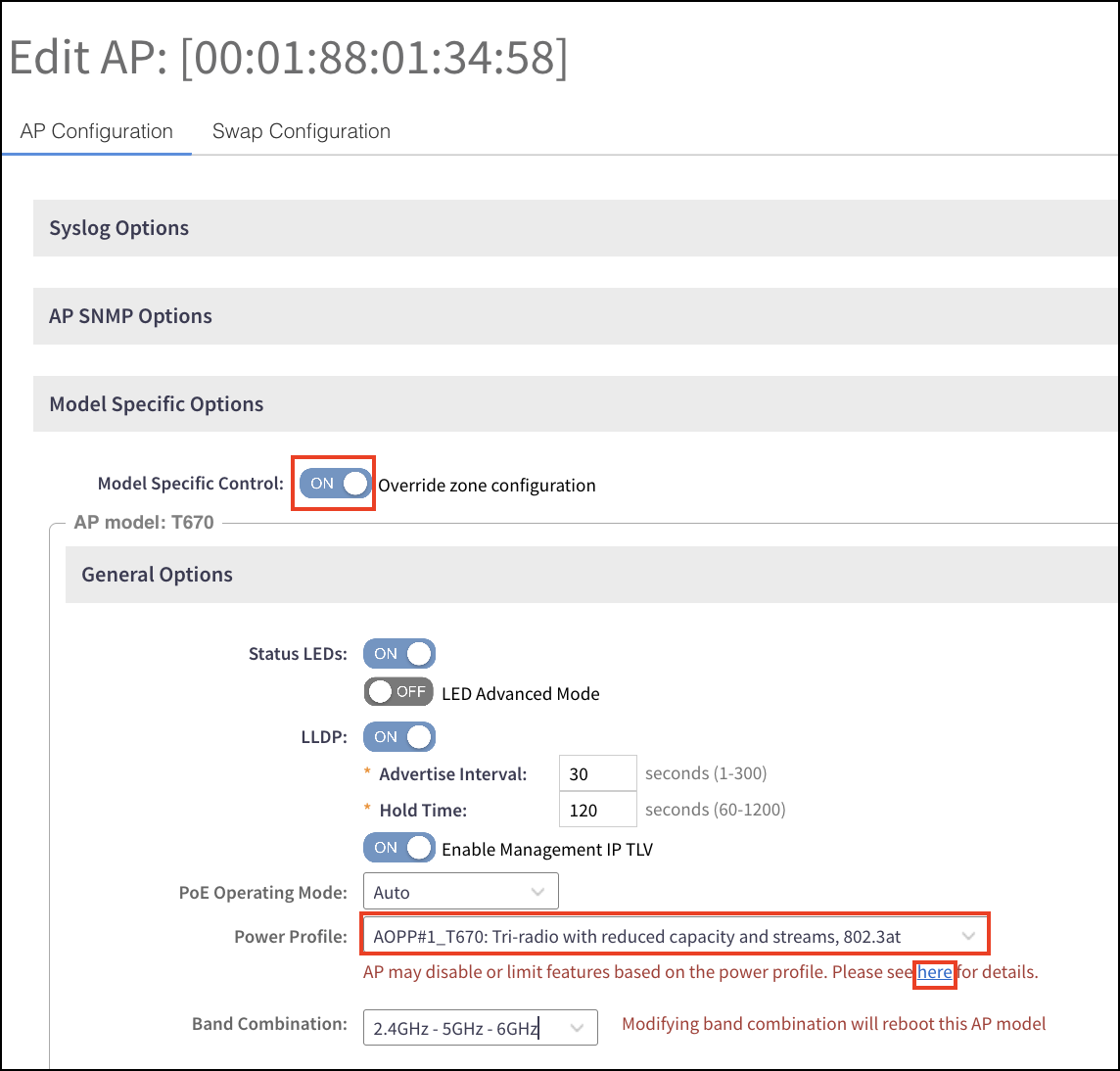

- Scroll to Model Specific Options and toggle on the Model Specific Control to enable Override zone configuration.

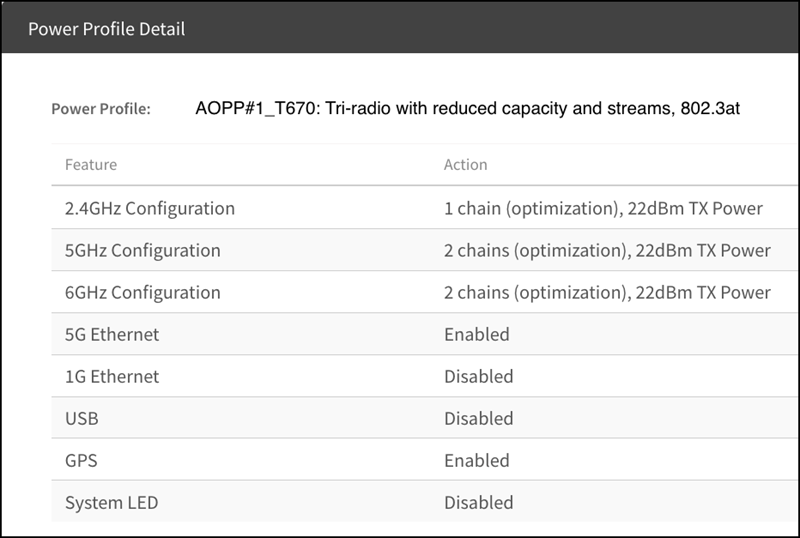

- In the General Options sub-section, for Power Profile, use the drop-down to select the profile you want to apply. You can view the Power Profile Detail of each AOPP profile by selecting the profile using the drop-down menu and clicking the here hyperlink in the tool tip.
- Click OK to save the configuration. The selected power profile is applied to the AP immediately and no AP reboot is required.
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/FIGURE%201%20Selecting%20the%20Power%20Profile=GUID-305F2F60-2331-4BD6-9DD9-F97F9C171304=1=en-US=Low.png "Selecting the Power Profile")
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/Configuring%20an%20AOPP-NEw%20UI=GUID-B57FD518-9B2D-4CC1-B0B2-A604D910C93D=1=en-US=Low.png "Configuring an AOPP")
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/Viewing%20the%20Power%20Profile%20Details-new=GUID-480AC7DA-F188-4356-96A2-4D677DDD64D6=1=en-US=Low.png "Viewing the Power Profile Details")
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/Power%20Profile%20Details%20for%20R575%20AP=GUID-93906958-1C6A-48F0-AC7B-FA8535D1E69C=1=en-US=Low.png)
Similarly, you can assign the Power Profile option at the Zone or AP Group levels by editing the AP Model Specific Configuration for the required AP model at the Zone or AP Group.

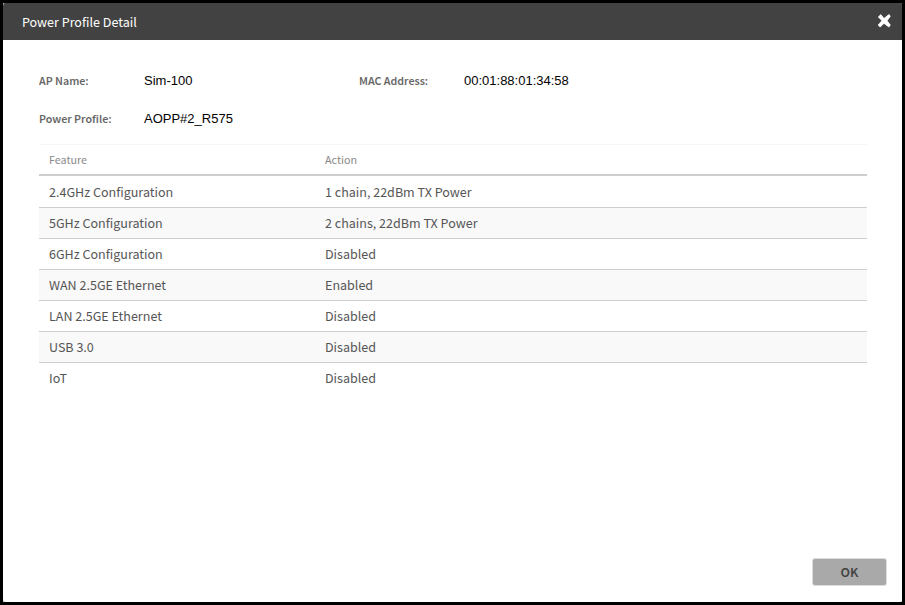

The configured AOPP profile applies at the Zone, AP Group, or AP level. The AP dynamically adjusts feature availability based on the profile and PoE operating mode. Any transmission reductions or feature disablements appear in the Power Profile Detail view and affect AP behavior immediately.
