Configuring AP Switchover

5.0 Update
5.1.1 update - SZ300/vSZH (Staging Zone), SZ100/vSZE (Default Zone)
AP switchover is the moving of APs between clusters, and is not confined to clusters that enable cluster redundancy. For normal clusters, you can switchover APs with firmware later or equal to R5.0, regardless of whether it is in the Staging or Non-staging Zone in High-scale platform and Default or Non-default Zone in the Essentials platform. But for a standby cluster in cluster redundancy, APs in the Staging or Default Zone can only be moved to another cluster by switchover.
Note: Refer to the RUCKUS SmartZone Controller Administration Guide for additional information about cluster redundancy and cluster redundancy roles such as Active, Standby, and other rules to apply.
The following task configures APs to switchover clusters:
  1. From the Network > Wireless > Access Points page, select an AP.
  2. Click More and select Switch Over Clusters.

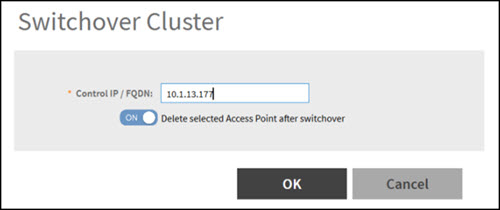

    The specify Switchover Cluster dialog box appears.
  3. Enter Control IP or FQDN
  4. Toggle the Delete selected Access Point after switchover button to ON. This setting automatically deletes the selected APs after the switchover completes.
  5. Click OK. A confirmation dialog to trigger the AP switchover appears.
  6. Click Yes.
    You have configured AP switchover.

    Configuring Switchover Cluster

    Configuring Switchover Cluster
Parent topic: AP Switchover
