Health

The status bar at the top of the Dashboard contains semi-circle pie charts representing the total number of Clusters, APs, Switches, and Client for the entire system. The Health tab in the dashboard gives you overview of the status of wireless devices such as cluster, AP and clients, and wired devices such as ICX switches. It includes different view modes such as topology or ball representation of the network hierarchy as well as the google maps option for the wireless subtab.

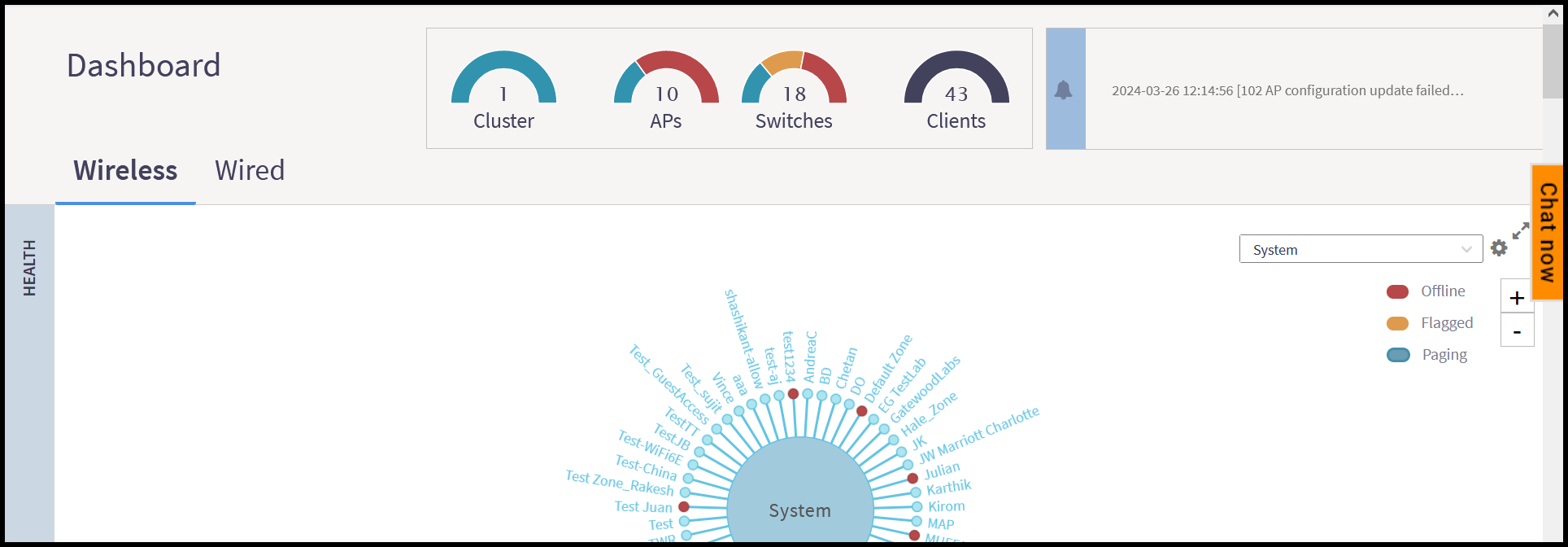

Dashboard Main Panel

Dashboard Main Panel

You must click Wireless or Wired in the dashboard to view the respective devices.

The status bar at the top of the Health dashboard contains an iconic representation of the total Cluster, AP and Client counts for the entire system.

Health Workspace Area

The Wired devices section provides information about the health of the switch and the traffic it handles.

In this section:

  1. Understanding Cluster and AP Health Icons
    The Health dashboard status bar displays the following Cluster and AP information using three colored icons to denote the number of APs/clusters currently in that state.
  2. Customizing Health Status Thresholds
    You can customize the way the controller categorizes and displays clusters and APs shown in “Flagged Status” in the status bar.
  3. Using the Health Dashboard Map View
    Use the Google Maps view just as you would normally use Google Maps - including zoom, satellite view, rotate and even street view icons. You can customize the AP icon information displayed on the map using the tools in the upper-right hand corner.
  4. Configuring the Google Map API Key Behavior
    Refer to the RUCKUS SmartZone Controller Administration Guide for detailed explanation of configuring the Google map API key behavior.
Parent topic: Health
