LED Advanced Mode
The LED Advanced Mode enables or disables
LED control features beyond the basic On/Off toggle button.

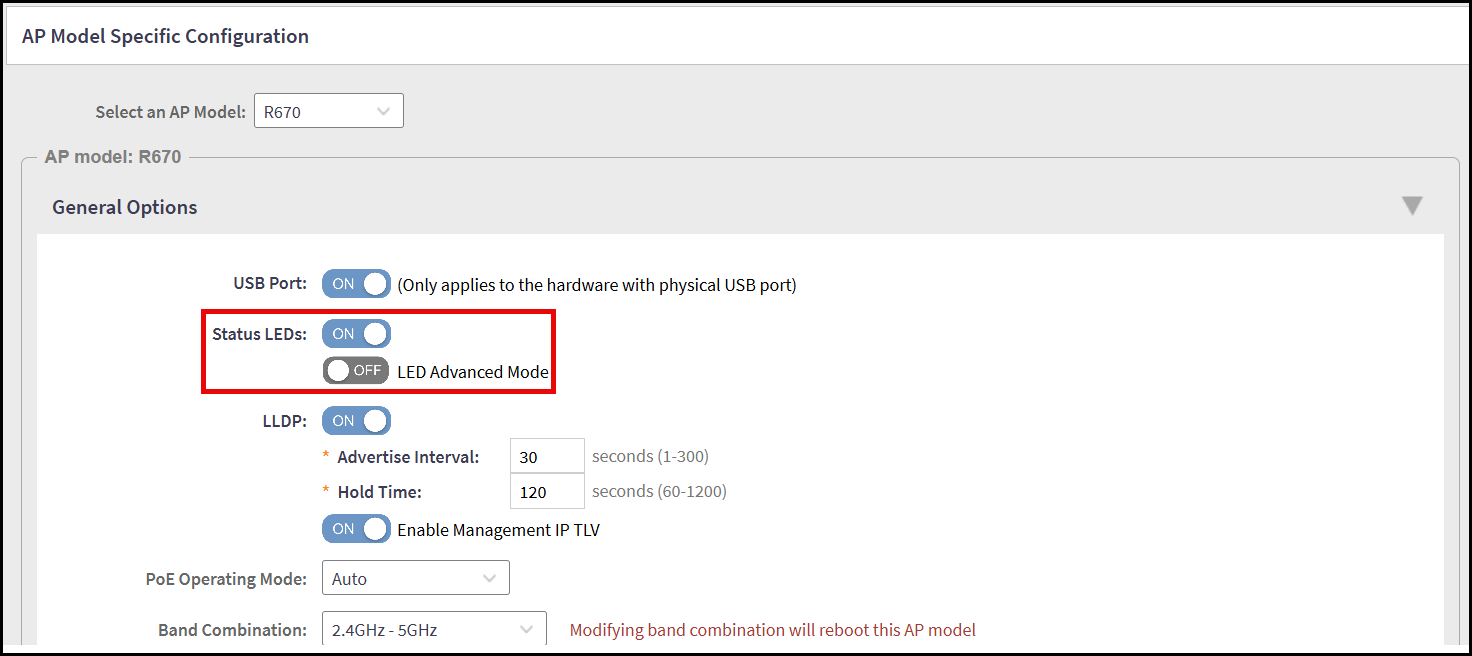

The Advanced LED Mode provides users with additional visual indicators through light patterns, offering more detailed information about client connections. This option is available for specific AP models with a single LED and can be configured at the Zone, AP Group, or individual AP level. The LED Advanced Mode toggle button appears only when the Status LEDs option is enabled. By default, LED Advanced Mode is set to OFF state.
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/LED%20Advanced%20Mode=GUID-F97AC8A0-680C-4B39-890D-F243161938D8=1=en-US=Low.png)

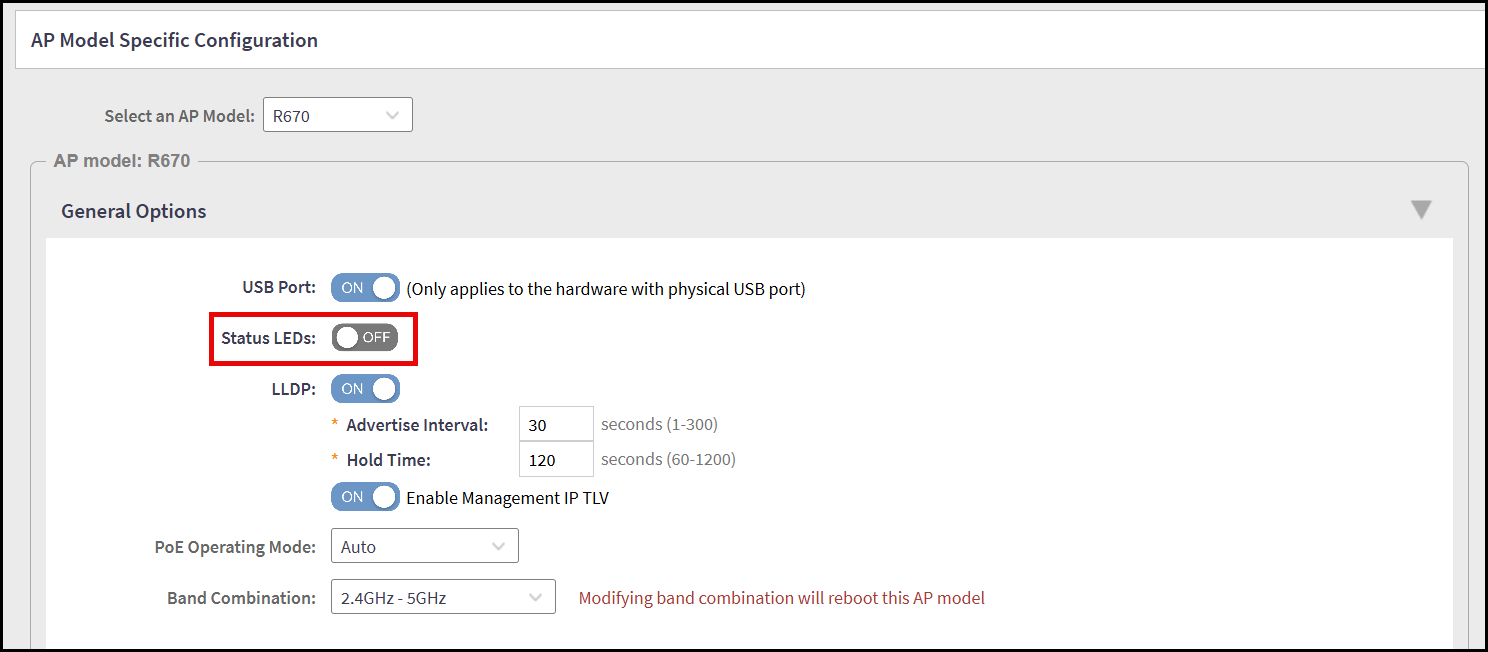

Note: The LED Advanced Mode
toggle button is visible only when the Status LEDs toggle
button is ON
state.
%20Access%20Points%20and%20Switch%20Management%20Guide%207.2.0_v2_GUID-A7E97382-FE30-4D84-8798-282DAD40F0B6/Status%20LEDs%20Off=GUID-A95F166F-C8C0-41A4-9720-BC25AF753742=1=en-US=Low.png)
LED Light Patterns to Indicate Client Connectivity
| Mesh Link Established/Client Connected? | LED Advanced Mode Disabled (By Default) | LED Advanced Mode Enabled |
|---|---|---|
| No mesh link established at least one client is connected. | Solid Green | Slow blinking Green |
| Mesh link is formed (uplink/downlink) and at least one client is connected. | Solid Green | Slow blinking Green/Amber |
| No client is connected (Mesh or Non-Mesh) | Solid Green | Solid Green |
The following are the AP models with a single LED that supports LED Advanced Mode:
