Customizing AP Flagged Status Thresholds

Use the following procedure to customize when APs will be marked as "flagged" on the Health dashboard status bar.
  1. Click the Gear icon on the Health dashboard.

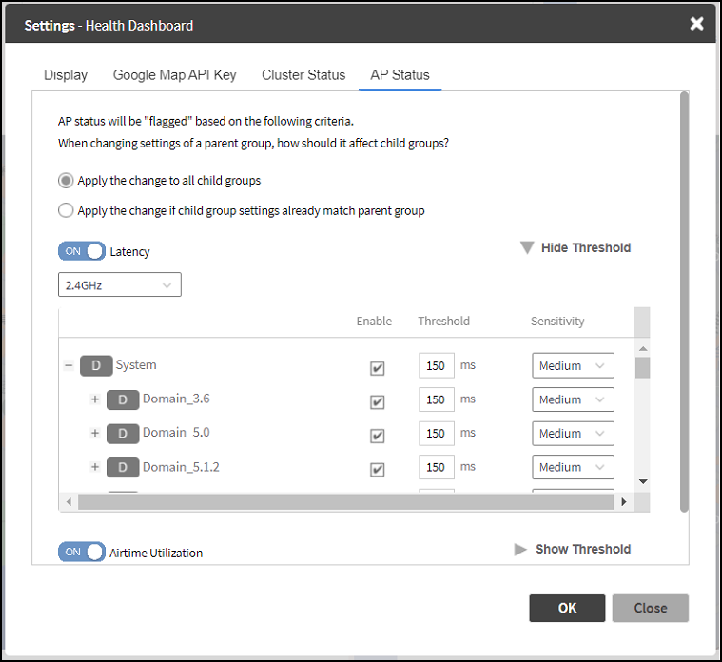

  2. The Settings - Health Dashboard pop-up window appears. Click the AP Status tab.
  3. Select the behavior of flagging policies when applying changes to parent or child groups:
    • Apply the change to all child groups
    • Apply the change if child group settings already match the parent group
  4. Configure thresholds above which APs will be marked as "flagged" for the following criteria:
    • Latency
    • Airtime Utilization
    • Connection Failures
    • Total connected clients
  5. Configure the radio (2.4 GHz /5 GHz/6 GHz) from the drop-down menu and select the level (system, zone, AP group) at which you want to apply the policy, and configure the Sensitivity control for the threshold (Low, Medium, High). Setting the Sensitivity level to Low means that an AP must remain above the threshold for a longer period of time before it will appear in the flagged category, while a High sensitivity means that APs will more quickly alternate between flagged and non-flagged status.
  6. Click OK to save your changes.

    Configuring AP Flagged Status Thresholds

Parent topic: Customizing Health Status Thresholds
