Two-Post Rack Mount Installation (ICX-RMK-4POST-TL)

This is an optional kit that is not included with the base system.

The RUCKUS ICX 7550 can be installed in a two-post rack in various mounting positions, as shown in the following figure.

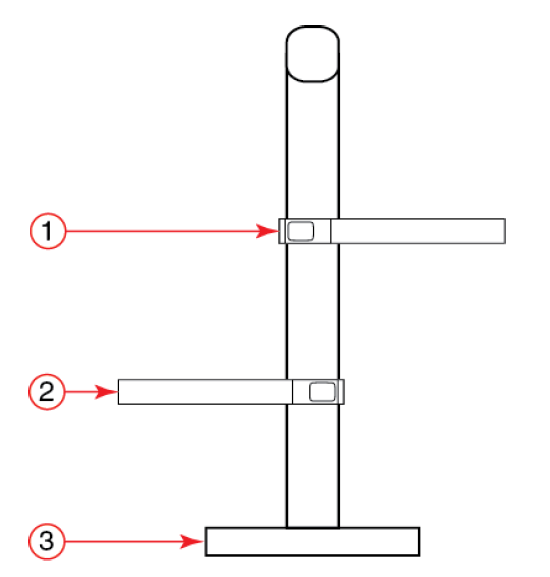

Two-Post Rack Mounting Positions (ICX-RMK-4POST-TL)

  1. Front flush mount
  2. Rear mount
  3. Two-post rack, side view

Use the instructions in the following sections to install the RUCKUS ICX 7550 switch into two-post Telco racks using the front brackets in the four-post flush-mount rack kit (ICX-RMK-4POST-TL).

Note: Hardware devices illustrated in these procedures are only for reference and may not depict the device you are installing into the rack.

Time and Items Required

Allow 15 to 30 minutes to complete the installation.

The following items are required to install the device using the four-post flush-mount rack kit (ICX-RMK-4POST-TL):

  • #2 Phillips torque screwdriver
  • 1/4-inch slotted-blade screwdriver

Parts List

The parts provided in the four-post flush-mount rack kit (ICX-RMK-4POST-TL) are illustrated in the following figure.

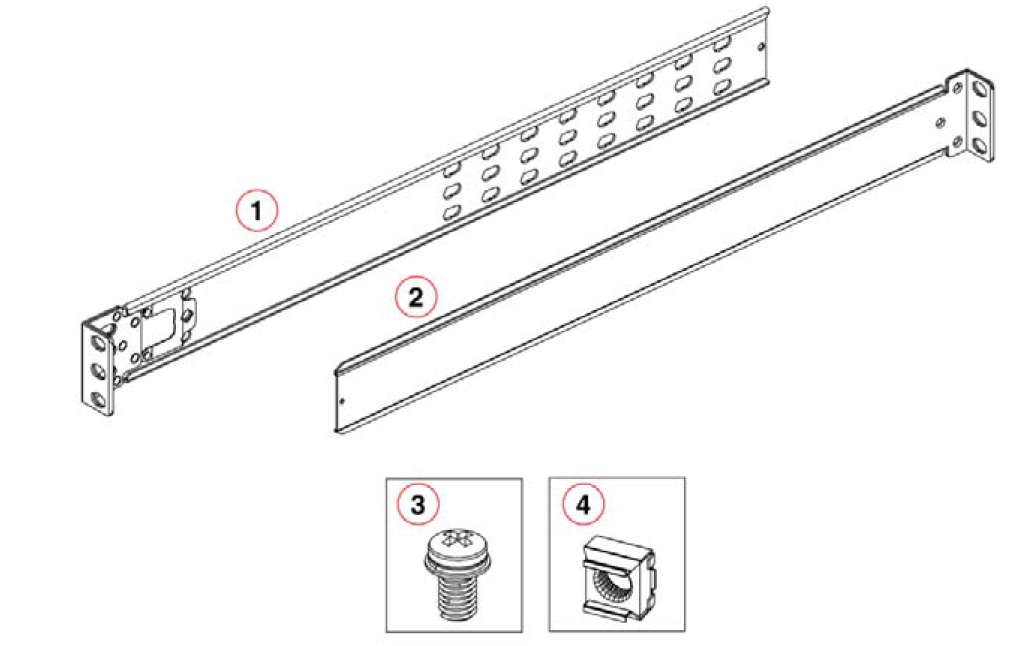

Items in the Four-Post Flush-Mount Rack Kit

  1. Front brackets (2)
  2. Rear brackets (2)
  3. Screw, 10-32 x 5/8-inch, panhead Phillips (12)
  4. Retainer nut, 10-32 (12)

Ensure that the items listed and illustrated in the preceding figure are included in the kit.

In this section:

  1. Flush-Front Mounting
