For a list of supported transceivers and
cables, refer to the RUCKUS Optics Family Data Sheet.
Breakout cables
The RUCKUS ICX 7550 can support the
following breakout cables:
Breakout Cables Supported on
the RUCKUS ICX 7550
Ports
Description
40G QSFP+ or 100G QSFP28 Ports:
E40G-QSFP-SR4-INT
40GBASE-SR4 QSFP+ optic (MTP 1x8 or 1x12), 100m over MMF,
compatible with 10GBASE-SR, 10G breakout-capable, 1-pack
E40G-QSFP-LR4-INT
40GBASE-LR4 QSFP+ to 4 SFP+ optic (MTP 1x8 or 1x12), for up to 10
km over SMF
E40G-QSFP-4SFP-AOC-1001
4x10GbE Direct Attach QSFP+ to 4 SFP+ Active Optical Breakout
Cable, 10m
E40G-QSFP-4SFP-C-0101
4x10GbE Direct Attach QSFP+ to 4 SFP+ Active Copper Breakout
Cable, 1 m
E40G-QSFP-4SFP-C-0301
4x10GbE Direct Attach QSFP+ to 4 SFP+ Active Copper Breakout
Cable, 3 m
E40G-QSFP-4SFP-C-0501
4x10GbE Direct Attach QSFP+ to 4 SFP+ Active Copper Breakout
Cable, 5 m
100G QSFP28 Ports Only:
E100G-QSFP28-SR4
100GBASE-SR4 QSFP28 optic (MTP 1x12), for up to 100 m over
MMF
E100G-QSFP-4SFP-P-0101
4x25GE Direct Attached QSFP28 to 4 SFP28 PASSIVE Copper Breakout
Cable, 1m, 1-pack
E100G-QSFP-4SFP-P-0301
4x25GE Direct Attached QSFP28 to 4 SFP28 PASSIVE Copper Breakout
Cable, 3m, 1-pack
E100G-QSFP-4SFP-P-0501
4x25GE Direct Attached QSFP28 to 4 SFP28 PASSIVE Copper Breakout
Cable, 5m, 1-pack
E100G-QSFP-ESR4
100GBASE-ESR4 QSFP+ optic (MTP 1x8 or 1x12), for up to 300m over
MMF

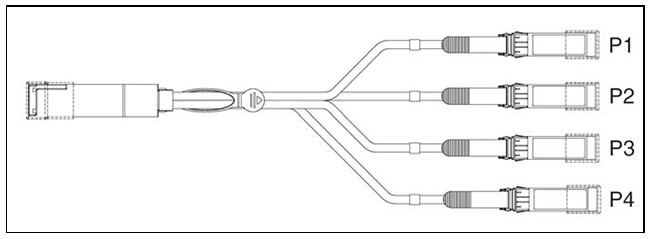

QSFP+ to 4 SFP+ (4x10 GbE) breakout cable
The RUCKUS ICX 7550 ports available
for breakout are shown for each model in the following table:
RUCKUS ICX 7550 Breakout
Ports
Model
Front Panel Slot 1 Ports
Front Panel Slot 2 Ports
ICX 7550-24/24P/24F/24XZP/24ZP
Not applicable
1/2/1-1/2/2 40 GbE
1/2/2 100 GbE
(ICX7550-24F/24XZP/24ZP only)
ICX 7550-48/48P/48F/48ZP
Not applicable
1/2/1-1/2/2 40 GbE
1/2/2 100 GbE
(ICX7550-48F/48ZP only)
QSFP+ to SFP+ Adapter
Support
The RUCKUS ICX 7550 supports a
third-party QSFP+ to SFP+ adapter for cost-effective connections between 40 GbE
QSFP+ ports and 10 GbE hardware using standard SFP+ optical cabling rather than
breakout cables.
An SFP+ transceiver (SR, LR, or USR) inserted in the QSFP+ to SFP+ adapter behaves
as
if it is connected to the first of the four breakout ports on the 40 GbE QSFP+
interface with no other ports available in the breakout. The 4x10 GbE breakout mode
must be configured on the QSFP+ interface.
Note: RUCKUS has not qualified a QSFP28
to SFP28 adapter.
10G-SFPP-TX-A Transceiver
Support
The 10G-SFPP-TX-A transceiver consumes
significantly more power than typical 10G transceivers. This section provides
guidelines for deploying the 10G-SFPP-TX-A transceiver within the power capabilities
of the supported ICX 7550 switches.
If the guidelines in this section are not followed, there is a risk of system
instability and/or reboot.
Follow the guidelines provided in the following table to avoid a power violation.
For each 10G-SFPP-TX-A transceiver installed, another SFP+ slot MUST be left empty.
For example, if you are using four 10G-SFPP-TX-A transceivers, you must leave four
SFP+ ports empty.
RUCKUS ICX 7550 10G-SFPP-TX-A
and ICX7550-4X25GF Transceiver Support
Model
10G-SFPP-TX-A Installed Location
For Each 10G-SFPP-TX-A Inserted, This Many SFP+ ports Must Remain
Unused
