Inserting a New AC Power Supply

Use the following steps to install an AC power supply (the 400 watt or 1200 watt power supply) in the RUCKUS ICX 7550 switch.

Note: The AC PSU uses a C14 connector for the AC power inlet. The mating connector is a C13 connector.

Installing an AC Power Supply Unit

  1. If replacing a power supply:
    1. Remove the AC power cord.
    2. Remove the installed power supply from the slot by pressing the green/orange release tab toward the power supply handle and pulling out the power supply.
  2. If installing a new power supply into a slot covered with a filler panel:
    1. Using a Phillips screwdriver, unscrew the screws on the filler panel.
    2. Remove the filler panel.
  3. Before opening the package that contains the power supply, touch the bag to the switch casing to discharge any potential static electricity. RUCKUS recommends using an ESD wrist strap during installation.
  4. Remove the power supply from the anti-static shielded bag.

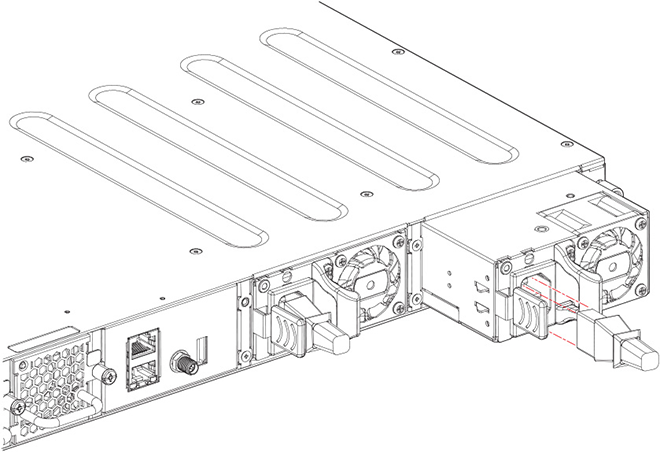

  5. Holding the power supply level, guide it into the carrier rails on each side and gently push it all the way into the slot, ensuring that it firmly engages with the connector. At the same time, the release tab should also snap into the locking hole.
  6. Insert the power cord into the AC power inlet.

When the RUCKUS ICX 7550 switch is powered on, the LED on the power supply rear panel should light up green to confirm that the power supply is correctly installed and supplying power.

Caution: Empty fan assembly and power supply slots must be covered using filler panels.
