Nonport-Side View of the RUCKUS ICX 7550 Switch

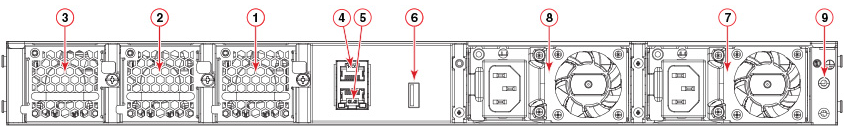

Nonport-Side View of ICX 7550-24 and ICX 7550-48 (with 400 AC Power)

  1. Fan assembly 1
  2. Fan assembly 2
  3. Fan assembly 3
  4. RJ-45 console port
  5. Out-of-band management port
  6. USB port (for flash drive)
  7. Power supply unit 2
  8. Power supply unit 1
  9. Grounding terminal

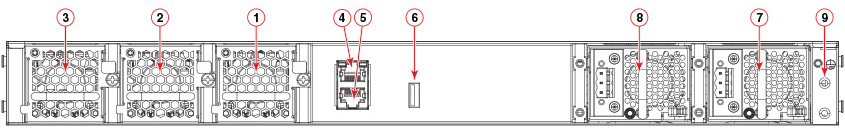

Nonport-Side View of ICX 7550-24 and ICX 7550-48 (with 400 DC Power)

  1. Fan assembly 1
  2. Fan assembly 2
  3. Fan assembly 3
  4. RJ-45 console port
  5. Out-of-band management port
  6. USB port (for flash drive)
  7. Power supply unit 2
  8. Power supply unit 1
  9. Grounding terminal

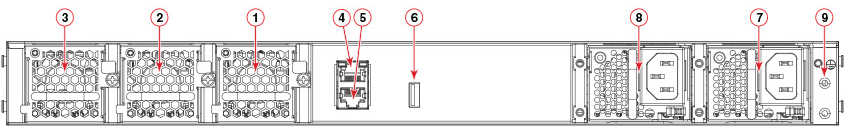

Nonport-Side View of ICX 7550-24P and ICX 7550-48P (with 1200 AC Power)

  1. Fan assembly 1
  2. Fan assembly 2
  3. Fan assembly 3
  4. RJ-45 console port
  5. Out-of-band management port
  6. USB port (for flash drive)
  7. Power supply unit 2
  8. Power supply unit 1
  9. Grounding terminal

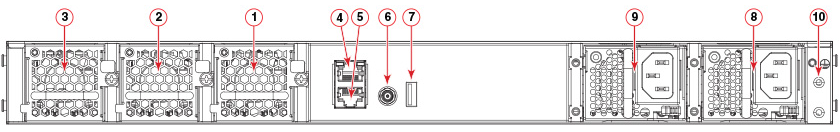

Nonport-Side View of ICX 7550-24ZP and ICX 7550-48ZP (with 1200 AC Power)

  1. Fan assembly 1
  2. Fan assembly 2
  3. Fan assembly 3
  4. RJ-45 console port
  5. Out-of-band management port
  6. External reference clock input
  7. USB port (for flash drive)
  8. Power supply unit 2
  9. Power supply unit 1
  10. Grounding terminal

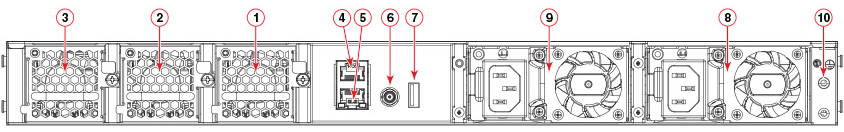

Nonport-Side View of ICX 7550-24F and ICX 7550-48F (with 400 AC Power)

  1. Fan assembly 1
  2. Fan assembly 2
  3. Fan assembly 3
  4. RJ-45 console port
  5. Out-of-band management port
  6. External reference clock input
  7. USB port (for flash drive)
  8. Power supply unit 2
  9. Power supply unit 1
  10. Grounding terminal

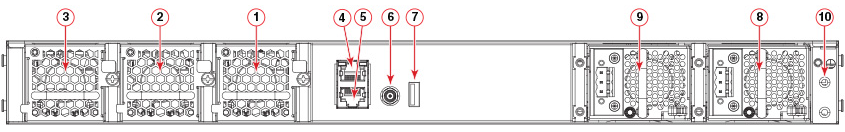

Nonport-Side View of ICX 7550-24F and ICX 7550-48F (with 400 DC Power)

  1. Fan assembly 1
  2. Fan assembly 2
  3. Fan assembly 3
  4. RJ-45 console port
  5. Out-of-band management port
  6. External reference clock input
  7. USB port (for flash drive)
  8. Power supply unit 2
  9. Power supply unit 1
  10. Grounding terminal

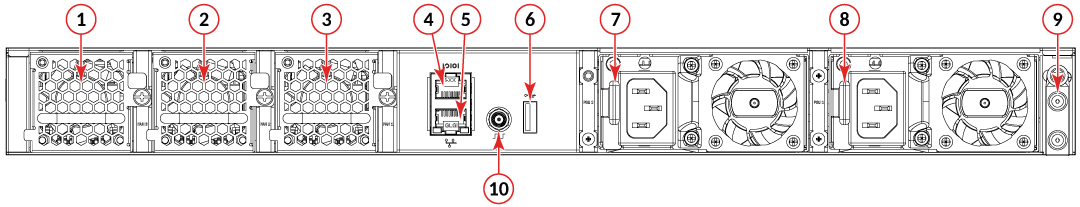

Nonport-Side View of ICX 7550-24XZP

  1. Fan assembly 1
  2. Fan assembly 2
  3. Fan assembly 3
  4. RJ-45 console port
  5. Out-of-band management port
  6. USB port (for flash drive)
  7. Power supply unit 2
  8. Power supply unit 1
  9. Grounding terminal
  10. External reference clock input
Parent topic: Device Overview
