Attaching the Front Brackets

Complete the following steps to attach the front brackets to the device.

1. Position the right front bracket with the flat side against the right side of the device over the eight keyhole fasteners, as shown in Attaching the Front Brackets.

2. Slide the bracket toward the front of the device until the bracket latch clicks into its secure position.
3. Repeat the preceding steps to attach the left front bracket to the left side of the device.

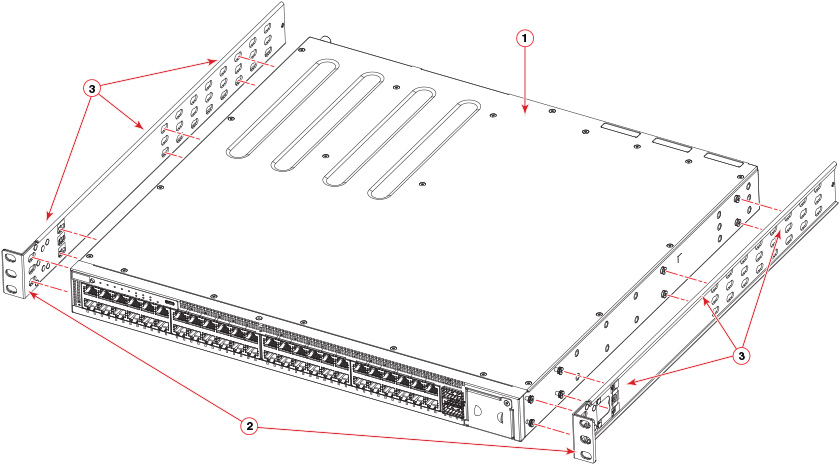

Attaching the Front Brackets

1. Top of the device
2. Front brackets
3. Keyhole fasteners
