ICX 7550 Stacking Topologies

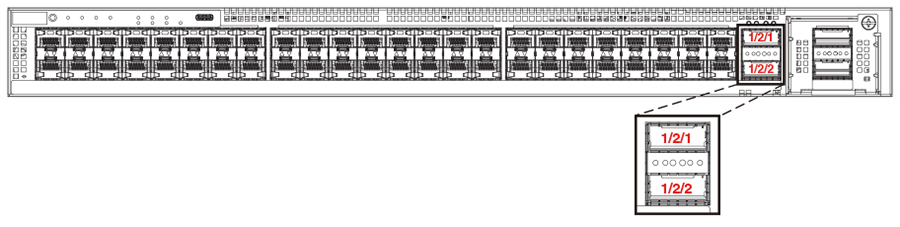

The following figures show available ICX 7550 stacking ports on the front panel. The model shown is an ICX 7550-48F. Although the front-panel port configuration varies among ICX 7550 models, all ICX 7550 models stack from Module 2, as shown.
Available front panel stacking ports are 1/2/1 and 1/2/2. These two ports form the ICX 7550 valid-stack-port set.

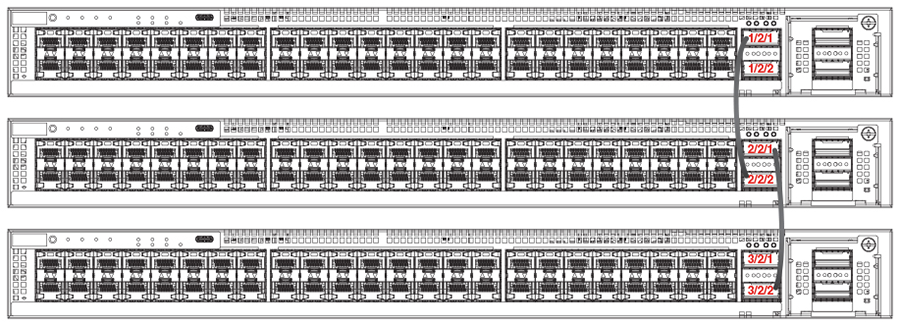

The following figure shows an ICX 7550-48F linear stack.

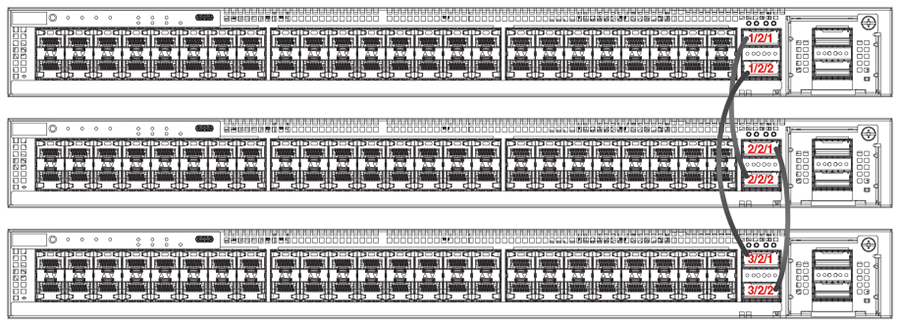

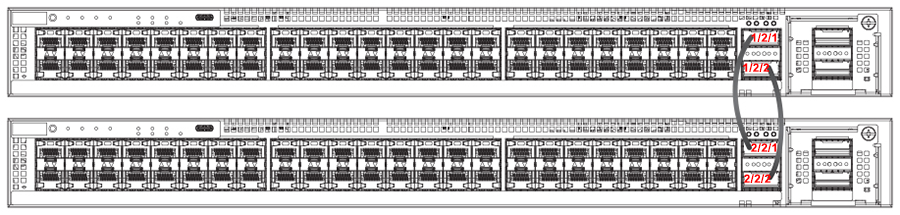

The following figure shows an ICX 7550-48F ring stack.
