Interpreting Nonport-Side LEDs

The RUCKUS ICX 7550 contains the following LEDs on the rear panel:

  • Power supply LEDs: Two single-color status LEDs (green) on each installed power supply
  • Fan assembly LEDs: One bicolor status LED (green and amber) on each installed fan assembly
  • Management port (RJ-45) LEDs: One for link/activity and one for speed. Each of these LEDs is green.
Note: The external reference clock input is not included in the ICX 7550-24, ICX 7550-48, ICX 7550-24P, and ICX 7550-48P models.

Rear Panels

The ICX 7550 supports the following types of rear panels for the specified models:

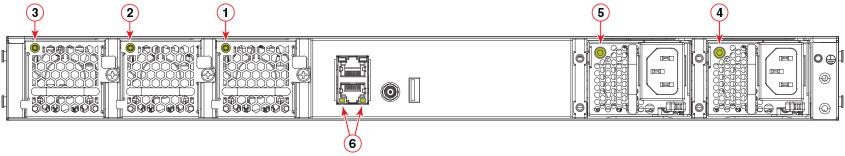

Rear-Panel LEDs for 400 AC Power Module: Used by ICX 7550-24, ICX 7550-48, ICX 7550-24F, and ICX 7550-48F

  1. Fan assembly 1 LED
  2. Fan assembly 2 LED
  3. Fan assembly 3 LED
  4. PSU1 status LED
  5. PSU2 status LED
  6. Management port (RJ-45): LED on left is for link/activity; LED on right is for speed

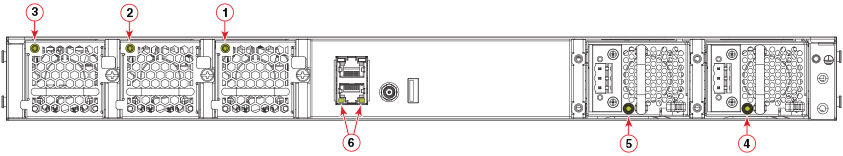

Rear-Panel LEDs for 400 DC Power Module: Used by ICX 7550-24, ICX 7550-48, ICX 7550-24F, and ICX 7550-48F

  1. Fan assembly 1 LED
  2. Fan assembly 2 LED
  3. Fan assembly 3 LED
  4. PSU1 status LED
  5. PSU2 status LED
  6. Management port (RJ-45): LED on left is for link/activity; LED on right is for speed

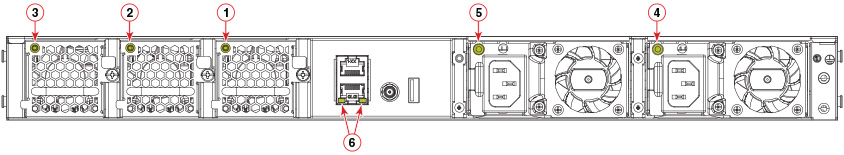

Rear-Panel LEDs for 1200 AC Power Module: Used by ICX 7550-24P, ICX 7550-48-P, ICX 7550-24ZP, and ICX 7550-48ZP

  1. Fan assembly 1 LED
  2. Fan assembly 2 LED
  3. Fan assembly 3 LED
  4. PSU1 status LED
  5. PSU2 status LED
  6. Management port (RJ-45): LED on left is for link/activity; LED on right is for speed

LED Patterns

400 AC and DC PSU LEDs

LED Color Status of Hardware Recommended Action
Off (no light) There is no power to this PSU. Check the input power connection.
Steady green PSU is on and functioning properly. No action required.
0.5 Hz flashing amber and green Power supply warning. Disconnect and reconnect input power. If the issue persists, replace the PSU.
Steady amber PSU is missing power or in a faulty state (such as PSU fan failure).
  • Verify that the PSU power cord is connected to a functioning power source.
  • Replace power supply.

1200 AC PSU LEDs

LED Color Status of Hardware Recommended Action
Off (no light) There is no power to this PSU. Check the input power connection.
Steady green PSU is on and functioning properly. No action required.
0.5 Hz flashing amber and green Power supply warning. Disconnect and reconnect input power. If the issue persists, replace the PSU.
Steady amber PSU is missing power or in a faulty state (such as PSU fan failure).
  • Verify that the PSU power cord is connected to a functioning power source.
  • Replace power supply.

Fan Tray LEDs

LED Color Status of Hardware Recommended Action
Off (no light) Fan assembly is not powered on. No action required.
Steady green Fan assembly is on and functioning properly. No action required.
Steady amber Fan assembly has non-functioning fans. Replace fan assembly.

Management Port Left LED Link Status

LED Color Status of Hardware Recommended Action
Off (no light) Offline. No action required
Steady green Link is up. No action required
Blinking green Packet transmission or reception. No action required

Management Port Right LED Speed Status

LED Color Status of Hardware Recommended Action
Off (no light) Offline or 10/100 Mbps No action required
Steady green Linked at 1000 Mbps No action required
