Connect the Administrative Computer to the Controller
Connect the administrative computer to controller either through the network or directly using an RS-232 serial to RJ45 cable.
- If you want to use an SSH connection, connect the administrative computer to the same subnet or broadcast domain as the Management (Web) interface of the controller.
- If you want to use a serial connection, make sure that both the administrative computer
and the controller are both powered on. And then, do the following:
-

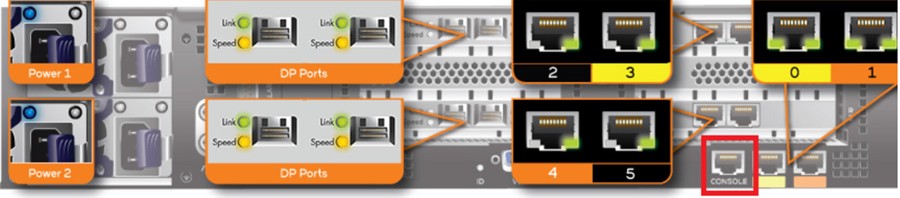

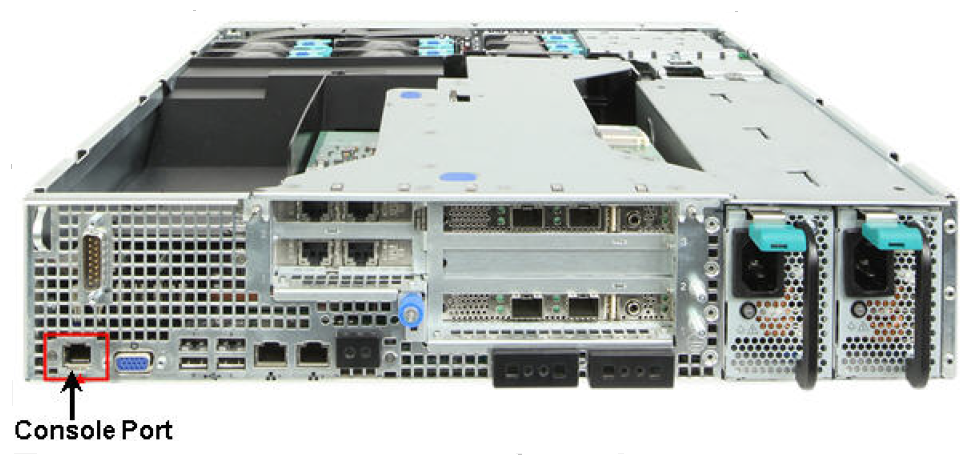

Connect the RJ45 end of the cable to the port labeled |O|O| (console port) on the controller. See SCG200 Location of console port for the location of the console port.
-
Connect the RS-232 end of the cable to a COM port on the administrative computer.
-
