Scheduling a Zone Firmware Upgrade

You can set up a scheduled date and time to upgrade/downgrade single or multiple zone firmware. After a zone firmware upgrade or downgrade task is executed, you can see the zone firmware change history.

Perform the following steps to schedule a zone firmware upgrade.

  1. On the menu, click Administration > Administration > Upgrade > Schedule Zone Firmware Upgrade to display the Schedule Zone Firmware Upgrade tab

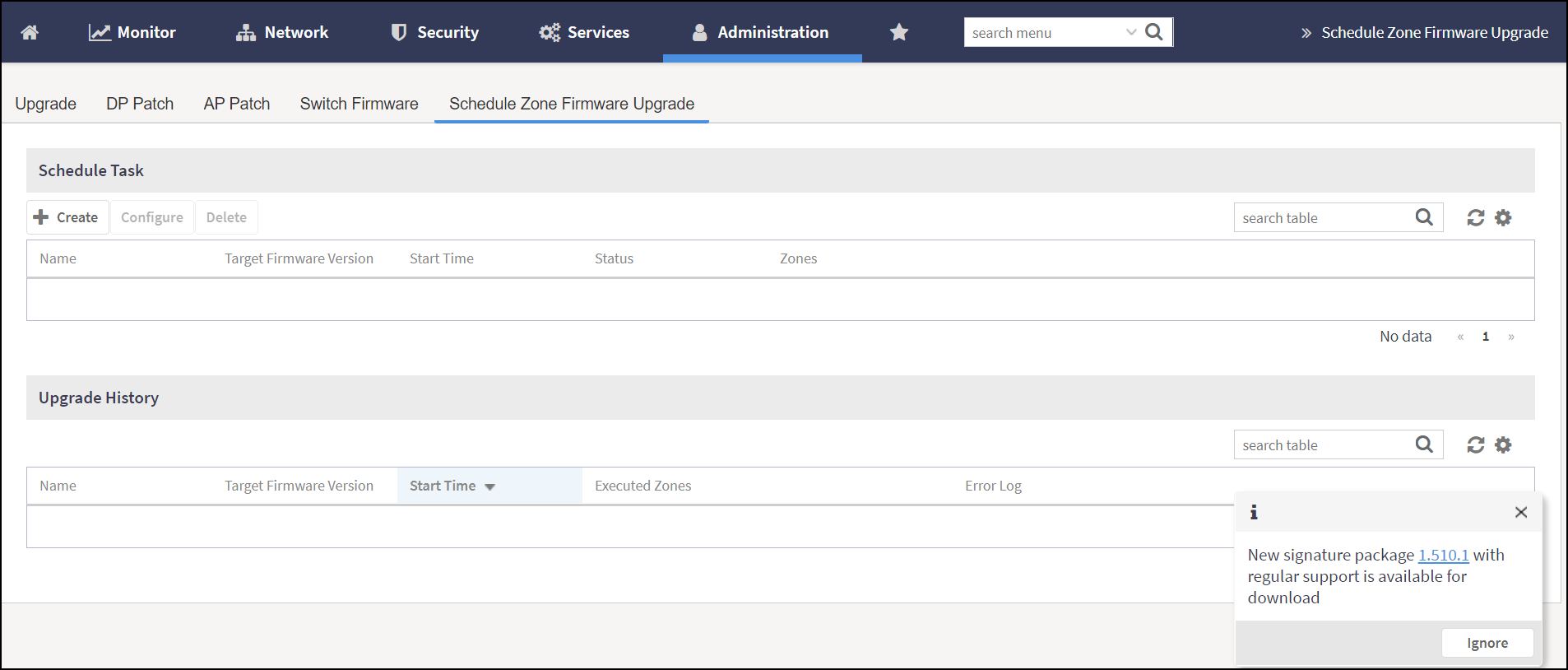

    Clicking the Schedule Zone Firmware Upgrade Tab

  2. Click Create to display the Create Schedule Zone Firmware Upgrade Task dialog box.
  3. Select a Zone or select many Zones by pressing the Ctrl key and selecting the Zones that you want to add to the Selected Zones field.
  4. Click the icon to move the selected zones to the Selected Zones tab. Click the icon to send any selected zones from Selected Zones back to the Select Zones.

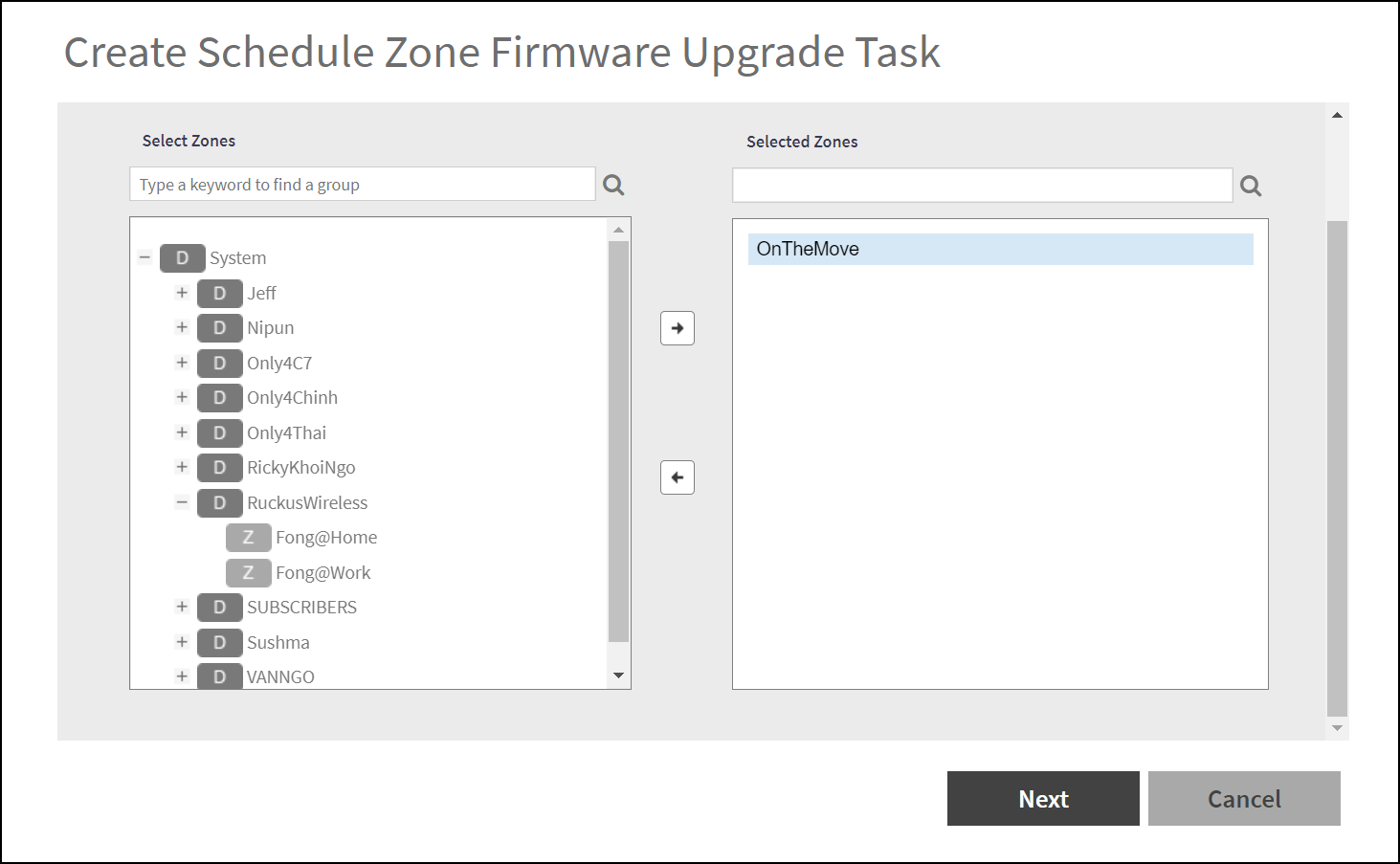

    Schedule the Zone Firmware Upgrade Task

  5. Click Next to display the Schedule dialog box.

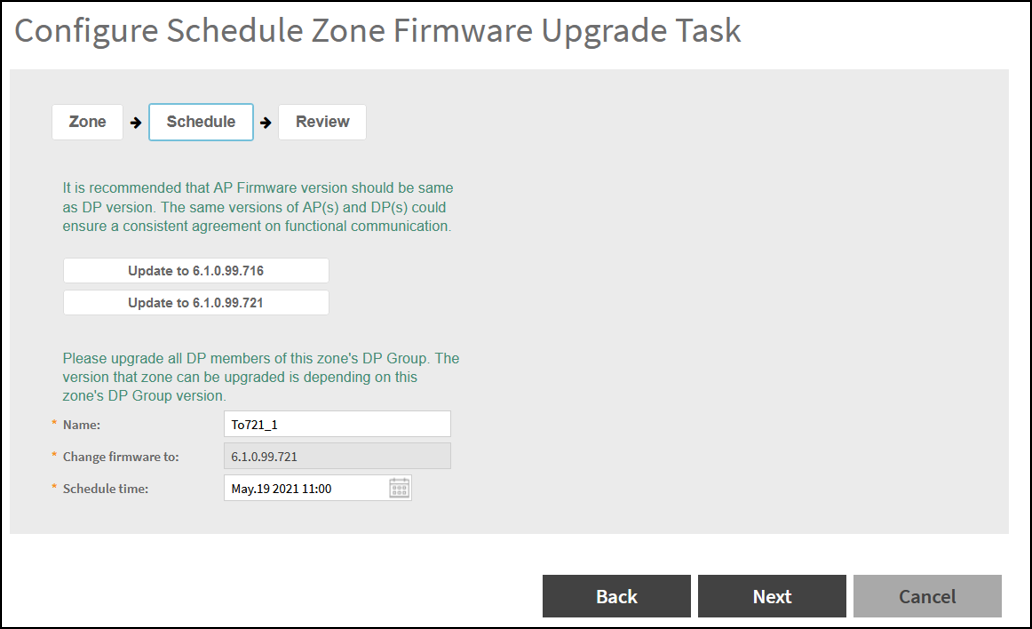

    Create Schedule Zone Firmware Upgrade Task

  6. Complete the following fields:
    1. Name: Enter the name for this task.
    2. Change Firmware to: Select the firmware from the list that is available at the beginning of the Schedule dialog box.
    3. Scheduled time: Select the date and time for the scheduled upgrade to execute.
  7. Click Next to display the Review dialog box.
  8. Review the task and click OK.
    To delete or edit a scheduled AP firmware task, select a task from the list and click Delete or Configure.
Parent topic: AP Upgrade
