AP Client Statistics is a cumulative value per
session and one entry is created per session. The period between connection and
disconnection is referred to as a session. Data is reported every 60 seconds. The
user
interface displays the table and its corresponding graph chart. The two representations
are synchronized and controlled by the search criteria.
For performance reasons,
the total counters per DP for each bin is precalculated.
To view AP Client Statistics:
From the main menu, click The Ruckus AP Client page appears.
Update the parameters as explained in
Historical Client Statistics .
Click Load Data to view
the report in the workplace. Click Export CSV to open or save the report in CSV file
format.
Historical Client Statistics
Field
Description
Your Action
Time Period Indicate the time period for which you want to view
the report.
Move the slider to set the duration.
Zone Name Specifies the zone for which you want to view the
report.
Enter the zone name or choose the zone from the
list.
Client MAC Specifies the MAC.
Enter the client MAC.
Client IP Indicates the client IP.
Enter the client IP address.
MVNO Name Indicates the mobile virtual network operator name.
Choose the MVNO.
AP Client Statistics Report
Attributes contains historical client statistics report based on
the UE session statistics.
AP Client Statistics Report
Attributes
Attribute
Description
Start Indicates the session creation time.
End Indicates the session end time.
Client MAC Indicates the Mac address of the client.
Client IP Address Indicates the IP address of the client.
Core Type Indicates the core network tunnel type.
MVNO Name Indicates the mobile virtual network operator name.
AP
MAC Indicates the Client AP MAC.
SSID Indicates the SSID
Bytes from Client Indicates the number of bytes received from the
client.
Bytes to Client Indicates the number of bytes sent to the client.
Packets from Client Indicates the number of packets received from the
client.
Packets to Client Indicates the number of packets sent to the client.
Dropped Packets from Client Indicates the number of packets dropped from the
client.
Dropped Packets to Client Indicates the number of packets dropped to the
client.

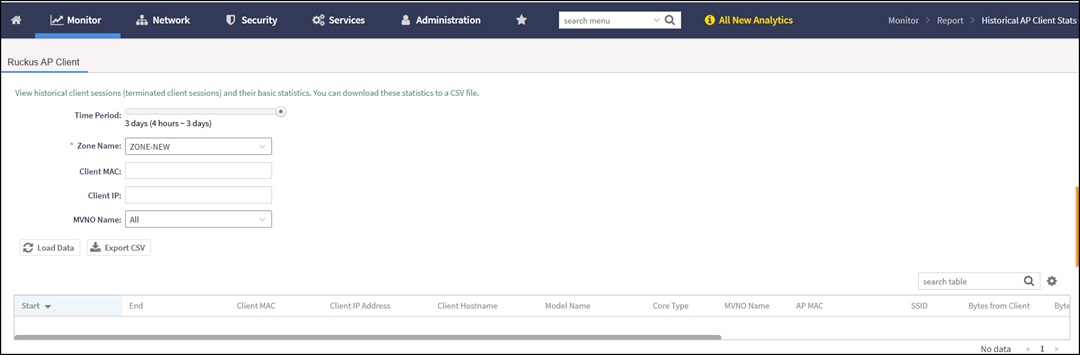

Viewing Client Statistics %20Access%20Points%20and%20Switch%20Management%20Guide%207.1.1_v2_GUID-7A3AFC5F-36A9-49B9-AF4F-34DB745A36EB/Client-Statistics-report=GUID-D496FFBB-D229-4364-80A6-4358B121E185=2=en-US=Low.jpg)
