Viewing Mesh APs
Mesh APs are wireless access points. They
provide consistent transmission of data, any failures do not disrupt the data transmision.
- From the main menu, click the Network tab.
- Click Access Point, the
Access Point page appears. On the upper-right corner of
the page, select the Mesh option from View mode.The below table describes the fields for Mesh AP, and the description.
Access Point Details
Field Name Description SNR Displays the Signal-to-Noise Ratio (SNR), which indicates the signal strength relative to background noise. The SNR value is shown in decibels (dB) and displayed as either the real-time value or the average value over the past 90 seconds. MCS Rate (Tx) (Rx) Displays the median of MCS rate Tx/Rx for both client and AP in there respective pages. These values are updated every 180 seconds (Highscale) and 90 seeconds (Essentials). AP Name Displays the name assigned to the access point AP Model Displays the model name. IP Address Displays the IP address assigned to the wireless client External IP Address Displays the APs external IP address Mesh Role Displays the status of APs Channel Displays the wireless channel (and channel width) that the wireless client is using Traffic (Uplink) Displays the total uplink traffic (in KB/MB/GB/TB) for this client in this session Traffic (Downlink) Displays the total downlink traffic (in KB/MB/GB/TB) for this client in this session Client Count Displays the number of client in theAP Hop Count Displays the number of hop counts

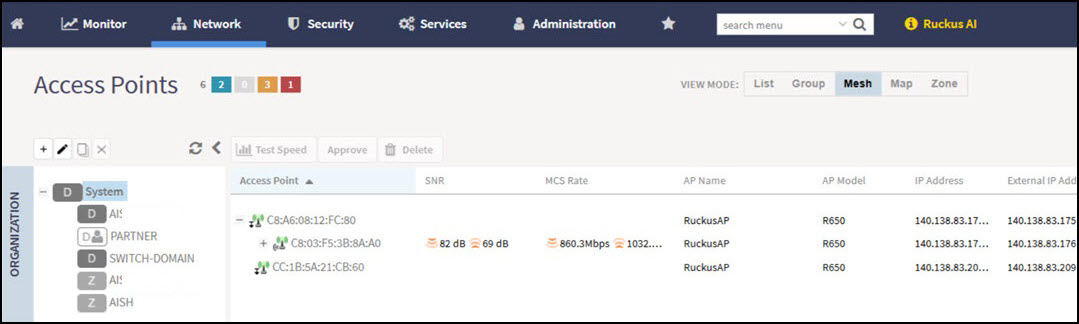

%20Access%20Points%20and%20Switch%20Management%20Guide%207.1.1_v2_GUID-7A3AFC5F-36A9-49B9-AF4F-34DB745A36EB/Viewing_Mesh_APs=GUID-D826BDBA-DFC4-4E75-BB0A-96E857E5B666=2=en-US=Low.jpg "Viewing Mesh APs")
