Copying Switch Group Configuration

You can copy the configuration settings from a working switch to one or multiple new switches.

Note: It is recommended to exercise caution when using the copy configuration option as it replaces the entire configuration of the destination switch.

  1. On the menu, click Network > Wired > Switches to display the Switches window.
  2. In the Organization tab, select a Domain > Switch Group or Switch Group and in the Details tab click Configuration tab.

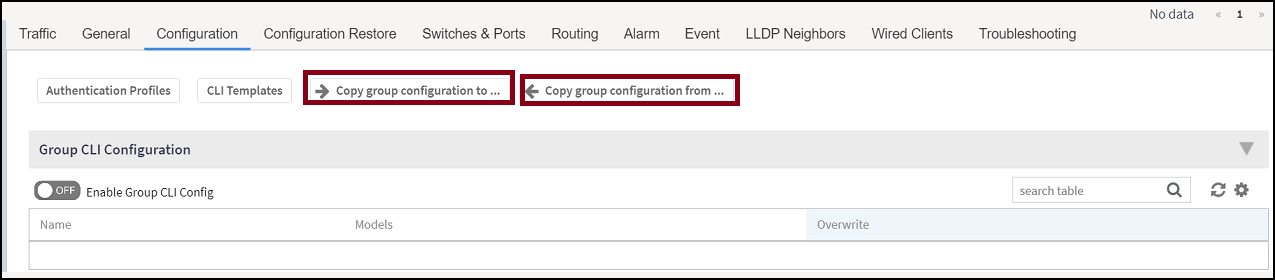

    Switch Group Configuration Tab

    Switch Group Configuration
  3. Click Copy group configuration to icon to display the Copy config To Other Switches dialog box.
  4. Select a Domain > Switch Group or Switch Group to which you want to copy the configuration profile, and click OK.
  5. Click Copy group configuration from icon to to display the Copy config From Another Switch dialog box.
  6. Select a Domain > Switch Group or Switch Group from which you want to get the configuration profile, and click OK.
Parent topic: Configuring the Switches
