Viewing PoE Utilization and Health Status of the Switch
Beginning with SmartZone 5.2.1, the controller provides a view of the PoE utilization in watts, and health status such as the power supply, temperature and fan status of each member in the stack unit.
Complete the following steps to view the health status of each member in the stack unit.- On the menu, click to display the Switches window.
- From the system tree, select a or Switch Group and select the Switch.

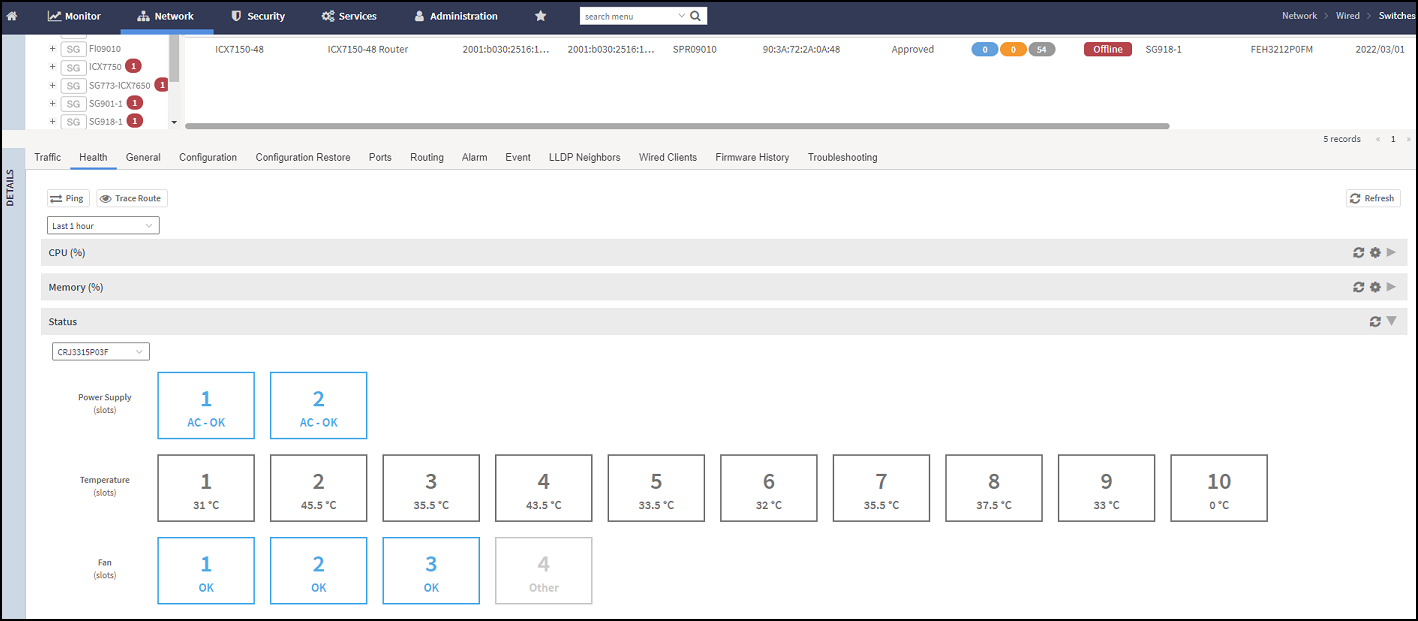

- In the Details section, click the Health tab. In the Status tab you can view the health status, such as the power supply, temperature, and fan status of the stack switch.
- To enable the PoE Utilization,
In the Organization section, click
%20Access%20Points%20and%20Switch%20Management%20Guide%207.1.1_v2_GUID-7A3AFC5F-36A9-49B9-AF4F-34DB745A36EB/icon_gear_25px=GUID-EE4E4C7F-B5C6-4342-A619-13FBFDB42607=1=en-US=Low.png)

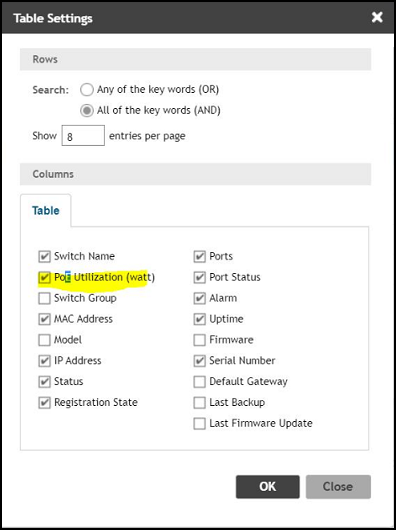

icon at the top right to display the Table Settings
dialog box.
- Select the PoE Utilization (watt) from the table.
- Click OK.

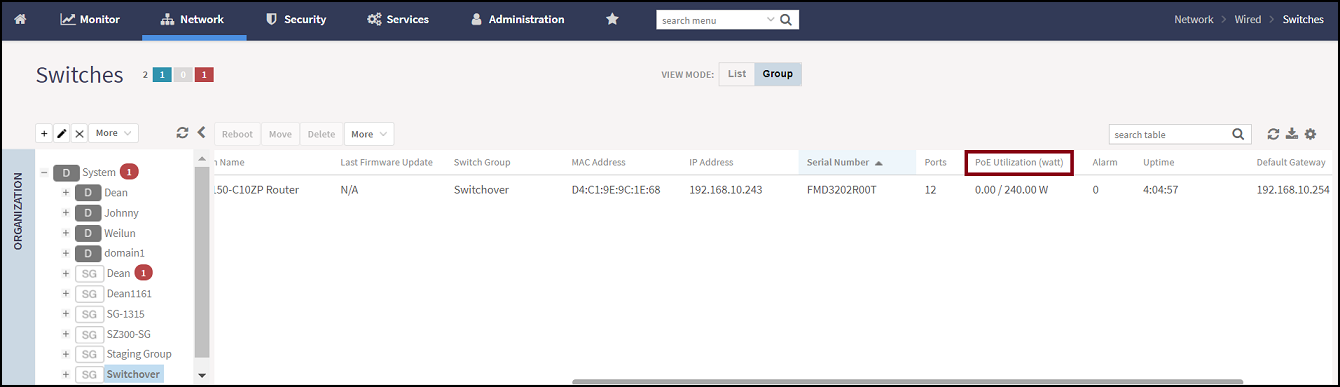

- Select a Switch to view the PoE Utilization (watt) field.
%20Access%20Points%20and%20Switch%20Management%20Guide%207.1.1_v2_GUID-7A3AFC5F-36A9-49B9-AF4F-34DB745A36EB/Health=GUID-5F165ADE-2D6C-40C8-BB44-6C380A5E13AD=2=en-US=Low.png "Viewing the Health Status of Stack Switch")
%20Access%20Points%20and%20Switch%20Management%20Guide%207.1.1_v2_GUID-7A3AFC5F-36A9-49B9-AF4F-34DB745A36EB/PoE%20Utilization-%20Table%20settings=GUID-D7529E3E-0D39-4509-B7B2-72259717EF96=2=en-US=Low.png)
%20Access%20Points%20and%20Switch%20Management%20Guide%207.1.1_v2_GUID-7A3AFC5F-36A9-49B9-AF4F-34DB745A36EB/POE%20Utilization=GUID-31D895A6-8A3B-457A-8F53-AE3ED777F095=2=en-US=Low.png "Viewing the PoE Utilization Field")
