Adjusting the Traffic Analysis Display for Top Clients

Using traffic analysis you can measure the total volume of traffic sent or received by clients.
You can view historical data of the clients for the past hour or the last 24 hours. The chart displays:
  • Bytes—Frequency and number of clients connected to the AP
  • OS Type—Types of OS the associated clients are using
  • Application—Throughput the applications use

To configure the client settings:

  1. From the WLAN area, click setting . .

    The Settings - Clients form displays.

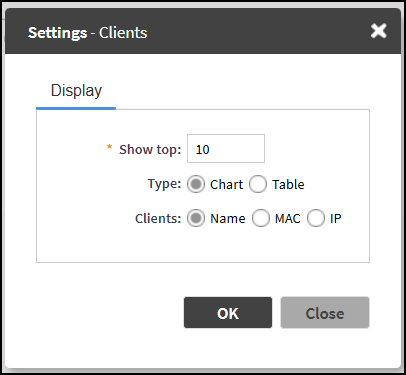

    Settings - Clients

  2. In the Show top box, enter the number of clients for which the traffic must be analyzed. Range: 3 through 20.
  3. Select the Type radio button for the type of display you want to view. The choices are Chart or Table.
  4. Select the WLAN identification option to be displayed. The choices are Name, MAC, or IP.
  5. Click OK.
