Viewing LLDP Neighbor Information
You can view information about the LLDP neighbors such as printers, VOIP devices,
or other user equipment connected to the switch, in addition to the LLDP AP neighbors
connected to the switch. Link layer discovery protocol or LLDP is used to discover
and identify the clients.
- On the menu, click to display the Switches window.
- From the system tree, select a
or Switch Group and select the Switch. In the
Details section, click the LLDP

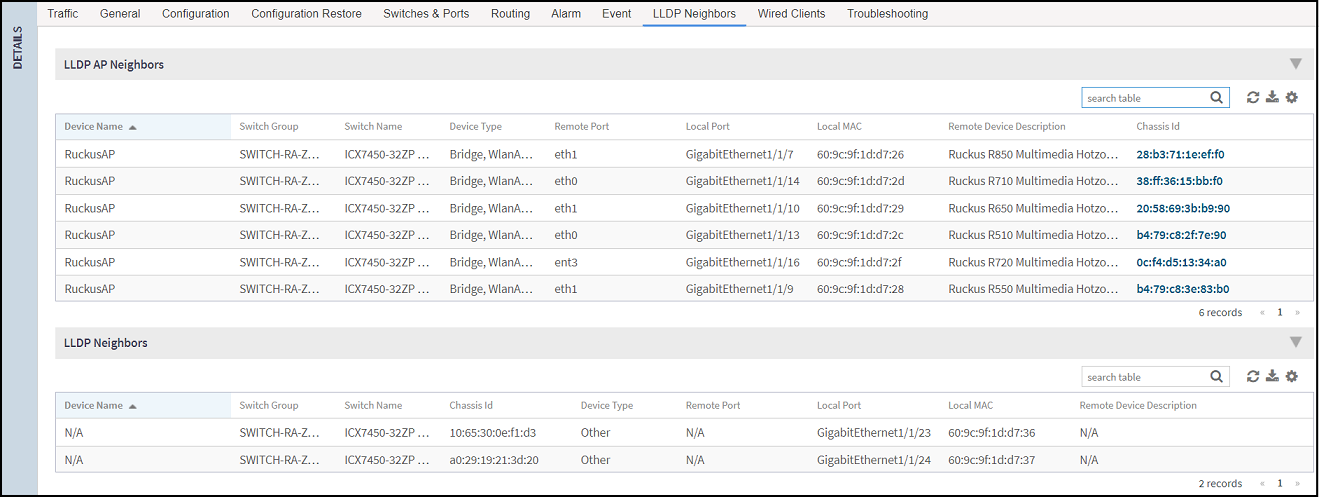

Neighbors tab. The following LLDP Neighbors information for switch is displayed in the LLDP AP Neighbors tab and LLDP Neighbors tab:
- Device Name: Displays the name of the LLDP neighbor or AP neighbor connected to the switch.
- Switch Group: The name of the group to which the switch belongs.
- Switch Name: The name of the switch or group.
- Device Type: Displays the name of the device type (for example, Router).
- Remote Port: Displays the remote port to which the device is connected.
- Local Port: Displays the local port the device is connected to.
- Local MAC: Displays the local MAC address of the device.
- Remote Device Description: displays the name of the remote device.
- Chassis Id: Display the chassis id information.
