Viewing the Configuration History of Switches
Starting with the 7.0 release, you can view the configuration status of a selected switch or a switch group in the Configuration History. You can select a particular record in the Configuration History to view the details such as Switch Name, Switch Serial Number, Start Time, End Time, Status and the command lines that were sent to the switch in the Configuration Details table. In the earlier releases, when you configured a CLI template for multiple switches, only the configuration status for the switch group was displayed in the Configuration tab; the configuration status of the affected switch was not seen.
Complete the following steps to view the Configuration History in the Configuration tab.
- From the main menu, go to
.The Switches page is displayed.

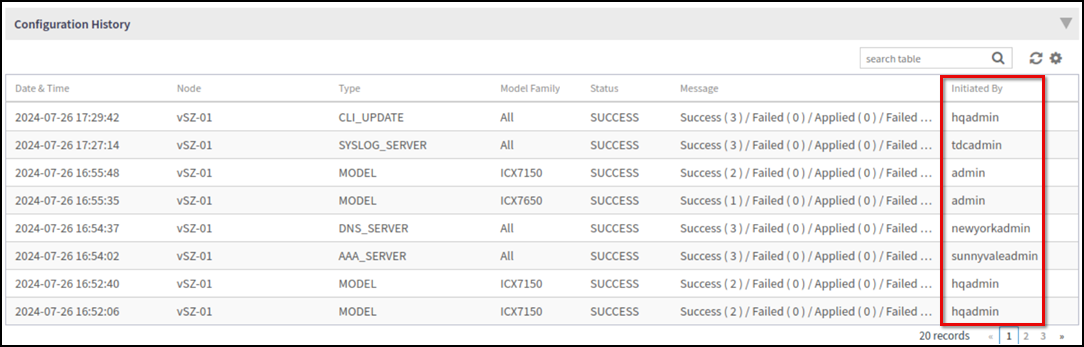

- Select a Switch. In the Details pane, click the Configuration tab, and locate the section titled Configuration History. SmartZone release 7.1 introduces the Initiated By column within the Configuration History table. The feature helps track and identify which administrator account made the configuration change.

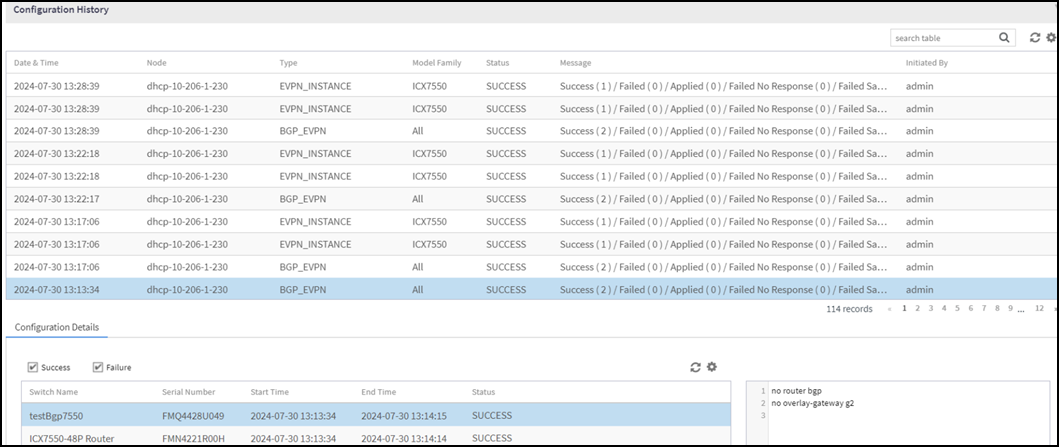

- Select a specific configuration
history that you want to explore, and click on it.The Configuration Details page is displayed, showing information associated with that particular entry.
