Copying Configuration

If you already have a switch configured with the desired set of features, the controller provides an option to load its current configuration, remove unique settings such as hostname and IP addresses, and copy it to one or more target switches. This procedure is applicable only if the target switches do not have any existing configuration.

Complete the following steps to copy configuration to one or more target switches.

  1. From the main menu, go to Network > Wired > Switches.
    The Switches page appears.
  2. Select the switch and then the Configuration tab.

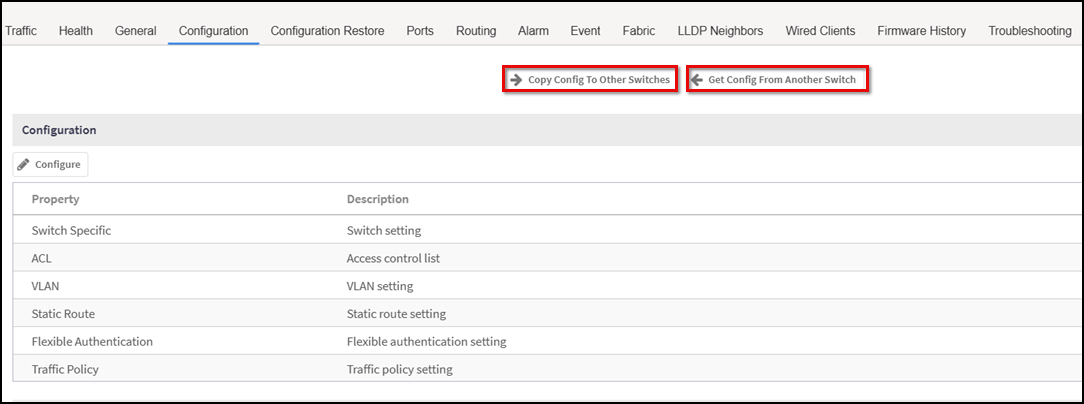

    Switch Group Configuration Tab

    CVopying Configuration
  3. Click Copy Configuration To. This option lets you replace the entire configuration (startup-config) of the selected switch with that of a source switch.
  4. Click Get Configuration From and select the switch or group from which you want to get the configuration profile, and click OK. This option lets you replace the entire configuration of destination switches (one or more) with the configuration of the selected switch.
  5. Edit the CLI commands to remove unique settings like IP settings and hostname and click Next.

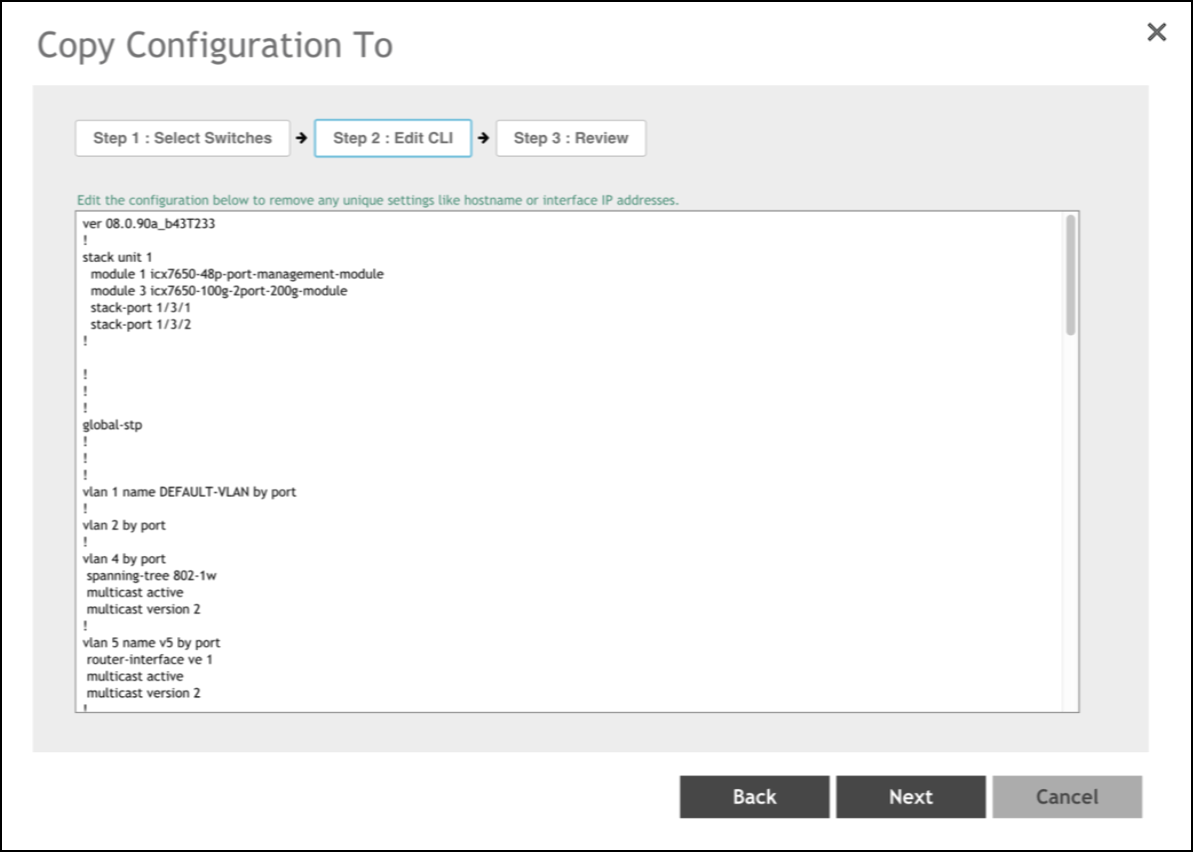

    Copy Configuration To - Edit CLI Page

  6. Review CLI config and click OK.
Parent topic: Switch Level Configuration
