Network Topology
Single AP Topology
A single AP topology is a wireless network setup where all devices connect to one access point. This AP manages all communication and connects devices to a wired network. It's common in small offices or homes.All the APs in the zone get their IP addresses from the WAN router and provides the DHCP or NAT service. For example,AP H510 or H320 is configured as gateway AP (GAP) as a manual port selection, then LAN1 and LAN2 configuration is pushed to Ethernet1 and Ethernet2 ports of the APs instead of Ethernet0 and Ethernet1 ports.

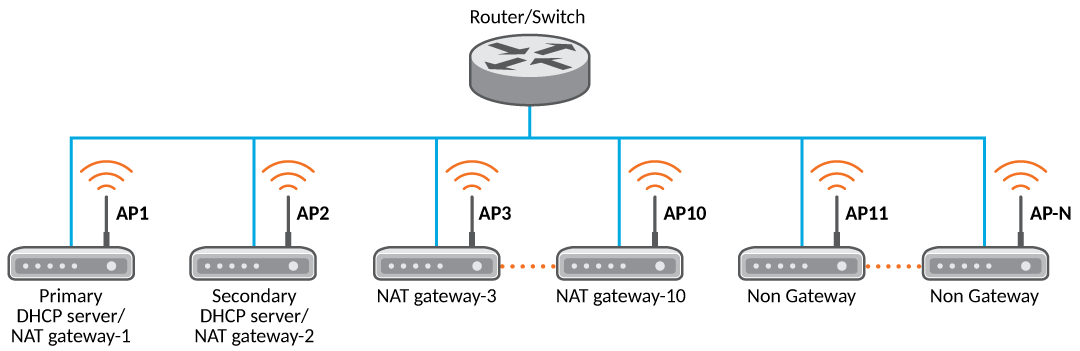

Multiple AP (Flat Network) Topology
A Multiple AP (Flat Network) Topology uses several access points within the same network segment, allowing direct communication among devices, easy setup, and scalability. All the APs in the zone get their IP address from the WAN router and designated APs provide the DHCP or NAT service. A maximum of two APs is selected for DHCP service (primary and secondary) and ten APs for NAT Gateway.
%20Access%20Points%20and%20Switch%20Management%20Guide%207.1.1_v2_GUID-7A3AFC5F-36A9-49B9-AF4F-34DB745A36EB/traffic-multiple-ap-topology=GUID-E54A752A-9043-4011-A312-77C96E813006=2=en-US=Low.png)

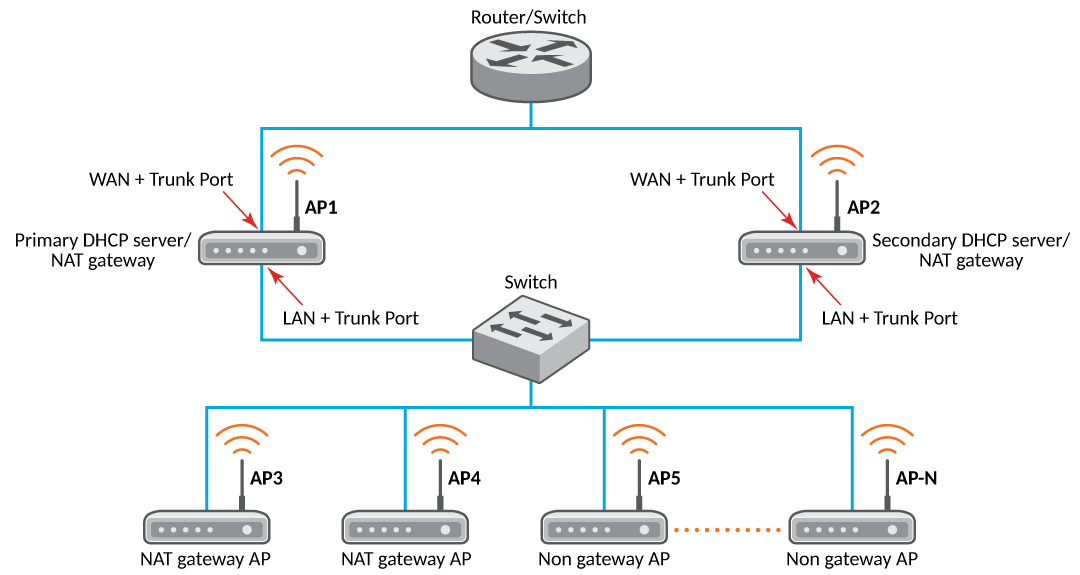

Hierarchical AP Topology
A Hierarchical AP Topology organizes access points into layers; the access layer connects devices, the distribution layer manages traffic, and the core layer provides high-speed backbone connectivity. This structure reduces congestion, improves scalability, and enhances performance, making it ideal for large offices. Designated APs provide the DHCP or NAT service. Gateway APs get the IP address from the WAN router and non-gateway APs get the IP address from the Gateway APs. For example, AP H510 or H320 is configured as GAP by manual port selection, then LAN1 and LAN2 configuration is pushed of the APs to Ethernet1 and Ethernet2 ports instead of Ethernet0 and Ethernet1 ports. If Ethernet0 port needs to be configured, then LAN5 or LAN3 ports need to be configured.
%20Access%20Points%20and%20Switch%20Management%20Guide%207.1.1_v2_GUID-7A3AFC5F-36A9-49B9-AF4F-34DB745A36EB/traffic-hierarchical-ap-topology=GUID-8C673AB7-C4E6-4E89-A7B6-BBA414F9C988=2=en-US=Low.png)
