Verifying the Available AP Capacity Licenses in the Controller

SmartZone provides AP capacity license information in two locations, each providing slightly different amounts of information.

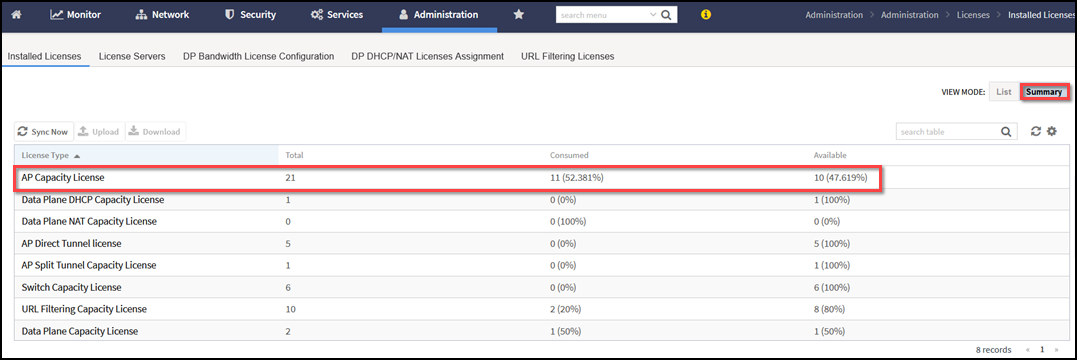

  1. Navigate the main menu, clicking Administration > Licenses > Installed Licenses.
  2. Change the view mode to Summary.
  3. Check the number of avaliable and consumed AP capacity licences.

    Checking the Available AP Capacity Licenses Using the Installed Licenses Menu Option

    To view the number of total and consumed AP capacity licenses, execute the following steps:

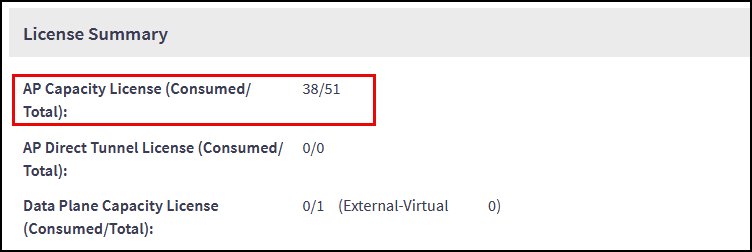

    1. Navigate the main menu, clicking Administration > System > System Info. In the About  tab scroll to the License Summary section to view the tally of consumed AP Capacity licenses out of the total licenses obtained.

    Available AP Capacity Licenses

    Checking the Available AP Capacity Licenses Using the System Info Menu Option

    To check the licensing information from the CLI of the controller, refer to the RUCKUS SmartZone Troubleshooting and Diagnostics Guide

Parent topic: AP and Switch Capacity Licenses
