Navigating the Brand Admin Portal

The Brand Administrator is authorized to create, edit, and delete domain groups and domain administrators, ensuring strong management and control over the domain environment.

GUI Elements

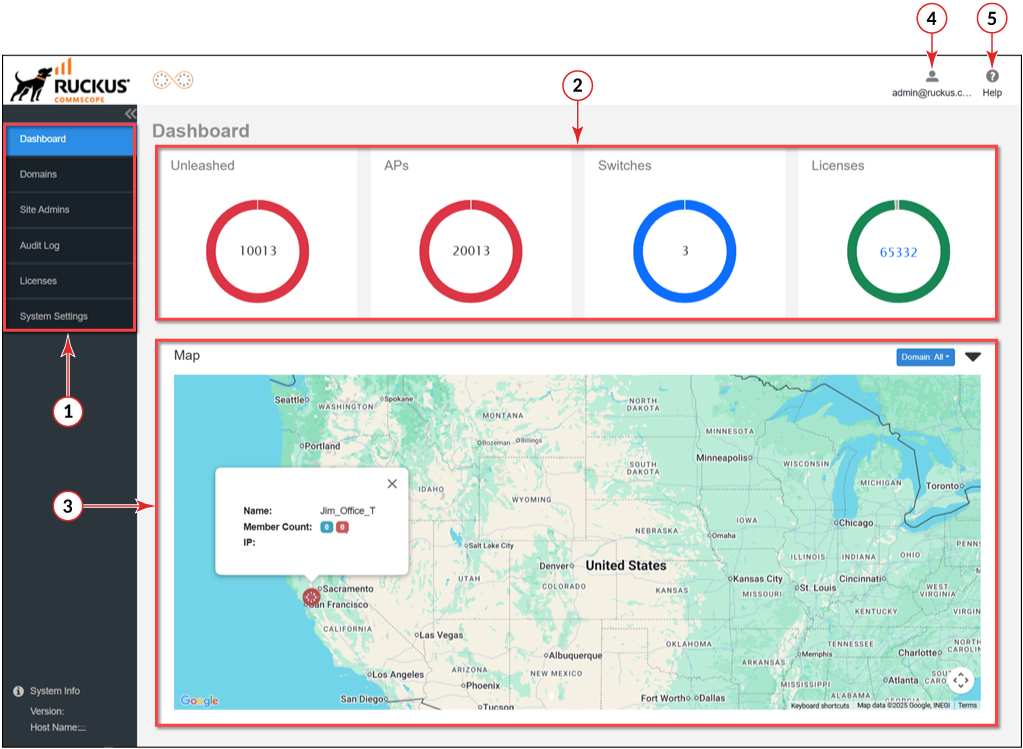

List of GUI Elements

Number Name Description
1 Main menu Use the navigation bar to navigate through the main pages of the portal, which include:
  • Dashboard
  • Domains
  • Site Admins
  • Audit Log
  • Licenses
  • System Settings
2 Content area Displays the number of licensed, not licensed, disconnected, and available licenses for Unleashed networks, Access Points, and RUCKUS ICX switches. Licenses displays the total number of available licenses.
3 Map Displays the locations of your networks across the globe. Hover your cursor on a specific network icon to view a pop-up displaying information about the network.
4 (Account) Allows you to change the password, language, time zone, and to log out of the Brand Admin portal.

Displays the email address of the Brand Admin. When clicked, a menu displays the following options:

  • Change Password: Opens the Update Password page.

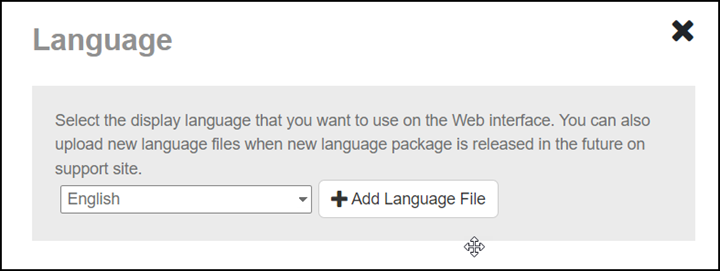

  • Language: Select any language provided in the system settings to be displayed on the web interface. The following languages are installed by default: English, Chinese Simplified, and Chinese Traditional. Alternatively, you may add your own language file.

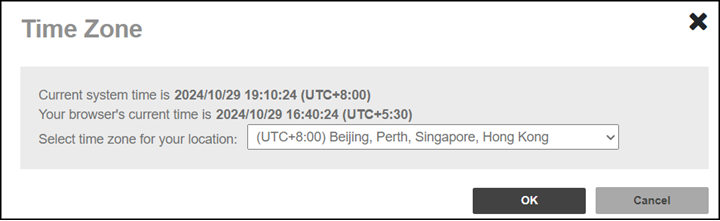

  • Time Zone: Displays the current time for the RMS for Unleashed system as well as for your browser. Here, you can select the time zone for your location.
  • Log Out: Logs you out from RUCKUS Remote Management Services for Unleashed.
5 (Help) Click to view the complete online documentation for RUCKUS Remote Management Services for Unleashed.
Parent topic: Using the Brand Administration Portal
