Topology
The network topologies for vSZ-D deployment on ESXi 6.7 server.

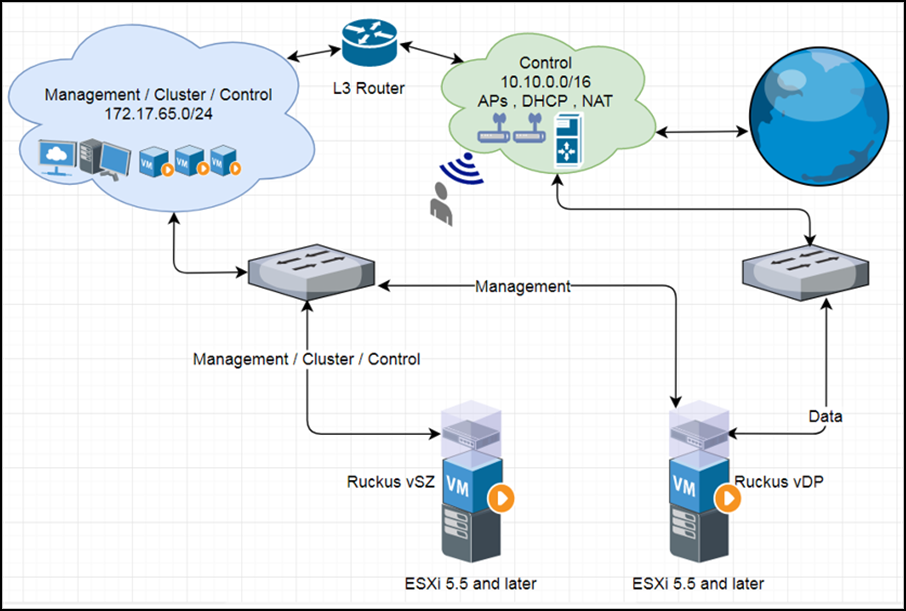

The following are basic topologies for setting up vSZ-D. Based on your requirement you can choose any of the alternatives between one IP domain to three separate domains for deployment.

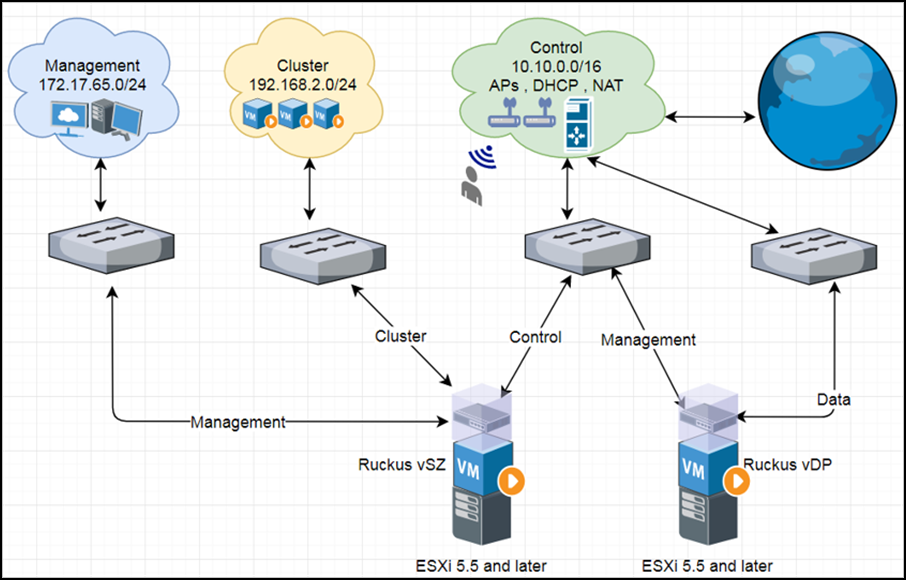

The below topology shows the different IP addresses for the domains.

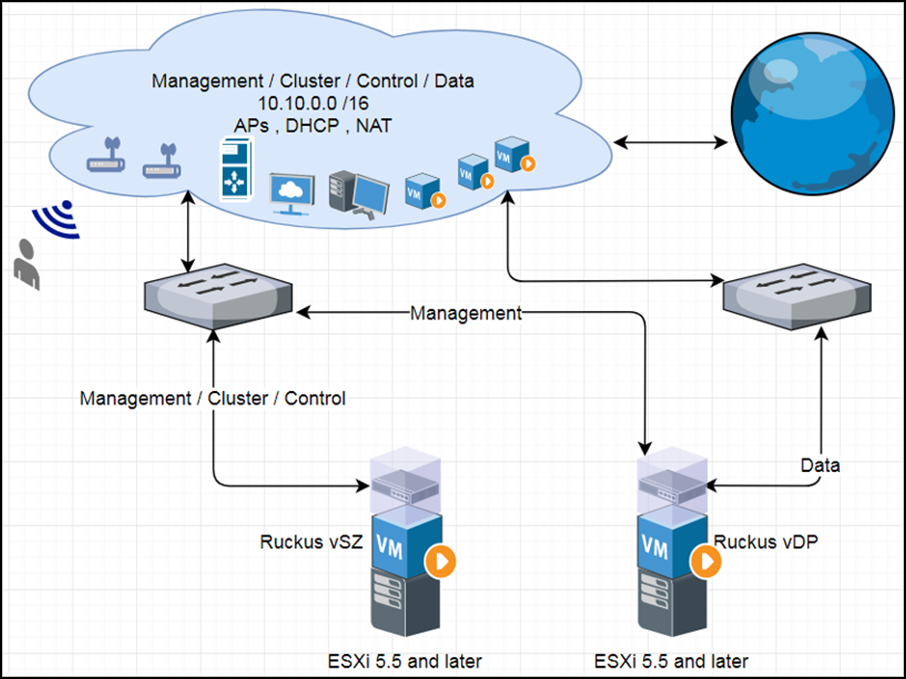

The below topology shows the same IP addresses for the all the interfaces.
