Creating NAT License Assignment

Licensing needs to be created on a per SZ Controller Cluster basis. The default license, CAPACITY-DP-SNAT-DEFAULT, supports 100K NAT sessions.
To create the NAT License assignment:
  1. Go to Administration > Administration > Licenses.
  2. Select the DP DHCP/NAT Licenses Assignment tab.
  3. From the NAT License area, click Create.

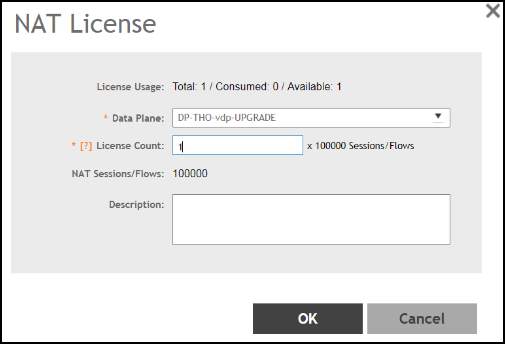

    The NAT License form appears.

    NAT License Assignment

    • License Usage: Lists the details of license consumption and availability.
    • Data Plane: Select the data plane from the drop-down. To remove the Data Plane from the NAT license assignment, select Clear.
    • License Count: Enter the number of license for the data plane. Range: 1 through 20.
    • NAT Sessions/Flows: Lists the number of NAT sessions/flows.
    • Description: Enter a short description about the license assignment.
  4. Click OK.
You have created the NAT license assignment.

Note: To edit or remove the license assignment on the data plane, select the assignment from the list and click Configure or Delete respectively.
