Enabling the LACP Support for a Zone

Perform the following procedure to enable the LACP support for a zone.
  1. From the main menu, go to Network > Wireless, click Access Points.
    The Access Points page is displayed.

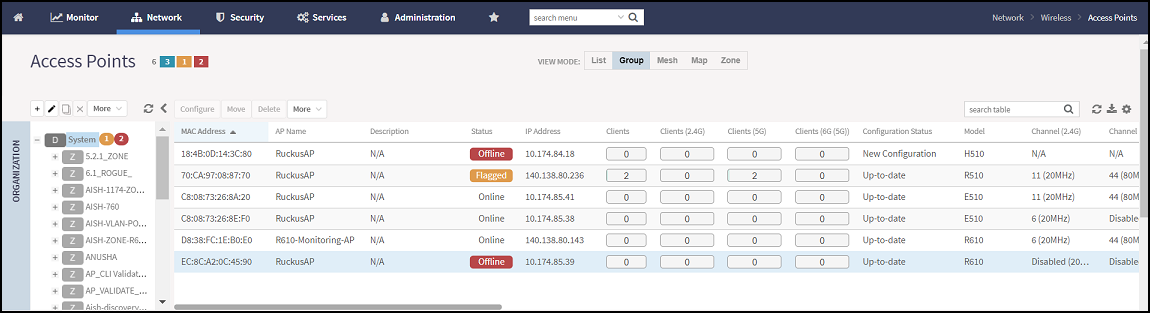

    Viewing the Access Points

    Access Point Page
  2. Select a zone and click .
    The Configure Group page is displayed.

    Enabling LACP Support for an AP R750

    Enabling LACP Support for a Zone
  3. Enter the zone name.
  4. Under Configuration, select R720 from the Select an AP Model list.
  5. Under General Options, enable LACP.
    Note: By default, LACP is disabled.
    Note: To support the LACP and LAG feature on RUCKUS APs, ensure that the correct PoE mode is selected to bring up LAN1,2 ports. For example, PoE-at+ for R720, PoE-at for R710. The LACP and LAG UL throughput is limited to around 1Gbps.
  6. Click OK.
Parent topic: Link Aggregration Protocol (LACP)
